Festool AT 65 EB/1 / 489892 Spare Parts

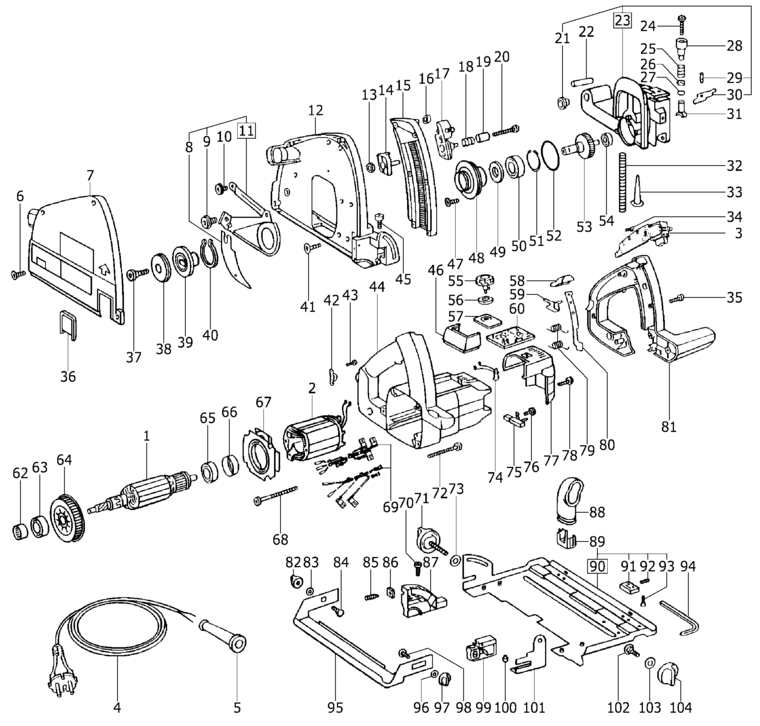

An exploded diagram and spare parts listing for the Festool AT 65 EB/1 / 489892

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-489530.A2 489530	£122.03	£146.44
2 - NO LONGER AVAILABLE FSP-00000.A4749 00000	-
3 - BRAKE MODULE FSP-489831.A4 489831	£72.55	£87.06
4 - CABLE EU FSP-457408.A13 457408	£28.95	£34.74
5 - CABLE CONDUIT FSP-432436.A14 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 12 FSP-219053.A7 219053	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A4750 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A4751 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A4752 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A4753 00000	-
11 - HOLDER FSP-485488.A1 485488	£36.81	£44.17
12 - NO LONGER AVAILABLE FSP-00000.A4754 00000	-
13 - HEXAGON NUT M5 FSP-200717.A5 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A4755 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A4756 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A4757 00000	-
17 - DEPTH STOP FSP-445503.A10 445503	£2.00	£2.40
18 - PRESSURE SPRING FSP-201134.A29 201134	£2.00	£2.40
19 - KNOB FSP-439956.A15 439956	-
20 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A16 203740	£2.00	£2.40
21 - FLANGE BUSHING FSP-439331.A23 439331	£2.00	£2.40
22 - CYLINDER PIN FSP-443877.A1 443877	£1.75	£2.10
23 - GEAR HOUSING FSP-485486.A7 485486	£68.36	£82.03
24 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A38 228591	£2.00	£2.40
25 - PRESSURE SPRING FSP-201134.A30 201134	£2.00	£2.40
26 - SUPPORTING RING FSP-444142.A14 444142	£2.00	£2.40
27 - O-RING FSP-444234.A22 444234	£2.00	£2.40
28 - KNOB FSP-440441.A25 440441	£2.87	£3.44
29 - SLEEVE 5 X 12 MM FSP-228692.A41 228692	£2.00	£2.40
30 - NO LONGER AVAILABLE FSP-00000.A4746 00000	-
31 - BOLT FSP-444114.A29 444114	£8.56	£10.27
32 - NO LONGER AVAILABLE FSP-00000.A4747 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A4748 00000	-
34 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A20 228718	£2.00	£2.40
35 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A30 228580	£2.00	£2.40
36 - LENS FSP-438943.A24 438943	£3.50	£4.20
37 - CHEESE HEAD SCREW M8 X 15 FSP-443318.A14 443318	£5.05	£6.06
38 - COUNTER FLANGE FSP-486688.A1 486688	£50.70	£60.84
39 - FLANGE FSP-486687.A7 486687	-
40 - NO LONGER AVAILABLE FSP-00000.A4745 00000	-
41 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A22 219102	£2.00	£2.40
42 - CABLE CLAMP FSP-439288.A20 439288	£2.00	£2.40
43 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A44 228663	£2.00	£2.40
44 - MOTOR HOUSING FSP-446283.A7 446283	-
45 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A21 228617	£2.00	£2.40
46 - COVER FSP-438607.A43 438607	£3.68	£4.42
47 - FLAT HEAD SCREW M4 X 10 FSP-228736.A47 228736	£2.00	£2.40
48 - NO LONGER AVAILABLE FSP-00000.A4744 00000	-
49 - SPRING WASHER FSP-444235.A17 444235	£2.00	£2.40
50 - BALL BEARING FSP-789595.A12 789595	£8.79	£10.55
51 - NO LONGER AVAILABLE FSP-00000.A4743 00000	-
52 - O-RING FSP-442413.A20 442413	£2.00	£2.40
53 - GEAR SHAFT FSP-441035.A2 441035	£51.77	£62.12
54 - BALL BEARING FSP-228715.A8 228715	£4.72	£5.66
55 - ADJUSTING KNOB FSP-440991.A13 440991	£5.24	£6.29
56 - SEALING RING FSP-438509.A7 438509	£2.00	£2.40
57 - LENS FSP-438198.A37 438198	£2.00	£2.40
58 - KNOB FSP-434341.A15 434341	£2.82	£3.39
59 - SLIDE FSP-451680.A11 451680	£2.00	£2.40
60 - NO LONGER AVAILABLE FSP-00000.A4759 00000	-
62 - NEEDLE SLEEVE FSP-469074.A10 469074	£3.88	£4.65
63 - BALL BEARING FSP-228798.A18 228798	£5.38	£6.45
64 - FAN FSP-445205.A7 445205	£9.73	£11.68
65 - BALL BEARING FSP-228559.A33 228559	£4.06	£4.87
66 - BEARING RING FSP-438613.A52 438613	£2.00	£2.40
67 - AIR GUIDE WASHER FSP-457657.A13 457657	£2.00	£2.40
68 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A23 442415	£2.00	£2.40
69 - NO LONGER AVAILABLE FSP-00000.A4758 00000	-
70 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A11 228733	£2.00	£2.40
71 - ROTARY KNOB FSP-482098.A8 482098	£2.00	£2.40
72 - CHEESE HEAD SCREW FSP-203780.A8 203780	£2.00	£2.40
73 - WASHER 6.4 MM FSP-228546.A173 228546	£2.00	£2.40
74 - COIL SHELL FSP-486744.A0 486744	£16.95	£20.34
75 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A25 488915	£19.04	£22.85
76 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A17 219047	£2.00	£2.40
77 - CAP FSP-439824.A12 439824	£8.68	£10.42
78 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A29 228580	£2.00	£2.40
79 - TORSION SPRING FSP-439973.A20 439973	£2.00	£2.40
80 - LEVER FSP-439890.A23 439890	£3.45	£4.14
81 - COVER FSP-440102.A21 440102	£24.26	£29.11
82 - ROTARY KNOB M6 FSP-440712.A7 440712	£2.00	£2.40
83 - WASHER FSP-402935.A15 402935	£2.00	£2.40
84 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A7 228592	£2.00	£2.40
85 - THREADED PIN M4 X 12 FSP-203387.A3 203387	£2.00	£2.40
86 - SQUARE NUT M4 FSP-773030.A30 773030	£2.00	£2.40
87 - SWIVELING SEGMENT FSP-442067.A0 442067	£5.31	£6.37
88 - CHIP DEFLECTOR FSP-439696.A57 439696	£8.94	£10.73
89 - ADJUSTING PIECE FSP-442809.A5 442809	£2.00	£2.40
90 - PLATE FSP-486636.A2 486636	£79.82	£95.79
91 - ADJUSTING PIECE FSP-443971.A13 443971	£2.00	£2.40
92 - THREADED PIN M6 X 12 FSP-442597.A50 442597	£2.00	£2.40
93 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A55 400014	£2.00	£2.40
94 - PIN KEY FSP-439274.A43 439274	£3.56	£4.27
95 - EXTENSION TABLE FSP-441841.A0 441841	£18.84	£22.61
96 - WASHER FSP-402935.A14 402935	£2.00	£2.40
97 - ROTARY KNOB M6 FSP-440712.A6 440712	£2.00	£2.40
98 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A8 228592	£2.00	£2.40
99 - SWIVELING SEGMENT FSP-442066.A15 442066	£5.68	£6.82
100 - FLANGE BUSHING FSP-442068.A15 442068	-
101 - FLAP FSP-442284.A6 442284	£7.87	£9.44
102 - ROUND-HEAD SCREW FSP-444362.A21 444362	£2.00	£2.40
103 - WASHER 6.4 MM FSP-228546.A174 228546	£2.00	£2.40
104 - ROTARY KNOB FSP-440713.A78 440713	£2.64	£3.17
