Festool AT 65 EB 230V / 486756 Spare Parts

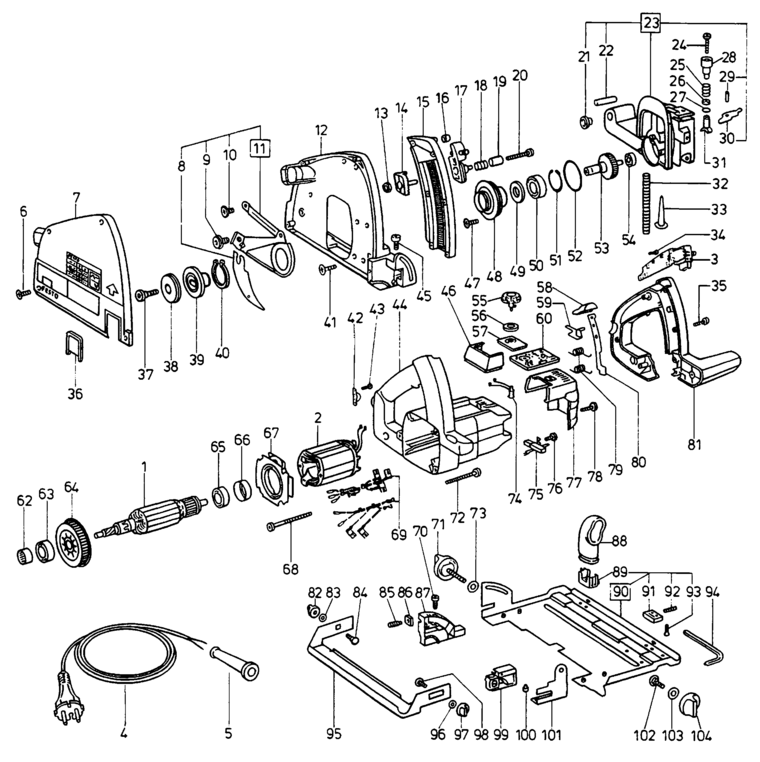

An exploded diagram and spare parts listing for the Festool AT 65 EB 230V / 486756

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-489530.A1 489530	£122.03	£146.44
2 - NO LONGER AVAILABLE FSP-00000.A987 00000	-
3 - BRAKE MODULE FSP-489831.A9 489831	£72.55	£87.06
4 - CABLE EU FSP-457408.A2 457408	£28.95	£34.74
5 - CABLE CONDUIT FSP-432436.A75 432436	£2.00	£2.40
6 - FLAT HEAD SCREW M4 X 10 FSP-228736.A18 228736	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A988 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A989 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A990 00000	-
10 - NO LONGER AVAILABLE FSP-00000.A991 00000	-
11 - HOLDER FSP-485488.A8 485488	£36.81	£44.17
12 - NO LONGER AVAILABLE FSP-00000.A983 00000	-
13 - HEXAGON NUT M5 FSP-200717.A44 200717	£2.00	£2.40
14 - NO LONGER AVAILABLE FSP-00000.A984 00000	-
15 - NO LONGER AVAILABLE FSP-00000.A985 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A986 00000	-
17 - DEPTH STOP FSP-445503.A22 445503	£2.00	£2.40
18 - PRESSURE SPRING FSP-201134.A57 201134	£2.00	£2.40
19 - KNOB FSP-439956.A6 439956	-
20 - RAISED-HEAD SCREW M5 X 40 FSP-203740.A6 203740	£2.00	£2.40
21 - FLANGE BUSHING FSP-439331.A3 439331	£2.00	£2.40
22 - CYLINDER PIN FSP-443877.A6 443877	£1.75	£2.10
23 - GEAR HOUSING FSP-485486.A1 485486	£68.36	£82.03
24 - RAISED-HEAD SCREW M4 X 40 FSP-228591.A3 228591	£2.00	£2.40
25 - PRESSURE SPRING FSP-201134.A58 201134	£2.00	£2.40
26 - SUPPORTING RING FSP-444142.A29 444142	£2.00	£2.40
27 - O-RING FSP-444234.A33 444234	£2.00	£2.40
28 - KNOB FSP-440441.A34 440441	£2.87	£3.44
29 - SLEEVE 5 X 12 MM FSP-228692.A3 228692	£2.00	£2.40
30 - NO LONGER AVAILABLE FSP-00000.A982 00000	-
31 - BOLT FSP-444114.A14 444114	£8.56	£10.27
32 - NO LONGER AVAILABLE FSP-00000.A980 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A981 00000	-
34 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A27 228718	£2.00	£2.40
35 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A99 228580	£2.00	£2.40
36 - LENS FSP-438943.A37 438943	£3.50	£4.20
37 - CHEESE HEAD SCREW M8 X 15 FSP-443318.A3 443318	£5.05	£6.06
38 - COUNTER FLANGE FSP-486688.A7 486688	£50.70	£60.84
39 - FLANGE FSP-486687.A1 486687	-
40 - NO LONGER AVAILABLE FSP-00000.A979 00000	-
41 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A57 219102	£2.00	£2.40
42 - CABLE CLAMP FSP-439288.A111 439288	£2.00	£2.40
43 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A113 228663	£2.00	£2.40
44 - MOTOR HOUSING FSP-446283.A0 446283	-
45 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A49 228617	£2.00	£2.40
46 - COVER FSP-438607.A11 438607	£3.68	£4.42
47 - FLAT HEAD SCREW M4 X 10 FSP-228736.A17 228736	£2.00	£2.40
48 - NO LONGER AVAILABLE FSP-00000.A977 00000	-
49 - SPRING WASHER FSP-444235.A10 444235	£2.00	£2.40
50 - BALL BEARING FSP-789595.A40 789595	£8.79	£10.55
51 - NO LONGER AVAILABLE FSP-00000.A976 00000	-
52 - O-RING FSP-442413.A7 442413	£2.00	£2.40
53 - GEAR SHAFT FSP-441035.A10 441035	£51.77	£62.12
54 - BALL BEARING FSP-228715.A27 228715	£4.72	£5.66
55 - ADJUSTING KNOB FSP-440991.A33 440991	£5.24	£6.29
56 - SEALING RING FSP-438509.A38 438509	£2.00	£2.40
57 - LENS FSP-438198.A19 438198	£2.00	£2.40
58 - KNOB FSP-434341.A1 434341	£2.82	£3.39
59 - SLIDE FSP-451680.A16 451680	£2.00	£2.40
60 - NO LONGER AVAILABLE FSP-00000.A978 00000	-
62 - NEEDLE SLEEVE FSP-469074.A3 469074	£3.88	£4.65
63 - BALL BEARING FSP-228798.A61 228798	£5.38	£6.45
64 - FAN FSP-445205.A14 445205	£9.73	£11.68
65 - BALL BEARING FSP-228559.A59 228559	£4.06	£4.87
66 - BEARING RING FSP-438613.A30 438613	£2.00	£2.40
67 - AIR GUIDE WASHER FSP-457657.A1 457657	£2.00	£2.40
68 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A39 442415	£2.00	£2.40
69 - CABLE HARNESS EU FSP-487126.A1 487126	£8.56	£10.27
69 - CABLE HARNESS EU FSP-487128.A4 487128	£26.86	£32.23
70 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A77 228733	£2.00	£2.40
71 - ROTARY KNOB FSP-482098.A4 482098	£2.00	£2.40
72 - CHEESE HEAD SCREW FSP-203780.A42 203780	£2.00	£2.40
73 - WASHER 6.4 MM FSP-228546.A68 228546	£2.00	£2.40
74 - COIL SHELL FSP-486744.A23 486744	£16.95	£20.34
75 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A49 488915	£19.04	£22.85
76 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A82 219047	£2.00	£2.40
77 - CAP FSP-439824.A31 439824	£8.68	£10.42
78 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A101 228580	£2.00	£2.40
79 - TORSION SPRING FSP-439973.A11 439973	£2.00	£2.40
80 - LEVER FSP-439890.A24 439890	£3.45	£4.14
81 - COVER FSP-440102.A24 440102	£24.26	£29.11
82 - ROTARY KNOB M6 FSP-440712.A12 440712	£2.00	£2.40
83 - WASHER FSP-402935.A25 402935	£2.00	£2.40
84 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A10 228592	£2.00	£2.40
85 - THREADED PIN M4 X 12 FSP-203387.A0 203387	£2.00	£2.40
86 - SQUARE NUT M4 FSP-773030.A29 773030	£2.00	£2.40
87 - SWIVELING SEGMENT FSP-442067.A3 442067	£5.31	£6.37
88 - CHIP DEFLECTOR FSP-439696.A58 439696	£8.94	£10.73
89 - ADJUSTING PIECE FSP-442809.A0 442809	£2.00	£2.40
90 - PLATE FSP-486636.A3 486636	£79.82	£95.79
91 - ADJUSTING PIECE FSP-443971.A10 443971	£2.00	£2.40
92 - THREADED PIN M6 X 12 FSP-442597.A55 442597	£2.00	£2.40
93 - FLAT HEAD SCREW 4.0 X 10 MM FSP-400014.A54 400014	£2.00	£2.40
94 - PIN KEY FSP-439274.A45 439274	£3.56	£4.27
95 - EXTENSION TABLE FSP-441841.A3 441841	£18.84	£22.61
96 - WASHER FSP-402935.A24 402935	£2.00	£2.40
97 - ROTARY KNOB M6 FSP-440712.A13 440712	£2.00	£2.40
98 - ROUND-HEAD SCREW M6 X 12 FSP-228592.A9 228592	£2.00	£2.40
99 - SWIVELING SEGMENT FSP-442066.A12 442066	£5.68	£6.82
100 - FLANGE BUSHING FSP-442068.A12 442068	-
101 - FLAP FSP-442284.A9 442284	£7.87	£9.44
102 - ROUND-HEAD SCREW FSP-444362.A23 444362	£2.00	£2.40
103 - WASHER 6.4 MM FSP-228546.A161 228546	£2.00	£2.40
104 - ROTARY KNOB FSP-440713.A75 440713	£2.64	£3.17
