Festool AP 85 EB 230V / 489561 Spare Parts

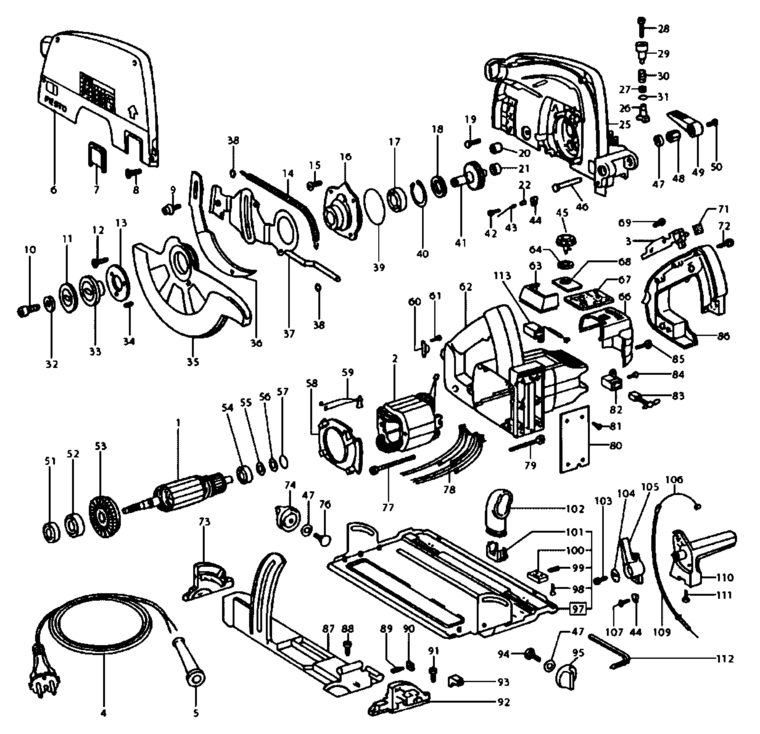

An exploded diagram and spare parts listing for the Festool AP 85 EB 230V / 489561

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493791.A6 493791	£162.98	£195.58
2 - FIELD ASSEMBLY FSP-495626.A7 495626	£115.87	£139.04
3 - BRAKE MODULE FSP-489830.A1 489830	£69.05	£82.86
4 - POWER CABLE. AUS FSP-637685.A8 637685	£22.71	£27.25
5 - CABLE CONDUIT FSP-432436.A89 432436	£2.00	£2.40
6 - COVER FSP-638721.A10 638721	£41.54	£49.85
7 - LENS FSP-438943.A54 438943	£3.50	£4.20
8 - FLAT HEAD SCREW M4 X 16 FSP-228732.A10 228732	£2.00	£2.40
9 - CHEESE HEAD SCREW M6 X 9 FSP-440506.A15 440506	£8.48	£10.18
10 - CHEESE HEAD SCREW M8 X 25 FSP-200693.A7 200693	£2.00	£2.40
11 - COUNTER FLANGE FSP-441732.A2 441732	£15.78	£18.93
12 - FLAT HEAD SCREW M4 X 8 FSP-219043.A34 219043	£2.00	£2.40
13 - WASHER FSP-435057.A4 435057	£8.18	£9.81
14 - DRAW SPRING FSP-442275.A12 442275	£8.68	£10.42
15 - FLAT HEAD SCREW M4 X 12 FSP-219053.A12 219053	£2.00	£2.40
16 - BEARING COVER FSP-439907.A2 439907	£30.82	£36.98
17 - BALL BEARING FSP-789775.A7 789775	£9.65	£11.58
18 - SHAFT SEAL RING FSP-440009.A14 440009	£16.98	£20.37
19 - SCREW M8 X 25 FSP-400553.A9 400553	£2.00	£2.40
20 - BUFFER FSP-714434.A6 714434	£4.24	£5.09
21 - NEEDLE BUSHING FSP-410229.A10 410229	£9.24	£11.09
22 - RING FSP-441219.A2 441219	£6.39	£7.67
25 - NO LONGER AVAILABLE FSP-00000.A2979 00000	-
26 - BOLT FSP-440085.A10 440085	£16.28	£19.53
27 - FELT WASHER FSP-440546.A7 440546	£2.00	£2.40
28 - RAISED-HEAD SCREW M4 X 35 FSP-228660.A11 228660	£2.00	£2.40
29 - KNOB FSP-440441.A55 440441	£2.87	£3.44
30 - PRESSURE SPRING FSP-201134.A42 201134	£2.00	£2.40
31 - O-RING FSP-400013.A11 400013	£2.00	£2.40
32 - WASHER 8.4 MM FSP-228527.A13 228527	£2.00	£2.40
33 - FLANGE FSP-441733.A22 441733	-
34 - THREADED PIN M4 X 6 FSP-224954.A7 224954	£2.00	£2.40
35 - PENDULUM GUARD FSP-442276.A5 442276	£73.57	£88.28
36 - SPACER WEDGE FSP-439887.A7 439887	£55.18	£66.22
37 - NO LONGER AVAILABLE FSP-00000.A2978 00000	-
38 - TOOTH RING FSP-234883.A10 234883	£2.00	£2.40
39 - O-RING FSP-200973.A6 200973	£2.00	£2.40
40 - SNAP RING FSP-205454.A15 205454	£2.48	£2.97
41 - GEAR SHAFT FSP-445440.A1 445440	£58.01	£69.61
42 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A90 219075	£2.00	£2.40
43 - STRIPPER FSP-441218.A15 441218	£4.82	£5.78
44 - CLIP FSP-440685.A12 440685	£4.18	£5.02
45 - ADJUSTING KNOB FSP-440991.A43 440991	£5.24	£6.29
46 - BOLT FSP-439903.A15 439903	£7.95	£9.54
47 - WASHER 8.4 MM FSP-219049.A20 219049	£2.00	£2.40
48 - NUT FSP-439911.A14 439911	£5.12	£6.15
49 - LEVER FSP-439922.A13 439922	£2.00	£2.40
50 - FLAT HEAD SCREW M5 X 10 FSP-219044.A7 219044	£2.00	£2.40
51 - BALL BEARING FSP-228559.A84 228559	£4.06	£4.87
52 - BALL BEARING FSP-400065.A22 400065	£8.56	£10.27
53 - FAN FSP-483808.A10 483808	£23.53	£28.24
54 - BALL BEARING FSP-789573.A12 789573	£7.76	£9.31
55 - SPRING DISC FSP-411613.A8 411613	£2.00	£2.40
56 - SHIM RING FSP-434608.A11 434608	£2.00	£2.40
57 - COVER FSP-441327.A15 441327	£2.00	£2.40
58 - AIR GUIDE WASHER FSP-438048.A12 438048	£2.82	£3.39
59 - COIL SHELL FSP-486780.A13 486780	£42.13	£50.56
60 - CABLE CLAMP FSP-431899.A19 431899	£2.00	£2.40
61 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A147 228663	£2.00	£2.40
62 - MOTOR HOUSING FSP-637525.A1 637525	£41.96	£50.35
63 - COVER FSP-637528.A13 637528	£7.99	£9.59
64 - SEALING RING FSP-438509.A52 438509	£2.00	£2.40
66 - CAP FSP-438172.A5 438172	£6.98	£8.38
67 - CONTROL ELECTRONICS 230 V FSP-488601.A1 488601	£83.39	£100.07
68 - LENS FSP-438198.A1 438198	£2.00	£2.40
69 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A47 228718	£2.00	£2.40
71 - PLATE FSP-410394.A11 410394	£2.00	£2.40
72 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A65 228580	£2.00	£2.40
73 - NO LONGER AVAILABLE FSP-00000.A2969 00000	-
74 - ROTARY KNOB M8 FSP-483162.A22 483162	£5.30	£6.36
76 - ROUND-HEAD SCREW M8 X 35 FSP-215007.A7 215007	£2.00	£2.40
77 - RAISED-HEAD SCREW 5.0 X 70 MM FSP-228709.A9 228709	£2.00	£2.40
78 - NO LONGER AVAILABLE FSP-00000.A2970 00000	-
79 - CHEESE HEAD SCREW FSP-203780.A63 203780	£2.00	£2.40
80 - COVER FSP-440010.A1 440010	£4.81	£5.77
81 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A33 219071	£2.00	£2.40
82 - BRUSH HOLDER FSP-482182.A12 482182	£17.85	£21.42
83 - BRUSH (PAIR) 230V FSP-488920.A14 488920	£18.09	£21.71
84 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A81 228567	£2.00	£2.40
85 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-228580.A64 228580	£2.00	£2.40
86 - NO LONGER AVAILABLE FSP-00000.A2968 00000	-
87 - SUPPORT FSP-439892.A16 439892	£48.82	£58.58
88 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A39 228617	£2.00	£2.40
89 - THREADED PIN M4 X 8 FSP-229949.A11 229949	£2.00	£2.40
90 - SQUARE NUT M4 FSP-773030.A5 773030	£2.00	£2.40
91 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A47 228733	£2.00	£2.40
92 - NO LONGER AVAILABLE FSP-00000.A2967 00000	-
93 - CLAMPING ELEMENT FSP-439899.A1 439899	£6.93	£8.32
94 - ROUND-HEAD SCREW M8 X 50 FSP-771800.A1 771800	£2.00	£2.40
95 - ROTARY KNOB M8 FSP-483162.A21 483162	£5.30	£6.36
97 - TABLE FOR HAND-HELD CIRCULAR SAWS FSP-637735.A8 637735	£66.68	£80.01
98 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A39 219102	£2.00	£2.40
99 - THREADED PIN M6 X 12 FSP-442597.A12 442597	£2.00	£2.40
100 - ADJUSTING PIECE FSP-443971.A42 443971	£2.00	£2.40
101 - ADJUSTING PIECE FSP-442809.A34 442809	£2.00	£2.40
102 - CHIP DEFLECTOR FSP-439696.A20 439696	£8.94	£10.73
103 - RAISED-HEAD SCREW 5.0 X 18 MM FSP-228694.A10 228694	£2.00	£2.40
104 - WASHER FSP-440675.A15 440675	£2.00	£2.40
105 - NO LONGER AVAILABLE FSP-00000.A2966 00000	-
106 - CABLE FSP-440690.A11 440690	£5.64	£6.77
107 - RAISED-HEAD SCREW 4.0 X 10 MM FSP-228729.A9 228729	£2.00	£2.40
109 - COVER FSP-440691.A5 440691	£15.72	£18.87
110 - HANDLE FSP-440686.A5 440686	-
111 - FLAT HEAD SCREW 5.0 X 16 MM FSP-439494.A11 439494	£2.00	£2.40
112 - PIN KEY FSP-439274.A25 439274	£3.56	£4.27
113 - BRUSH HOLDER (PAIR) 230V FSP-487464.A2 487464	£18.09	£21.71
