Festool OF 1010 EBQ / 490055 Spare Parts

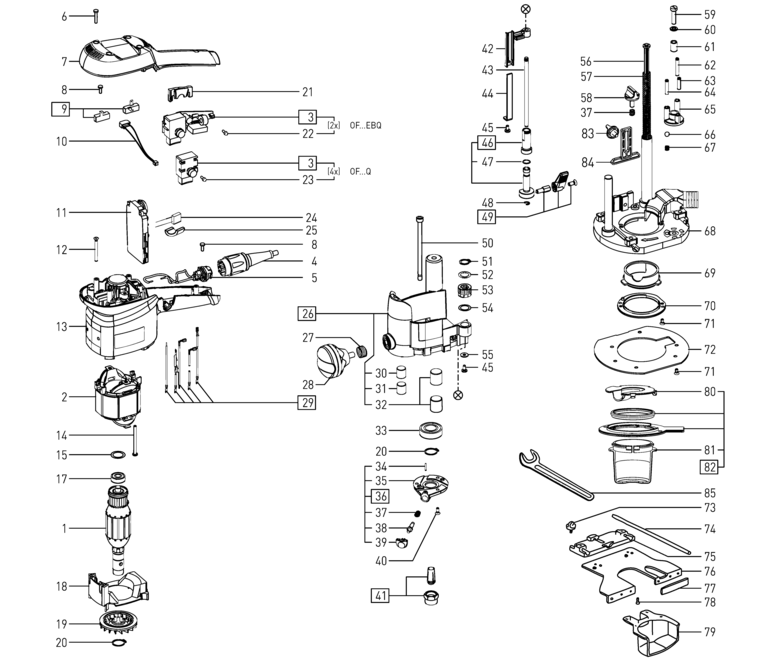

An exploded diagram and spare parts listing for the Festool OF 1010 EBQ / 490055

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492040.A1 492040	£115.32	£138.39
2 - FIELD ASSEMBLY 230 V FSP-491885.A9 491885	£48.87	£58.64
3 - SWITCH MODUL FSP-490136.A3 490136	£29.49	£35.39
4 - DESCRIPTION UNAVAILABLE FSP-000000.A350 000000	-
4 - PLUG IT-CABLE FSP-203924.A12 203924	£25.82	£30.99
4 - PLUG IT-CABLE FSP-203914.A77 203914	-
5 - SOCKET HOUSING 120-230V FSP-489926.A0 489926	£7.80	£9.36
6 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A73 400584	£2.00	£2.40
7 - HOUSING COVER FSP-463090.A5 463090	£7.86	£9.43
8 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A89 219031	£2.00	£2.40
9 - BRUSH HOLDER (PAAR) 110-120V FSP-488916.A4 488916	£26.84	£32.21
9 - BRUSH HOLDER (PAIR) 230V FSP-488579.A18 488579	£10.17	£12.20
10 - TACHOMETER COIL FSP-457920.A14 457920	£7.37	£8.84
11 - ELECTRONIC 230-240V FSP-490144.A3 490144	£86.22	£103.46
12 - FLAT HEAD SCREW M4 X 40 FSP-400866.A12 400866	£2.00	£2.40
13 - MOTOR HOUSING FSP-463087.A4 463087	£25.23	£30.28
14 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A17 228707	£2.00	£2.40
15 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A19 203777	£2.00	£2.40
17 - BALL BEARING FSP-10775821.A22 10775821	£4.82	£5.79
18 - AIR GUIDE WASHER FSP-434430.A35 434430	£2.00	£2.40
19 - FAN FSP-440171.A6 440171	£2.00	£2.40
20 - SNAP RING FSP-401191.A15 401191	£2.00	£2.40
21 - BRIDGE FSP-463095.A3 463095	£2.00	£2.40
22 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A42 228718	£2.00	£2.40
23 - CHEESE HEAD SCREW M3 X 6.5 FSP-400605.A3 400605	£2.00	£2.40
24 - CAPACITOR FSP-492778.A46 492778	£19.73	£23.68
25 - FOAM STRIP FSP-434716.A32 434716	£2.00	£2.40
26 - BEARING COVER FSP-490564.A5 490564	£71.82	£86.19
27 - PRESSURE SPRING FSP-440729.A17 440729	£2.00	£2.40
28 - GRIP FSP-487554.A16 487554	£4.88	£5.85
29 - SET OF FLEXIBLE LEADS FSP-491194.A2 491194	£30.94	£37.13
30 - RING FSP-436301.A7 436301	£2.00	£2.40
31 - DU BUSHING FSP-210031.A5 210031	£2.00	£2.40
32 - BUSH FSP-400994.A5 400994	£2.00	£2.40
33 - BALL BEARING FSP-462795.A3 462795	£9.72	£11.67
34 - SLEEVE FSP-200747.A25 200747	£2.00	£2.40
35 - COVER FSP-473550.A5 473550	£7.58	£9.09
36 - COVER FSP-494788.A22 494788	£15.10	£18.12
37 - PRESSURE SPRING FSP-444754.A53 444754	£2.00	£2.40
38 - BOLT FSP-436305.A19 436305	£9.32	£11.19
39 - CAP FSP-450206.A21 450206	£2.00	£2.40
40 - FLAT HEAD SCREW M4 X 10 FSP-228581.A15 228581	£2.00	£2.40
41 - COLLET FSP-488755.A27 488755	£38.86	£46.63
41 - COLLET FSP-488761.A5 488761	£38.86	£46.63
42 - INDICATOR FSP-492173.A2 492173	£15.98	£19.17
43 - DEPTH STOP FSP-450677.A4 450677	£3.07	£3.68
44 - STOP FSP-450678.A12 450678	£5.99	£7.19
45 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A91 228570	£2.00	£2.40
46 - FINE ADJUSTMENT FSP-490143.A11 490143	£22.71	£27.25
47 - O-RING FSP-200926.A16 200926	£1.75	£2.10
48 - WASHER FSP-400106.A27 400106	£2.00	£2.40
49 - LEVER FSP-490429.A15 490429	£18.09	£21.71
50 - SCREW FSP-400492.A14 400492	£5.79	£6.95
51 - SNAP RING FSP-216770.A5 216770	£2.00	£2.40
52 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A18 228503	£2.00	£2.40
53 - ADJUSTING KNOB FSP-457351.A4 457351	£3.20	£3.84
54 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A22 436828	£2.00	£2.40
55 - WASHER FSP-403100.A28 403100	£2.00	£2.40
56 - BOLT FSP-455791.A7 455791	£2.00	£2.40
57 - PRESSURE SPRING FSP-436377.A8 436377	£2.00	£2.40
58 - ROTARY KNOB FSP-444633.A4 444633	£2.21	£2.65
59 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A4 400859	£2.00	£2.40
60 - WASHER 6.4 MM FSP-200578.A24 200578	£2.00	£2.40
61 - BUSH FSP-436300.A28 436300	£2.00	£2.40
62 - THREADED PIN M5 X 30 FSP-451537.A3 451537	£2.00	£2.40
63 - THREADED PIN M5 X 20 FSP-451535.A4 451535	£2.00	£2.40
64 - THREADED PIN M5 X 25 FSP-451536.A13 451536	£2.00	£2.40
65 - STOP FSP-436520.A9 436520	£15.25	£18.30
66 - BALL FSP-783305.A39 783305	£2.00	£2.40
67 - PRESSURE SPRING FSP-436528.A34 436528	£2.00	£2.40
68 - PLATE FSP-488577.A0 488577	£65.48	£78.58
69 - HOOD FSP-450507.A11 450507	£2.00	£2.40
70 - BUSH FSP-10364663.A2 10364663	£2.00	£2.40
71 - FLAT HEAD SCREW M4 X 8 FSP-228737.A39 228737	£2.00	£2.40
72 - PLATE FSP-436477.A4 436477	£14.60	£17.52
73 - ROTARY KNOB FSP-436195.A31 436195	£2.00	£2.40
74 - ROUND GUIDE FSP-451754.A6 451754	£6.12	£7.34
75 - GUIDE FSP-483449.A17 483449	£5.64	£6.77
76 - STOP FSP-10035623.A5 10035623	£18.72	£22.46
77 - SUPPORT FSP-437478.A4 437478	£2.00	£2.40
78 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A34 219102	£2.00	£2.40
79 - CHIP GUARD FSP-437307.A3 437307	£6.68	£8.01
80 - COVER FSP-493414.A3 493414	£16.19	£19.43
81 - HOOD FSP-467468.A3 467468	£2.00	£2.40
82 - CHIP DEFLECTOR FSP-493180.A3 493180	£15.46	£18.55
83 - ROTARY KNOB FSP-436195.A32 436195	£2.00	£2.40
84 - SUPPORT FSP-438608.A10 438608	£2.00	£2.40
85 - OPEN ENDED SPANNER SW 19 FSP-772049.A3 772049	£8.30	£9.96
