Festool OF 1000 EB / 488023 Spare Parts

Home Details Reviews Delivery

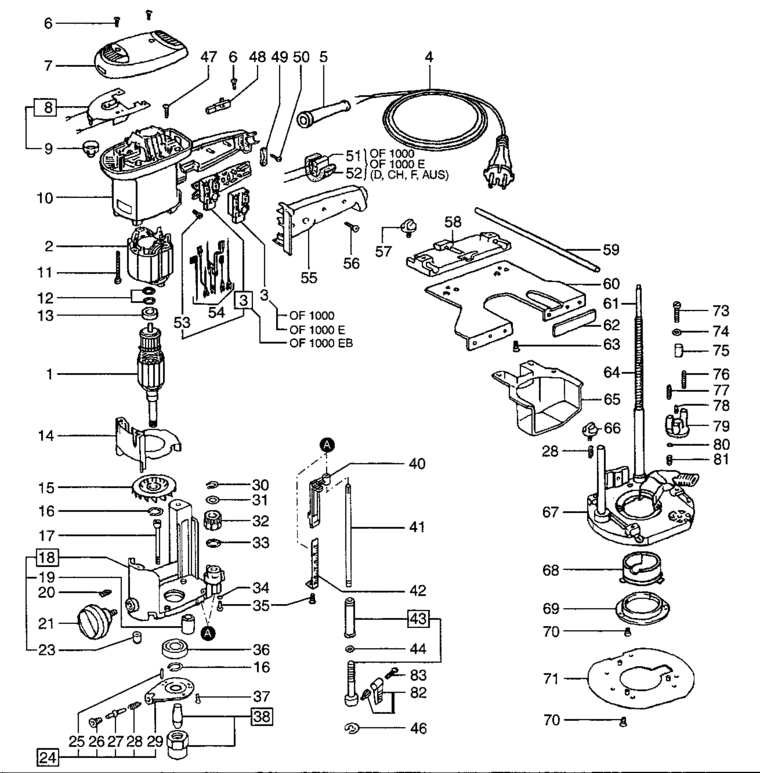

An exploded diagram and spare parts listing for the Festool OF 1000 EB / 488023

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492040.A16 492040	£115.32	£138.39
2 - FIELD ASSEMBLY 230 V FSP-491885.A20 491885	£48.87	£58.64
3 - BRAKE MODULE 230 V FSP-488953.A1 488953	£96.93	£116.32
4 - CABLE EU FSP-457600.A10 457600	£25.08	£30.09
4 - NO LONGER AVAILABLE FSP-00000.A5475 00000	-
5 - CABLE CONDUIT FSP-432436.A22 432436	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A278 219031	£2.00	£2.40
7 - CAP FSP-450552.A0 450552	-
8 - CONTROL ELECTRONICS 230V FSP-488952.A4 488952	£94.04	£112.85
10 - HOUSING FSP-488657.A0 488657	£24.64	£29.57
11 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A60 228707	£2.00	£2.40
12 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A60 203777	£2.00	£2.40
12 - COMPENSATING WASHER 15 X 21.8 X 0.2 MM FSP-228759.A14 228759	£2.00	£2.40
13 - BALL BEARING FSP-10775821.A72 10775821	£4.82	£5.79
14 - AIR GUIDE WASHER FSP-434430.A52 434430	£2.00	£2.40
15 - FAN FSP-440171.A20 440171	£2.00	£2.40
16 - SNAP RING FSP-401191.A21 401191	£2.00	£2.40
17 - SCREW FSP-400492.A4 400492	£5.79	£6.95
18 - NO LONGER AVAILABLE FSP-00000.A5480 00000	-
19 - BUSH FSP-400994.A40 400994	£2.00	£2.40
20 - PRESSURE SPRING FSP-440729.A33 440729	£2.00	£2.40
21 - NO LONGER AVAILABLE FSP-00000.A5479 00000	-
23 - DU BUSHING FSP-210031.A17 210031	£2.00	£2.40
24 - COVER FSP-494788.A5 494788	£15.10	£18.12
25 - SLEEVE FSP-200747.A10 200747	£2.00	£2.40
26 - CAP FSP-450206.A0 450206	£2.00	£2.40
27 - BOLT FSP-436305.A14 436305	£9.32	£11.19
28 - PRESSURE SPRING FSP-444754.A8 444754	£2.00	£2.40
29 - COVER FSP-473550.A30 473550	£7.58	£9.09
30 - SNAP RING FSP-216770.A21 216770	£2.00	£2.40
31 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A10 228503	£2.00	£2.40
32 - ADJUSTING KNOB FSP-439282.A17 439282	£5.09	£6.11
33 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A3 436828	£2.00	£2.40
34 - WASHER FSP-403100.A5 403100	£2.00	£2.40
35 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A18 228570	£2.00	£2.40
36 - BALL BEARING FSP-462795.A28 462795	£9.72	£11.67
37 - FLAT HEAD SCREW M4 X 10 FSP-228581.A39 228581	£2.00	£2.40
38 - COLLET FSP-488755.A5 488755	£38.86	£46.63
38 - COLLET FSP-488761.A12 488761	£38.86	£46.63
40 - NO LONGER AVAILABLE FSP-00000.A5481 00000	-
41 - DEPTH STOP FSP-450677.A16 450677	£3.07	£3.68
42 - STOP FSP-450678.A0 450678	£5.99	£7.19
43 - FINE ADJUSTMENT FSP-490143.A9 490143	£22.71	£27.25
44 - O-RING FSP-200926.A11 200926	£1.75	£2.10
46 - WASHER FSP-400106.A5 400106	£2.00	£2.40
47 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A65 228569	£2.00	£2.40
48 - BRUSH HOLDER (PAIR) 230V FSP-488579.A6 488579	£10.17	£12.20
49 - CABLE CLAMP FSP-431899.A54 431899	£2.00	£2.40
49 - CABLE CLAMP FSP-439288.A2 439288	£2.00	£2.40
50 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A80 228663	£2.00	£2.40
51 - CAPACITOR FSP-492778.A10 492778	£19.73	£23.68
52 - FOAM STRIP FSP-434716.A20 434716	£2.00	£2.40
53 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A9 228718	£2.00	£2.40
54 - NO LONGER AVAILABLE FSP-00000.A5471 00000	-
55 - COVER FSP-451402.A37 451402	£6.97	£8.36
56 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A187 228567	£2.00	£2.40
57 - ROTARY KNOB FSP-436195.A68 436195	£2.00	£2.40
58 - GUIDE FSP-483449.A11 483449	£5.64	£6.77
59 - ROUND GUIDE FSP-451754.A15 451754	£6.12	£7.34
60 - STOP FSP-10035623.A12 10035623	£18.72	£22.46
61 - BOLT FSP-455791.A18 455791	£2.00	£2.40
62 - SUPPORT FSP-437478.A12 437478	£2.00	£2.40
63 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A14 219102	£2.00	£2.40
64 - PRESSURE SPRING FSP-436377.A12 436377	£2.00	£2.40
65 - CHIP GUARD FSP-437307.A19 437307	£6.68	£8.01
66 - ROTARY KNOB FSP-444633.A18 444633	£2.21	£2.65
67 - PLATE FSP-488577.A10 488577	£65.48	£78.58
68 - HOOD FSP-450507.A5 450507	£2.00	£2.40
69 - BUSH FSP-10364663.A19 10364663	£2.00	£2.40
70 - FLAT HEAD SCREW M4 X 8 FSP-228737.A8 228737	£2.00	£2.40
71 - PLATE FSP-436477.A14 436477	£14.60	£17.52
73 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A16 400859	£2.00	£2.40
74 - WASHER 6.4 MM FSP-200578.A136 200578	£2.00	£2.40
75 - BUSH FSP-436300.A21 436300	£2.00	£2.40
76 - THREADED PIN M5 X 30 FSP-451537.A9 451537	£2.00	£2.40
77 - THREADED PIN M5 X 25 FSP-451536.A8 451536	£2.00	£2.40
78 - THREADED PIN M5 X 20 FSP-451535.A9 451535	£2.00	£2.40
79 - STOP FSP-436520.A26 436520	£15.25	£18.30
80 - BALL FSP-783305.A9 783305	£2.00	£2.40
81 - PRESSURE SPRING FSP-436528.A8 436528	£2.00	£2.40
82 - LEVER FSP-490429.A1 490429	£18.09	£21.71
83 - CHEESE-HEAD COUNTERSUNK SCREW M5 X 12 FSP-400090.A13 400090	£2.00	£2.40

Attribute Name	Value
Brand	Festool
