Festool OF 1000 / 488857 Spare Parts

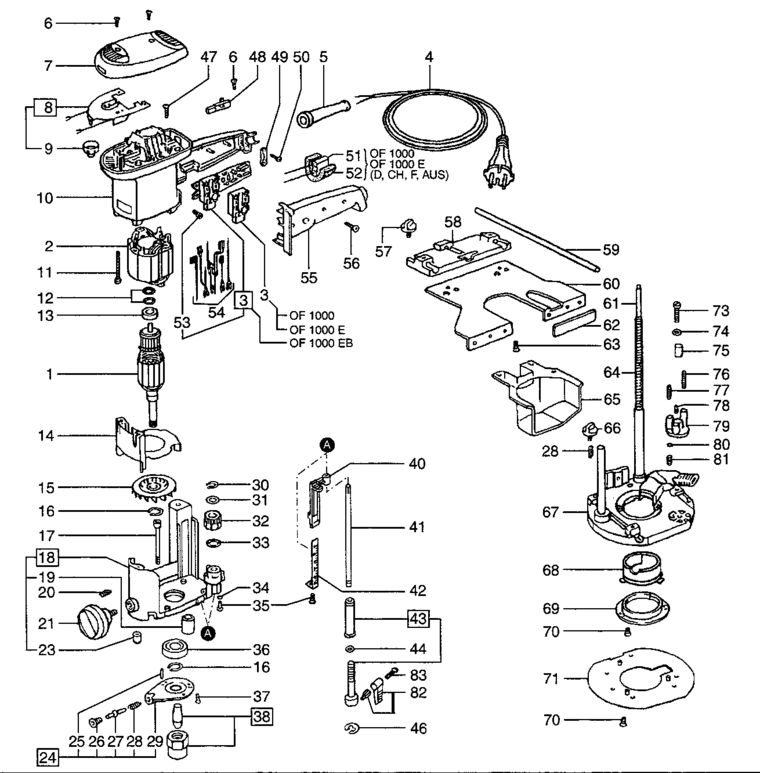

An exploded diagram and spare parts listing for the Festool OF 1000 / 488857

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492039.A2 492039	£119.08	£142.90
2 - FIELD ASSEMBLY 230 V FSP-492042.A3 492042	£40.80	£48.96
3 - SWITCH ATTACHMENT FSP-486317.A61 486317	£15.47	£18.56
4 - CABLE EU FSP-457600.A19 457600	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A36 432436	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A236 219031	£2.00	£2.40
7 - NO LONGER AVAILABLE FSP-00000.A3874 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A3875 00000	-
10 - HOUSING FSP-488657.A7 488657	£24.64	£29.57
11 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A67 228707	£2.00	£2.40
12 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A48 203777	£2.00	£2.40
12 - COMPENSATING WASHER 15 X 21.8 X 0.2 MM FSP-228759.A4 228759	£2.00	£2.40
13 - BALL BEARING FSP-401524.A63 401524	£4.82	£5.78
14 - AIR GUIDE WASHER FSP-434430.A41 434430	£2.00	£2.40
15 - FAN FSP-444979.A1 444979	£3.07	£3.68
16 - SNAP RING FSP-401191.A33 401191	£2.00	£2.40
17 - SCREW FSP-400492.A8 400492	£5.79	£6.95
18 - NO LONGER AVAILABLE FSP-00000.A3873 00000	-
19 - BUSH FSP-400994.A27 400994	£2.00	£2.40
20 - PRESSURE SPRING FSP-440729.A23 440729	£2.00	£2.40
21 - NO LONGER AVAILABLE FSP-00000.A3872 00000	-
23 - DU BUSHING FSP-210031.A22 210031	£2.00	£2.40
24 - COVER FSP-494788.A13 494788	£15.10	£18.12
25 - SLEEVE FSP-200747.A6 200747	£2.00	£2.40
26 - CAP FSP-450206.A14 450206	£2.00	£2.40
27 - BOLT FSP-436305.A6 436305	£9.32	£11.19
28 - PRESSURE SPRING FSP-444754.A28 444754	£2.00	£2.40
29 - COVER FSP-473550.A21 473550	£7.58	£9.09
30 - SNAP RING FSP-216770.A17 216770	£2.00	£2.40
31 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A5 228503	£2.00	£2.40
32 - ADJUSTING KNOB FSP-439282.A12 439282	£5.09	£6.11
33 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A8 436828	£2.00	£2.40
34 - WASHER FSP-403100.A13 403100	£2.00	£2.40
35 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A6 228570	£2.00	£2.40
36 - BALL BEARING FSP-462795.A18 462795	£9.72	£11.67
37 - FLAT HEAD SCREW M4 X 10 FSP-228581.A27 228581	£2.00	£2.40
38 - COLLET FSP-488755.A13 488755	£38.86	£46.63
38 - COLLET FSP-488761.A11 488761	£38.86	£46.63
40 - NO LONGER AVAILABLE FSP-00000.A3871 00000	-
41 - DEPTH STOP FSP-450677.A9 450677	£3.07	£3.68
42 - STOP FSP-450678.A7 450678	£5.99	£7.19
43 - FINE ADJUSTMENT FSP-490143.A3 490143	£22.71	£27.25
44 - O-RING FSP-200926.A5 200926	£1.75	£2.10
46 - WASHER FSP-400106.A15 400106	£2.00	£2.40
47 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A78 228569	£2.00	£2.40
48 - BRUSH HOLDER (PAIR) 230V FSP-488579.A9 488579	£10.17	£12.20
49 - CABLE CLAMP FSP-431899.A40 431899	£2.00	£2.40
49 - CABLE CLAMP FSP-439288.A38 439288	£2.00	£2.40
50 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A26 228663	£2.00	£2.40
51 - CAPACITOR FSP-492778.A15 492778	£19.73	£23.68
52 - FOAM STRIP FSP-434716.A5 434716	£2.00	£2.40
53 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A5 228718	£2.00	£2.40
54 - SET OF FLEXIBLE LEADS FSP-488991.A0 488991	£27.58	£33.10
55 - COVER FSP-451402.A31 451402	£6.97	£8.36
56 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A145 228567	£2.00	£2.40
57 - ROTARY KNOB FSP-436195.A49 436195	£2.00	£2.40
58 - GUIDE FSP-483449.A4 483449	£5.64	£6.77
59 - ROUND GUIDE FSP-451754.A23 451754	£6.12	£7.34
60 - STOP FSP-10035623.A22 10035623	£18.72	£22.46
61 - BOLT FSP-455791.A11 455791	£2.00	£2.40
62 - SUPPORT FSP-437478.A18 437478	£2.00	£2.40
63 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A4 219102	£2.00	£2.40
64 - PRESSURE SPRING FSP-436377.A23 436377	£2.00	£2.40
65 - CHIP GUARD FSP-437307.A11 437307	£6.68	£8.01
66 - ROTARY KNOB FSP-444633.A27 444633	£2.21	£2.65
67 - PLATE FSP-488577.A6 488577	£65.48	£78.58
68 - HOOD FSP-450507.A9 450507	£2.00	£2.40
69 - BUSH FSP-10364663.A13 10364663	£2.00	£2.40
70 - FLAT HEAD SCREW M4 X 8 FSP-228737.A18 228737	£2.00	£2.40
71 - PLATE FSP-436477.A17 436477	£14.60	£17.52
73 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A24 400859	£2.00	£2.40
74 - WASHER 6.4 MM FSP-200578.A77 200578	£2.00	£2.40
75 - BUSH FSP-436300.A12 436300	£2.00	£2.40
76 - THREADED PIN M5 X 30 FSP-451537.A13 451537	£2.00	£2.40
77 - THREADED PIN M5 X 25 FSP-451536.A4 451536	£2.00	£2.40
78 - THREADED PIN M5 X 20 FSP-451535.A13 451535	£2.00	£2.40
79 - STOP FSP-436520.A23 436520	£15.25	£18.30
80 - BALL FSP-783305.A25 783305	£2.00	£2.40
81 - PRESSURE SPRING FSP-436528.A15 436528	£2.00	£2.40
82 - LEVER FSP-490429.A12 490429	£18.09	£21.71
83 - CHEESE-HEAD COUNTERSUNK SCREW M5 X 12 FSP-400090.A5 400090	£2.00	£2.40
