Festool Bench unit / 488524 Spare Parts

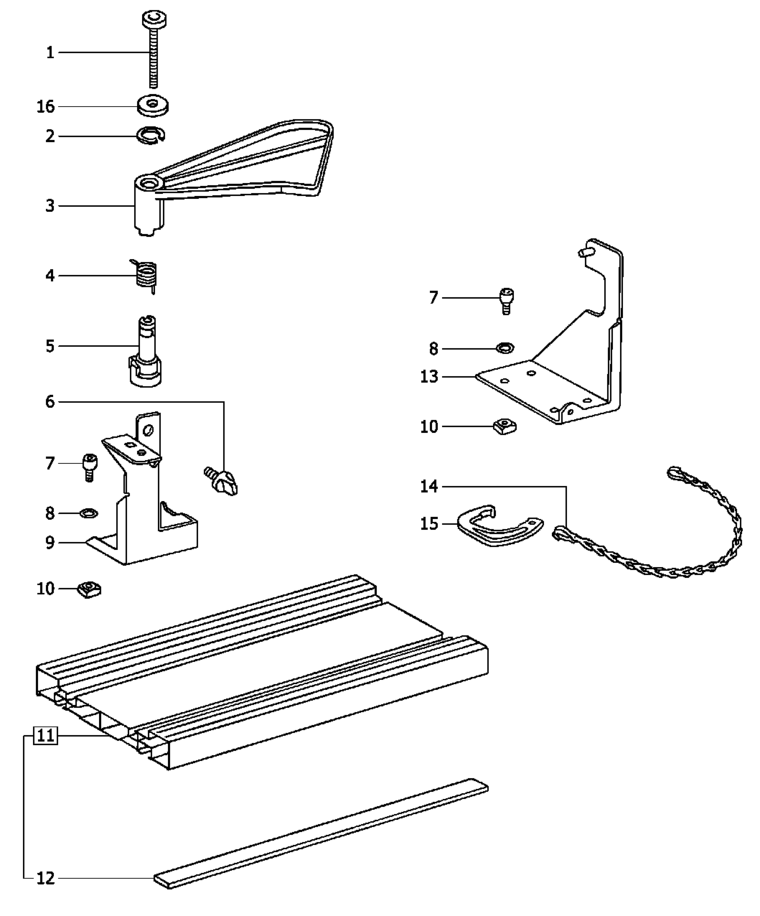

An exploded diagram and spare parts listing for the Festool Bench unit / 488524

	Ex VAT	Inc VAT
1 - SCREW M6 X 60 FSP-400598.A1 400598	£2.00	£2.40
2 - CIRCLIP FSP-228726.A0 228726	£2.00	£2.40
3 - PENDULUM GUARD FSP-200409.A0 200409	£12.46	£14.95
4 - TORSION SPRING FSP-200460.A0 200460	£7.23	£8.68
5 - AXLE FSP-200458.A1 200458	£12.60	£15.12
6 - ROTARY KNOB M6 FSP-438320.A16 438320	£10.02	£12.03
7 - CHEESE HEAD SCREW M6 X 10 FSP-228547.A10 228547	£2.00	£2.40
8 - SPRING DISC FSP-774010.A0 774010	£2.00	£2.40
9 - BRACKET FSP-200410.A0 200410	£51.99	£62.39
10 - SQUARE NUT M6 FSP-228566.A107 228566	£2.00	£2.40
11 - PLATE FSP-612050.A1 612050	£48.82	£58.58
12 - ADHESIVE CUSHION STRIP 10 M FSP-485724.A5 485724	£18.32	£21.99
13 - HOLDER FSP-200439.A0 200439	£59.67	£71.60
14 - CHAIN FSP-440158.A4 440158	£3.30	£3.96
15 - CLAMP FSP-200498.A4 200498	£10.02	£12.03
16 - WASHER 6.4 MM FSP-200578.A50 200578	£2.00	£2.40
