Festool HL 850 E 220V / 486021 Spare Parts

Home Details Reviews Delivery

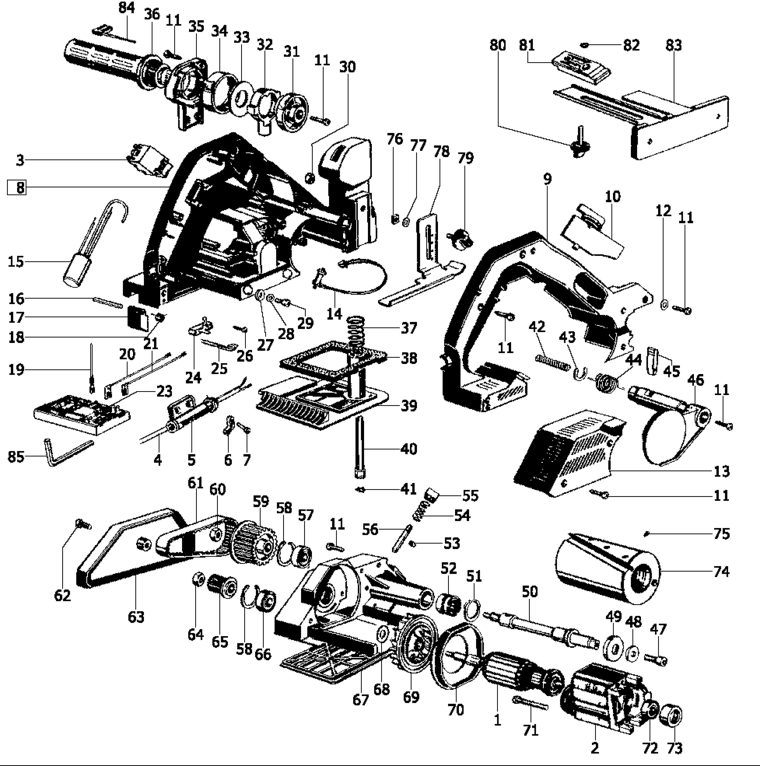

An exploded diagram and spare parts listing for the Festool HL 850 E 220V / 486021

	Ex VAT	Inc VAT
1 - ARMATURE 230V FSP-492300.A1 492300	£121.34	£145.61
2 - FIELD ASSEMBLY 230V FSP-492302.A4 492302	£75.82	£90.99
3 - SWITCH FSP-490843.A9 490843	£45.68	£54.81
4 - NO LONGER AVAILABLE FSP-00000.A6144 00000	-
4 - CABLE EU FSP-457600.A3 457600	£25.08	£30.09
5 - CABLE GROMMET FSP-437024.A7 437024	£2.00	£2.40
6 - CABLE CLAMP FSP-439288.A12 439288	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A63 228663	£2.00	£2.40
8 - MOTOR HOUSING FSP-485889.A5 485889	£118.15	£141.78
9 - COVER FSP-715176.A8 715176	£16.48	£19.77
10 - ROCKER FSP-715039.A8 715039	£3.14	£3.77
11 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A199 228567	£2.00	£2.40
12 - SPRING DISC FSP-200762.A4 200762	£2.00	£2.40
13 - MOTOR COVER FSP-455589.A8 455589	£4.81	£5.77
14 - COIL SHELL FSP-612012.A5 612012	£15.41	£18.49
15 - INTERFERENCE CAPACITOR FSP-715125.A1 715125	£8.98	£10.78
16 - CYLINDER PIN FSP-228651.A8 228651	£2.00	£2.40
17 - SUPPORT FSP-715030.A0 715030	£2.00	£2.40
18 - TORSION SPRING FSP-715033.A13 715033	£2.00	£2.40
19 - FLEXIBLE LEAD FSP-715124.A3 715124	£2.00	£2.40
20 - NO LONGER AVAILABLE FSP-00000.A6145 00000	-
21 - NO LONGER AVAILABLE FSP-00000.A6146 00000	-
24 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A15 488915	£19.04	£22.85
25 - PLUG-IN BRACKET FSP-443331.A10 443331	£2.00	£2.40
26 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A268 219031	£2.00	£2.40
27 - RING FSP-715166.A1 715166	£4.06	£4.87
28 - WASHER 5.3 MM FSP-200577.A3 200577	£2.00	£2.40
29 - RAISED-HEAD SCREW FSP-476787.A5 476787	£2.00	£2.40
30 - HEXAGON NUT M6 FSP-228689.A11 228689	£2.00	£2.40
31 - CAM FSP-715053.A0 715053	£6.42	£7.71
32 - HEAD PIECE FSP-715055.A0 715055	£11.05	£13.26
33 - WASHER FSP-715037.A9 715037	£2.00	£2.40
34 - CLAMPING RING FSP-715054.A9 715054	£2.66	£3.19
35 - COVER FSP-715051.A0 715051	£2.82	£3.39
36 - GRIP FSP-715052.A9 715052	£10.92	£13.10
37 - PRESSURE SPRING FSP-715029.A9 715029	£2.00	£2.40
38 - NEOPRENE SEAL FSP-715022.A0 715022	£3.81	£4.57
39 - ADJUSTING TABLE FSP-487656.A0 487656	£40.21	£48.25
40 - CHEESE HEAD SCREW FSP-400040.A6 400040	£2.00	£2.40
41 - TOOTH RING FSP-213646.A5 213646	£2.00	£2.40
42 - PRESSURE SPRING FSP-715038.A0 715038	£2.00	£2.40
43 - CIRCLIP FSP-228656.A0 228656	£2.00	£2.40
44 - TORSION SPRING FSP-715020.A0 715020	£3.68	£4.42
45 - PUSHER FSP-715049.A0 715049	£2.00	£2.40
46 - HOOD FSP-715048.A9 715048	£4.69	£5.63
47 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A10 200685	£2.00	£2.40
48 - WASHER FSP-402935.A2 402935	£2.00	£2.40
49 - CLAMPING FLANGE FSP-715036.A0 715036	£2.00	£2.40
50 - PLANING SHAFT FSP-715015.A3 715015	£37.00	£44.40
51 - SNAP RING FSP-202930.A4 202930	£2.00	£2.40
52 - NEEDLE BEARING FSP-788849.A8 788849	£29.92	£35.91
53 - CIRCLIP FSP-229597.A8 229597	£2.00	£2.40
54 - PRESSURE SPRING FSP-715027.A2 715027	£2.00	£2.40
55 - CAP FSP-715050.A9 715050	£2.00	£2.40
56 - BOLT FSP-715021.A8 715021	£4.24	£5.09
57 - BALL BEARING FSP-400583.A7 400583	£6.64	£7.97
58 - SNAP RING FSP-209608.A4 209608	£2.00	£2.40
59 - TOOTH DISC FSP-715034.A1 715034	£15.97	£19.16
60 - HEXAGON NUT M6 FSP-228689.A13 228689	£2.00	£2.40
61 - TOOTHED BELT FSP-714043.A6 714043	£12.98	£15.57
62 - RAISED-HEAD SCREW FSP-476787.A4 476787	£2.00	£2.40
63 - GEAR COVER FSP-455585.A2 455585	£6.09	£7.31
64 - HEXAGON NUT M6 FSP-772997.A2 772997	£2.00	£2.40
65 - TOOTH DISC FSP-715035.A8 715035	£4.92	£5.91
66 - BALL BEARING FSP-789575.A71 789575	£5.99	£7.19
67 - BEARING FLANGE FSP-487655.A9 487655	£98.03	£117.64
68 - SHIM RING FSP-782510.A24 782510	£2.00	£2.40
69 - FAN FSP-715024.A20 715024	£2.00	£2.40
70 - AIR GUIDE WASHER FSP-715017.A5 715017	£2.00	£2.40
71 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A40 228707	£2.00	£2.40
72 - BALL BEARING FSP-228559.A23 228559	£4.06	£4.87
73 - BEARING RING FSP-438613.A81 438613	£2.00	£2.40
74 - PLANING HEAD FSP-484520.A4 484520	£108.26	£129.91
75 - THREADED PIN M4 X 8 FSP-715102.A0 715102	£2.00	£2.40
76 - SQUARE NUT M6 FSP-228566.A5 228566	£2.00	£2.40
77 - O-RING FSP-200052.A12 200052	£2.00	£2.40
78 - REBATE STOP FSP-715040.A0 715040	£8.81	£10.57
79 - ROTARY KNOB FSP-436195.A63 436195	£2.00	£2.40
80 - ROTARY KNOB M6 X 28 FSP-436420.A13 436420	£2.00	£2.40
81 - SLIP PIECE FSP-715156.A12 715156	£9.43	£11.32
82 - O-RING FSP-200052.A13 200052	£2.00	£2.40
83 - STOP FSP-715056.A9 715056	£22.96	£27.55
84 - PIN KEY FSP-439803.A14 439803	£5.05	£6.06
85 - SCREWDRIVER FSP-202752.A48 202752	£2.00	£2.40

Attribute Name	Value
Brand	Festool
