Festool EHL 65 EQ 110V GB / 499543 Spare Parts

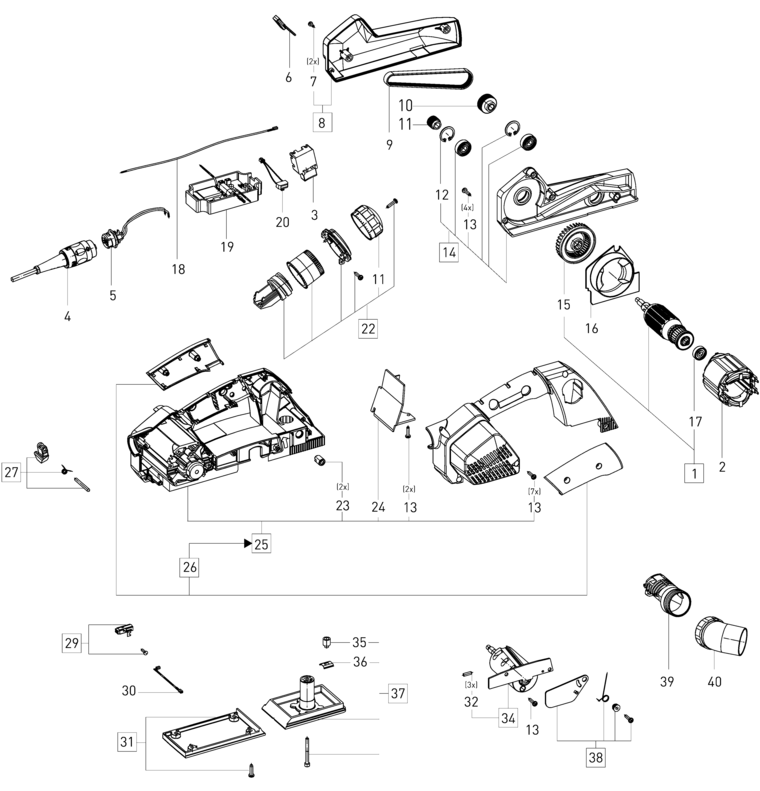

An exploded diagram and spare parts listing for the Festool EHL 65 EQ 110V GB / 499543

	Ex VAT	Inc VAT
1 - ARMATURE FSP-499684.A0 499684	£78.42	£94.11
2 - FIELD ASSEMBLY 100V FSP-495163.A2 495163	£42.65	£51.18
3 - SWITCH FSP-499571.A0 499571	£17.32	£20.79
4 - DESCRIPTION UNAVAILABLE FSP-000000.A420 000000	-
5 - SOCKET HOUSING FSP-10006727.A1 10006727	£8.93	£10.72
6 - PIN KEY FSP-439803.A5 439803	£5.05	£6.06
7 - RAISED-HEAD SCREW M3 X 8 FSP-228743.A8 228743	£2.00	£2.40
8 - BELT COVER FSP-499673.A3 499673	£11.98	£14.38
9 - V-RIBBED BELT FSP-448235.A5 448235	£21.87	£26.24
10 - BELT DISC FSP-448928.A8 448928	£16.89	£20.27
11 - BELT DISC FSP-448927.A0 448927	£11.01	£13.21
12 - SNAP RING FSP-204471.A29 204471	£2.00	£2.40
13 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A52 400468	£2.00	£2.40
14 - BELT DISC FSP-499674.A1 499674	£42.78	£51.34
15 - FAN FSP-444869.A5 444869	£3.14	£3.77
16 - AIR GUIDE WASHER FSP-444870.A3 444870	£2.64	£3.17
17 - BALL BEARING FSP-400230.A0 400230	£6.72	£8.07
18 - FLEXIBLE LEAD FSP-477084.A0 477084	£2.00	£2.40
19 - ELECTRONIC FSP-499570.A1 499570	-
20 - SPEED INDICATOR FSP-487923.A4 487923	£10.32	£12.39
21 - SCALE RING FSP-10005756.A3 10005756	£11.30	£13.56
22 - BEARING RING FSP-499675.A3 499675	£21.59	£25.91
23 - QUICKSERT FSP-448930.A0 448930	£3.78	£4.53
24 - AIR DUCT FSP-446299.A4 446299	£2.79	£3.35
25 - HOUSING FSP-205211.A0 205211	£44.33	£53.20
26 - PISTOL STOCK FSP-499683.A4 499683	£14.48	£17.37
27 - SUPPORT FSP-499677.A4 499677	£8.55	£10.26
29 - BRUSH (PAIR) FSP-499679.A0 499679	£10.17	£12.20
30 - FLEXIBLE LEAD FSP-721116.A0 721116	£4.00	£4.80
31 - PLANER FOOT FSP-499680.A4 499680	£27.08	£32.49
32 - THREADED PIN M4 X 12 FSP-462187.A4 462187	£3.07	£3.68
34 - PLANING HEAD FSP-10009233.A4 10009233	£118.40	£142.08
35 - NUT FSP-446297.A4 446297	£6.34	£7.61
36 - PLATE SPRING FSP-446295.A4 446295	£2.00	£2.40
37 - ADJUSTING TABLE FSP-499682.A0 499682	£39.18	£47.01
38 - GUARD PLATE FSP-499685.A4 499685	£12.60	£15.12
39 - CHIP EJECTION FSP-444883.A4 444883	£4.28	£5.14
40 - ANGLE PIECE FSP-448785.A0 448785	£3.72	£4.47
41 - BALL BEARING FSP-400225.A12 400225	£6.29	£7.55
