Festool SR 302 E-AS 230V / 583196 Spare Parts

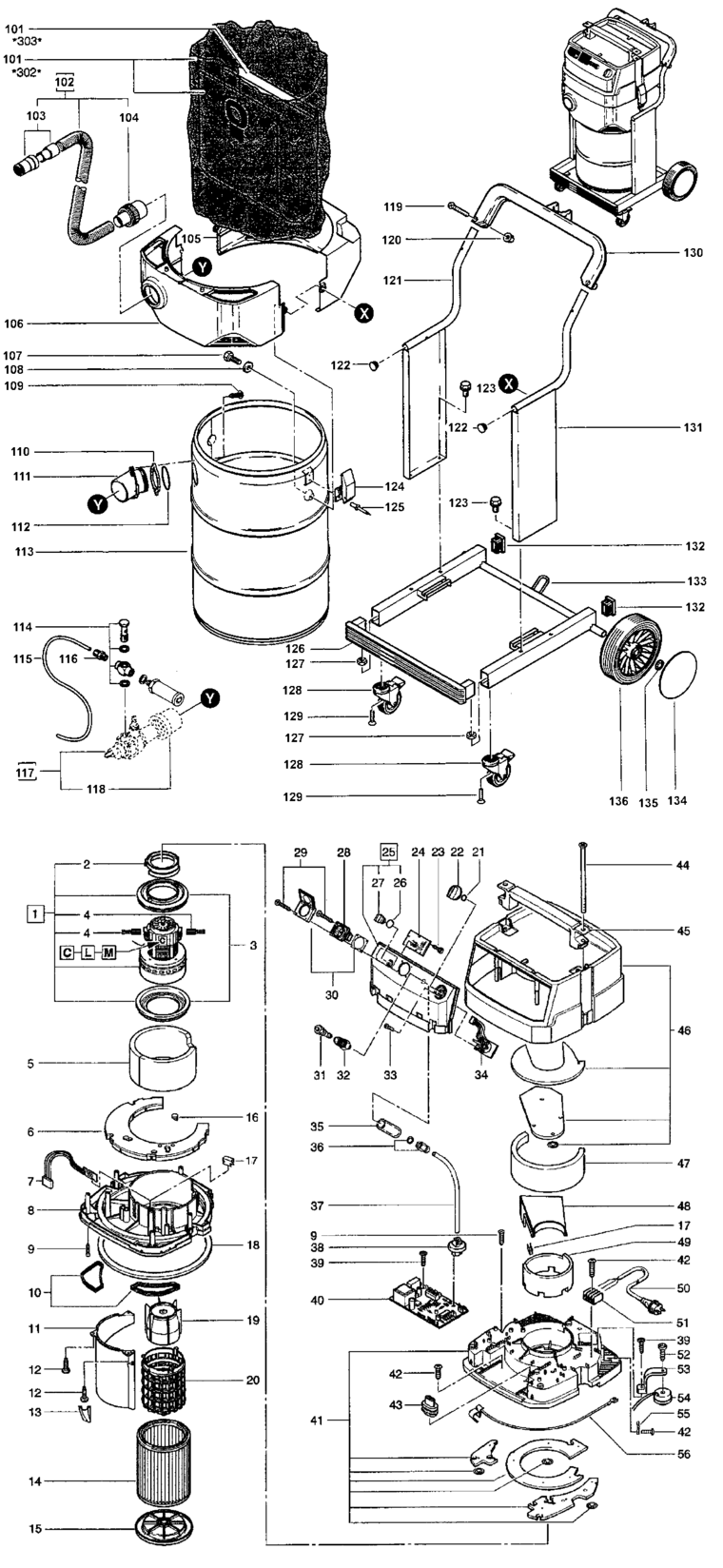

An exploded diagram and spare parts listing for the Festool SR 302 E-AS 230V / 583196

	Ex VAT	Inc VAT
1 - MOTOR 230 V FSP-490755.A33 490755	£223.23	£267.88
2 - MOTOR BEARING RING FSP-490668.A15 490668	£29.53	£35.44
3 - MOTOR BEARING RING FSP-490668.A16 490668	£29.53	£35.44
4 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A28 452876	£38.82	£46.58
4 - CARBON BRUSH FSP-625316.A13 625316	£45.55	£54.66
4 - NO LONGER AVAILABLE FSP-00000.A366 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A367 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A368 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A369 00000	-
7 - NO LONGER AVAILABLE FSP-00000.A370 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A371 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A372 00000	-
9 - FLAT HEAD SCREW FSP-412054.A38 412054	£1.63	£1.96
11 - NO LONGER AVAILABLE FSP-00000.A387 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A388 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A389 00000	-
13 - NO LONGER AVAILABLE FSP-00000.A390 00000	-
14 - ABSOLUTE FILTER FSP-486241.A15 486241	£53.94	£64.73
15 - CLAMPING SCREW FSP-412092.A22 412092	£30.19	£36.23
16 - NO LONGER AVAILABLE FSP-00000.A383 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A384 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A385 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A386 00000	-
18 - SEALING RING FSP-412039.A40 412039	£60.31	£72.37
19 - NO LONGER AVAILABLE FSP-00000.A379 00000	-
19 - NO LONGER AVAILABLE FSP-00000.A380 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A381 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A382 00000	-
21 - O-RING FSP-625308.A57 625308	£8.48	£10.18
22 - NO LONGER AVAILABLE FSP-00000.A373 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A374 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A375 00000	-
24 - NO LONGER AVAILABLE FSP-00000.A376 00000	-
25 - NO LONGER AVAILABLE FSP-00000.A377 00000	-
25 - NO LONGER AVAILABLE FSP-00000.A378 00000	-
26 - O-RING FSP-222037.A9 222037	-
27 - ROTARY KNOB FSP-445241.A47 445241	£9.76	£11.71
28 - NO LONGER AVAILABLE FSP-00000.A324 00000	-
28 - SOCKET EU FSP-445235.A1 445235	£40.08	£48.10
28 - NO LONGER AVAILABLE FSP-00000.A325 00000	-
29 - NO LONGER AVAILABLE FSP-00000.A326 00000	-
30 - COVER FSP-200504.A94 200504	£12.85	£15.42
33 - FLAT HEAD SCREW M4 X 12 FSP-228555.A25 228555	£2.00	£2.40
34 - ROTARY SWITCH FSP-450752.A18 450752	£175.33	£210.40
39 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A53 412063	£5.31	£6.37
40 - FLOW SENSOR ELECTRONICS FSP-450751.A12 450751	£240.36	£288.43
41 - PLATE FSP-487119.A43 487119	£158.57	£190.28
42 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A61 412094	£1.63	£1.96
43 - NO LONGER AVAILABLE FSP-00000.A319 00000	-
43 - NO LONGER AVAILABLE FSP-00000.A320 00000	-
44 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A10 445248	£3.56	£4.27
45 - NO LONGER AVAILABLE FSP-00000.A327 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A328 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A329 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A330 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A331 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A332 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A333 00000	-
49 - NO LONGER AVAILABLE FSP-00000.A334 00000	-
50 - NO LONGER AVAILABLE FSP-00000.A335 00000	-
50 - CABLE 7.5 M EU FSP-452078.A65 452078	£64.02	£76.83
50 - NO LONGER AVAILABLE FSP-00000.A321 00000	-
51 - NO LONGER AVAILABLE FSP-00000.A322 00000	-
51 - NO LONGER AVAILABLE FSP-00000.A323 00000	-
52 - SCREW 4.2 X 13 MM FSP-447136.A7 447136	£1.63	£1.96
53 - NO LONGER AVAILABLE FSP-00000.A317 00000	-
53 - NO LONGER AVAILABLE FSP-00000.A318 00000	-
54 - PIEZO BEEPER FSP-763572.A16 763572	£40.80	£48.96
55 - NO LONGER AVAILABLE FSP-00000.A314 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A315 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A316 00000	-
101 - DESCRIPTION UNAVAILABLE FSP-000000.A235 000000	-
102 - SUCTION HOSE FSP-500677.A2 500677	-
103 - CONNECTING SLEEVE FSP-577162.A29 577162	£16.25	£19.50
105 - NO LONGER AVAILABLE FSP-00000.A351 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A352 00000	-
107 - SCREW M6 X 20 FSP-453472.A17 453472	£2.00	£2.40
108 - WASHER 6.4 MM FSP-200578.A41 200578	£2.00	£2.40
109 - NO LONGER AVAILABLE FSP-00000.A357 00000	-
110 - NO LONGER AVAILABLE FSP-00000.A358 00000	-
111 - NO LONGER AVAILABLE FSP-00000.A359 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A360 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A361 00000	-
113 - NO LONGER AVAILABLE FSP-00000.A362 00000	-
119 - FLAT HEAD SCREW M6 X 40 FSP-400326.A15 400326	£6.09	£7.31
120 - NO LONGER AVAILABLE FSP-00000.A353 00000	-
121 - NO LONGER AVAILABLE FSP-00000.A354 00000	-
122 - NO LONGER AVAILABLE FSP-00000.A355 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A356 00000	-
124 - FLAP FSP-438702.A24 438702	£36.57	£43.88
125 - NO LONGER AVAILABLE FSP-00000.A349 00000	-
126 - NO LONGER AVAILABLE FSP-00000.A350 00000	-
127 - HEXAGON NUT M8 FSP-200719.A60 200719	£2.00	£2.40
128 - NO LONGER AVAILABLE FSP-00000.A347 00000	-
129 - NO LONGER AVAILABLE FSP-00000.A348 00000	-
135 - CLAMPING RING FSP-448717.A5 448717	£4.75	£5.70
