Festool SR 202 LE-AS 230V / 583084 Spare Parts

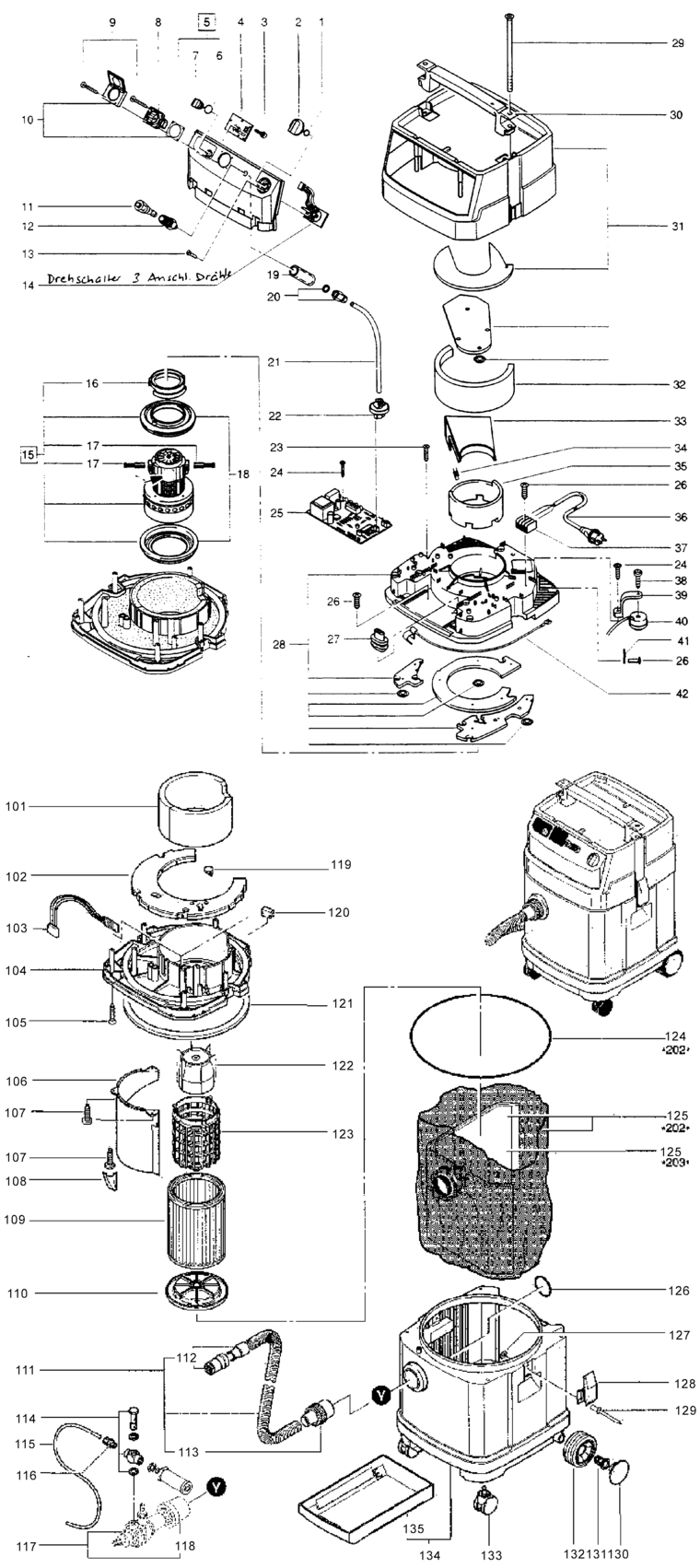

An exploded diagram and spare parts listing for the Festool SR 202 LE-AS 230V / 583084

	Ex VAT	Inc VAT
1 - O-RING FSP-625308.A10 625308	£8.48	£10.18
2 - NO LONGER AVAILABLE FSP-00000.A3824 00000	-
3 - NO LONGER AVAILABLE FSP-00000.A3825 00000	-
3 - NO LONGER AVAILABLE FSP-00000.A3826 00000	-
4 - NO LONGER AVAILABLE FSP-00000.A3827 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A3828 00000	-
6 - O-RING FSP-222037.A39 222037	-
7 - ROTARY KNOB FSP-445241.A2 445241	£9.76	£11.71
8 - NO LONGER AVAILABLE FSP-00000.A3830 00000	-
8 - SOCKET EU FSP-445235.A39 445235	£40.08	£48.10
8 - NO LONGER AVAILABLE FSP-00000.A3832 00000	-
9 - NO LONGER AVAILABLE FSP-00000.A3833 00000	-
10 - COVER FSP-200504.A76 200504	£12.85	£15.42
11 - NO LONGER AVAILABLE FSP-00000.A3834 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A3835 00000	-
13 - FLAT HEAD SCREW M4 X 12 FSP-228555.A54 228555	£2.00	£2.40
14 - ROTARY SWITCH FSP-450752.A7 450752	£175.33	£210.40
15 - MOTOR 230 V FSP-490755.A8 490755	£223.23	£267.88
16 - MOTOR BEARING RING FSP-490668.A7 490668	£29.53	£35.44
17 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A115 452876	£38.82	£46.58
17 - CARBON BRUSH FSP-625316.A20 625316	£45.55	£54.66
17 - NO LONGER AVAILABLE FSP-00000.A3852 00000	-
18 - MOTOR BEARING RING FSP-490668.A6 490668	£29.53	£35.44
19 - NO LONGER AVAILABLE FSP-00000.A3850 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A3851 00000	-
21 - HOSE FSP-626534.A10 626534	£11.68	£14.01
22 - PRESSURE SWITCH FSP-436877.A13 436877	£46.34	£55.61
23 - FLAT HEAD SCREW FSP-412054.A63 412054	£1.63	£1.96
24 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A33 412063	£5.31	£6.37
25 - FLOW SENSOR ELECTRONICS FSP-450751.A23 450751	£240.36	£288.43
26 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A39 412094	£1.63	£1.96
27 - NO LONGER AVAILABLE FSP-00000.A3848 00000	-
27 - NO LONGER AVAILABLE FSP-00000.A3849 00000	-
28 - PLATE FSP-487119.A16 487119	£158.57	£190.28
29 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A60 445248	£3.56	£4.27
30 - NO LONGER AVAILABLE FSP-00000.A3853 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A3854 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A3855 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A3856 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A3857 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A3858 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A3859 00000	-
34 - NO LONGER AVAILABLE FSP-00000.A3860 00000	-
34 - NO LONGER AVAILABLE FSP-00000.A3861 00000	-
35 - NO LONGER AVAILABLE FSP-00000.A3862 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A3863 00000	-
36 - CABLE 7.5 M EU FSP-452078.A16 452078	£64.02	£76.83
36 - NO LONGER AVAILABLE FSP-00000.A3845 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A3846 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A3847 00000	-
38 - SCREW 4.2 X 13 MM FSP-447136.A38 447136	£1.63	£1.96
39 - NO LONGER AVAILABLE FSP-00000.A3785 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A3786 00000	-
40 - PIEZO BEEPER FSP-763572.A35 763572	£40.80	£48.96
41 - NO LONGER AVAILABLE FSP-00000.A3836 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A3837 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A3838 00000	-
101 - NO LONGER AVAILABLE FSP-00000.A3839 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A3840 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A3841 00000	-
103 - NO LONGER AVAILABLE FSP-00000.A3842 00000	-
104 - NO LONGER AVAILABLE FSP-00000.A3843 00000	-
104 - NO LONGER AVAILABLE FSP-00000.A3844 00000	-
105 - FLAT HEAD SCREW FSP-412054.A64 412054	£1.63	£1.96
106 - NO LONGER AVAILABLE FSP-00000.A3787 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A3788 00000	-
107 - NO LONGER AVAILABLE FSP-00000.A3789 00000	-
108 - NO LONGER AVAILABLE FSP-00000.A3790 00000	-
109 - ABSOLUTE FILTER FSP-486241.A9 486241	£53.94	£64.73
110 - CLAMPING SCREW FSP-412092.A36 412092	£30.19	£36.23
111 - SUCTION HOSE FSP-500677.A59 500677	-
112 - CONNECTING SLEEVE FSP-577162.A71 577162	£16.25	£19.50
114 - T-PIECE FSP-4951.A21 4951	£42.57	£51.08
115 - HOSE FSP-10014024.A21 10014024	-
116 - NO LONGER AVAILABLE FSP-00000.A3774 00000	-
118 - TAPER FSP-439584.A5 439584	£46.09	£55.31
119 - NO LONGER AVAILABLE FSP-00000.A3781 00000	-
119 - NO LONGER AVAILABLE FSP-00000.A3782 00000	-
120 - NO LONGER AVAILABLE FSP-00000.A3783 00000	-
120 - NO LONGER AVAILABLE FSP-00000.A3784 00000	-
121 - SEALING RING FSP-412039.A28 412039	£60.31	£72.37
122 - NO LONGER AVAILABLE FSP-00000.A3775 00000	-
122 - NO LONGER AVAILABLE FSP-00000.A3776 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A3777 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A3778 00000	-
124 - NO LONGER AVAILABLE FSP-00000.A3779 00000	-
124 - NO LONGER AVAILABLE FSP-00000.A3780 00000	-
125 - TWO-PLY FILTER BAG FSP-487482.A8 487482	£72.01	£86.41
126 - NO LONGER AVAILABLE FSP-00000.A3772 00000	-
126 - NO LONGER AVAILABLE FSP-00000.A3773 00000	-
127 - WASHER 4.3 MM FSP-200576.A40 200576	£2.00	£2.40
128 - FLAP FSP-438702.A37 438702	£36.57	£43.88
129 - NO LONGER AVAILABLE FSP-00000.A3771 00000	-
130 - PLASTIC PLUG FSP-445211.A32 445211	-
131 - PLASTIC PLUG FSP-445210.A4 445210	£7.72	£9.26
132 - WHEEL FSP-445209.A32 445209	£20.94	£25.13
133 - GUIDE ROLL FSP-445212.A4 445212	£30.31	£36.37
134 - NO LONGER AVAILABLE FSP-00000.A3748 00000	-
