Festool CTM 36 E LE AC EU 220-240V / 498738 Spare Parts

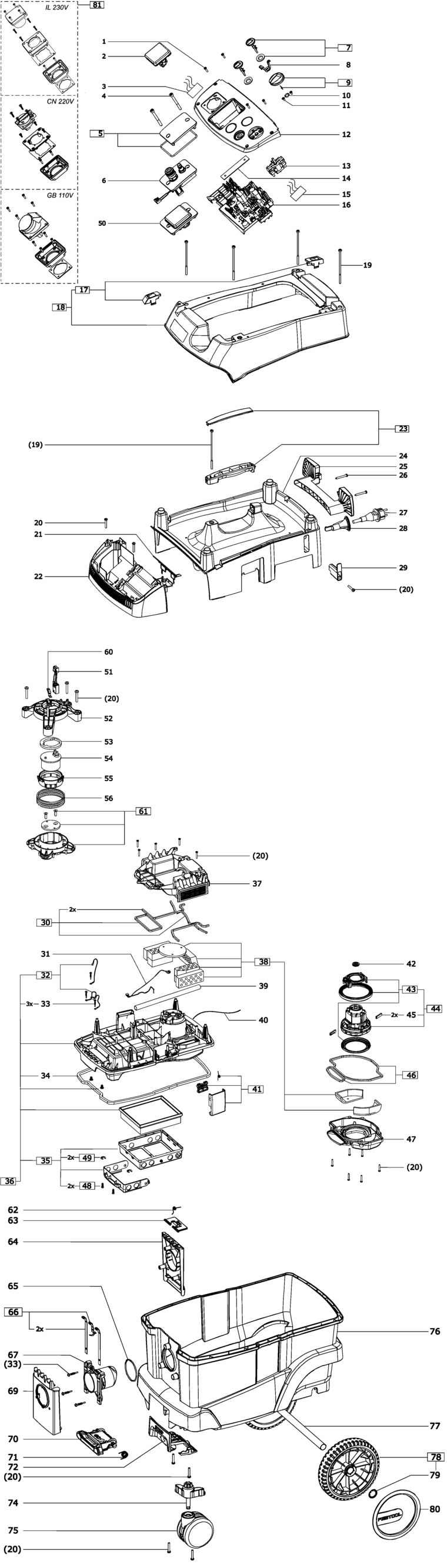

An exploded diagram and spare parts listing for the Festool CTM 36 E LE AC EU 220-240V / 498738

	Ex VAT	Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A8 452450	£2.00	£2.40
2 - SOCKET FSP-200531.A39 200531	£24.33	£29.20
3 - CABLE HARNESS FSP-201717.A73 201717	£7.37	£8.84
4 - CHEESE HEAD SCREW FSP-10737236.A95 10737236	£2.00	£2.40
5 - COVER FSP-496234.A121 496234	£21.08	£25.30
6 - COMPRESSED AIR MODULE DL CT26/36 FSP-496141.A32 496141	£169.22	£203.06
7 - ROTARY KNOB CT/CTL/CTM/CTH FSP-496249.A24 496249	£20.22	£24.26
9 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A142 496247	£18.84	£22.61
10 - O-RING FSP-10737044.A81 10737044	£2.00	£2.40
11 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A41 10737121	£2.00	£2.40
12 - CONVERSION KIT FSP-203962.A10 203962	£103.48	£124.18
13 - SWITCH AC FSP-498082.A12 498082	£21.53	£25.84
14 - BOARD SEGMENT FSP-200599.A75 200599	£4.24	£5.09
15 - CABLE HARNESS FSP-200628.A149 200628	£9.42	£11.31
16 - CONVERSION KIT FSP-203962.A9 203962	£103.48	£124.18
17 - CLAMP FSP-496236.A32 496236	£21.97	£26.36
18 - HOOD FSP-204040.A120 204040	£54.32	£65.19
19 - CHEESE HEAD SCREW FSP-10737262.A91 10737262	£2.00	£2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A247 452447	£2.00	£2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A248 452447	£2.00	£2.40
22 - HOUSING INSERT FSP-496238.A112 496238	£36.42	£43.71
23 - GRIP FSP-496244.A113 496244	£21.33	£25.60
24 - HOUSING FSP-496243.A28 496243	£44.81	£53.77
25 - CABLE HOLDER FSP-203722.A115 203722	£22.96	£27.55
26 - RAISED-HEAD SCREW FSP-10737172.A1 10737172	£2.00	£2.40
27 - NO LONGER AVAILABLE FSP-00000.A3285 00000	-
28 - NO LONGER AVAILABLE FSP-00000.A3286 00000	-
29 - CABLE CLAMP FSP-200586.A24 200586	£3.12	£3.75
30 - SUCTION HOOD FSP-496250.A133 496250	£39.98	£47.97
31 - CABLE HARNESS CTM / CTH FSP-496251.A1 496251	£30.95	£37.14
32 - FLEXIBLE LEAD PACK AUS / USA FSP-496773.A72 496773	£23.08	£27.70
33 - RAISED-HEAD SCREW FSP-467456.A29 467456	£2.00	£2.40
34 - CONTAINER SEAL FSP-201007.A165 201007	£26.55	£31.86
35 - FILTER HOLDER FSP-496255.A47 496255	£27.65	£33.18
36 - FILTER HOUSING FSP-201806.A40 201806	£105.38	£126.46
37 - COVER FSP-201975.A30 201975	£45.25	£54.30
38 - NOISE INSULATION FSP-496258.A103 496258	£39.34	£47.21
39 - CABLE BUSHING FSP-200584.A123 200584	£15.60	£18.72
40 - CABLE HARNESS FSP-200890.A27 200890	£28.75	£34.50
41 - CLAMP FSP-496262.A68 496262	£20.09	£24.11
42 - SOLENOID RING FSP-200594.A7 200594	£6.50	£7.80
44 - TURBINE 220-240V FSP-10494016.A72 10494016	£172.12	£206.55
45 - CARBON SET 220-240V FSP-496268.A65 496268	£38.81	£46.57
46 - SEAL KIT FSP-496256.A126 496256	£22.58	£27.10
51 - CABLE HARNESS FSP-200889.A95 200889	£24.95	£29.94
52 - HOLDER FSP-200855.A89 200855	£14.72	£17.67
52 - HOLDER FSP-200887.A96 200887	£40.42	£48.50
53 - DAMPENING RING FSP-200854.A49 200854	£19.35	£23.22
54 - SOLENOID FSP-200852.A43 200852	£55.30	£66.36
55 - MAGNETIC HOLDER FSP-200853.A97 200853	£12.42	£14.90
56 - SPRING FSP-201004.A142 201004	£18.57	£22.28
60 - SPRING PLATE FSP-200528.A101 200528	£17.98	£21.57
61 - VALVE COLLAR FSP-498827.A60 498827	£32.74	£39.29
64 - HOLDER FSP-200591.A7 200591	£7.87	£9.44
65 - NO LONGER AVAILABLE FSP-00000.A3281 00000	-
66 - CONTACT FSP-496221.A33 496221	£24.46	£29.35
67 - SLEEVE FSP-200568.A37 200568	£12.42	£14.90
69 - SCREEN CT36 FSP-496267.A59 496267	£20.09	£24.11
74 - SUPPORT FSP-200593.A115 200593	£9.80	£11.76
75 - ROLLER FSP-452840.A103 452840	£19.35	£23.22
76 - CONTAINER CT36 FSP-496232.A60 496232	£68.04	£81.65
77 - PIPE FSP-200571.A70 200571	£17.35	£20.82
79 - TOOTH RING FSP-202484.A174 202484	£2.87	£3.44
80 - WHEEL COVER FSP-200570.A49 200570	£9.49	£11.39
82 - BLANKING PLUG FSP-452899.A48 452899	£12.72	£15.27
83 - HANDLE FSP-497295.A8 497295	£122.53	£147.04
84 - HANDLE FSP-500253.A44 500253	£58.72	£70.47
85 - LOCKING LATCH FSP-200873.A70 200873	£11.92	£14.30
86 - SYS-ADAPTER FSP-768115.A18 768115	£32.72	£39.26
87 - GRIP FSP-500318.A23 500318	£16.84	£20.21
88 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A125 452449	£1.75	£2.10
89 - BRACKET FSP-35000546.A114 35000546	-
90 - HOUSING FSP-500320.A23 500320	£81.14	£97.37
91 - HOUSING INSERT FSP-496238.A263 496238	£36.42	£43.71
92 - CABLE CLAMP FSP-201023.A116 201023	£11.73	£14.08
93 - CONTAINER FSP-500321.A108 500321	£34.93	£41.92
94 - CONTAINER FSP-35000553.A13 35000553	-
95 - BRACKET FSP-500314.A31 500314	£17.98	£21.57
96 - CONTAINER FSP-500315.A50 500315	£128.52	£154.22
97 - WHEEL FSP-500316.A23 500316	£36.93	£44.32
98 - PEDAL FSP-500317.A159 500317	£26.82	£32.19
9999 - NO LONGER AVAILABLE FSP-00000.A3280 00000	-
