Festool CTM 36 E AC-LHS FL / 202448 Spare Parts

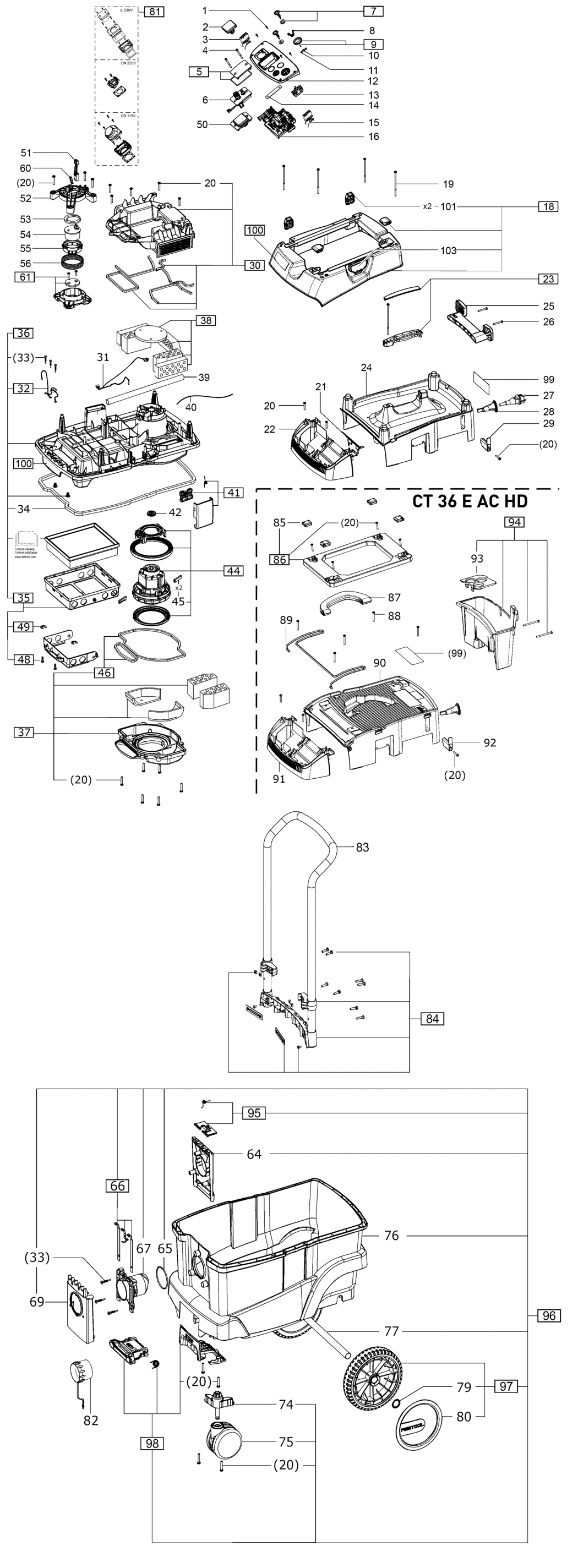

An exploded diagram and spare parts listing for the Festool CTM 36 E AC-LHS FL / 202448

	Ex VAT	Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A63 452450	£2.00	£2.40
2 - SOCKET FSP-200531.A74 200531	£24.33	£29.20
2 - CABLE WITH PLUG FSP-200809.A0 200809	£64.02	£76.83
3 - CABLE HARNESS FSP-201717.A131 201717	£7.37	£8.84
4 - CHEESE HEAD SCREW FSP-10737236.A22 10737236	£2.00	£2.40
5 - COVER FSP-496234.A51 496234	£21.08	£25.30
7 - ROTARY KNOB CT/CTL/CTM/CTH FSP-496249.A100 496249	£20.22	£24.26
9 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A61 496247	£18.84	£22.61
10 - O-RING FSP-10737044.A126 10737044	£2.00	£2.40
11 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A147 10737121	£2.00	£2.40
12 - SCREEN FSP-203972.A0 203972	£33.81	£40.57
13 - SWITCH AC FSP-498082.A70 498082	£21.53	£25.84
14 - BOARD SEGMENT FSP-200599.A117 200599	£4.24	£5.09
15 - CABLE HARNESS FSP-200628.A23 200628	£9.42	£11.31
16 - ELECTRONIC FSP-203977.A2 203977	£196.44	£235.73
17 - CLAMP FSP-496236.A100 496236	£21.97	£26.36
18 - HOOD FSP-204040.A61 204040	£54.32	£65.19
19 - CHEESE HEAD SCREW FSP-10737262.A168 10737262	£2.00	£2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A45 452447	£2.00	£2.40
22 - HOUSING INSERT FSP-496238.A51 496238	£36.42	£43.71
23 - GRIP FSP-496244.A52 496244	£21.33	£25.60
24 - HOUSING FSP-496243.A90 496243	£44.81	£53.77
25 - CABLE HOLDER FSP-203722.A71 203722	£22.96	£27.55
26 - RAISED-HEAD SCREW FSP-10737172.A92 10737172	£2.00	£2.40
27 - CABLE WITH PLUG FSP-200639.A29 200639	£64.02	£76.83
27 - NO LONGER AVAILABLE FSP-00000.A6453 00000	-
28 - INLET BUSH FSP-200590.A52 200590	£8.12	£9.74
29 - CABLE CLAMP FSP-200586.A76 200586	£3.12	£3.75
30 - SUCTION HOOD FSP-496250.A61 496250	£39.98	£47.97
31 - CABLE HARNESS CTM / CTH FSP-496251.A28 496251	£30.95	£37.14
32 - FLEXIBLE LEAD PACK AUS / USA FSP-496773.A105 496773	£23.08	£27.70
33 - RAISED-HEAD SCREW FSP-467456.A169 467456	£2.00	£2.40
34 - CONTAINER SEAL FSP-201007.A24 201007	£26.55	£31.86
35 - FILTER HOLDER FSP-496255.A126 496255	£27.65	£33.18
36 - FILTER HOUSING FSP-201806.A47 201806	£105.38	£126.46
37 - COVER FSP-201975.A127 201975	£45.25	£54.30
38 - NOISE INSULATION FSP-496258.A64 496258	£39.34	£47.21
39 - CABLE BUSHING FSP-200584.A67 200584	£15.60	£18.72
40 - CABLE HARNESS FSP-200565.A69 200565	£8.48	£10.18
40 - CABLE HARNESS FSP-200890.A48 200890	£28.75	£34.50
41 - CLAMP FSP-496262.A109 496262	£20.09	£24.11
42 - SOLENOID RING FSP-200594.A54 200594	£6.50	£7.80
44 - TURBINE 220-240V FSP-10494016.A103 10494016	£172.12	£206.55
45 - CARBON SET 220-240V FSP-496268.A98 496268	£38.81	£46.57
46 - SEAL KIT FSP-496256.A47 496256	£22.58	£27.10
51 - CABLE HARNESS FSP-200889.A52 200889	£24.95	£29.94
52 - HOLDER FSP-200855.A19 200855	£14.72	£17.67
52 - HOLDER FSP-200887.A44 200887	£40.42	£48.50
53 - DAMPENING RING FSP-200854.A134 200854	£19.35	£23.22
54 - SOLENOID FSP-200852.A121 200852	£55.30	£66.36
55 - MAGNETIC HOLDER FSP-200853.A18 200853	£12.42	£14.90
55 - NO LONGER AVAILABLE FSP-00000.A6451 00000	-
56 - SPRING FSP-201004.A19 201004	£18.57	£22.28
60 - SPRING PLATE FSP-200528.A56 200528	£17.98	£21.57
61 - VALVE COLLAR FSP-498827.A127 498827	£32.74	£39.29
64 - HOLDER FSP-200591.A96 200591	£7.87	£9.44
65 - GASKET FSP-200574.A31 200574	£4.06	£4.87
66 - CONTACT FSP-496221.A108 496221	£24.46	£29.35
67 - SLEEVE FSP-200568.A94 200568	£12.42	£14.90
69 - SCREEN CT36 FSP-496267.A38 496267	£20.09	£24.11
74 - SUPPORT FSP-200593.A56 200593	£9.80	£11.76
75 - ROLLER FSP-452840.A215 452840	£19.35	£23.22
76 - CONTAINER CT36 FSP-496232.A20 496232	£68.04	£81.65
77 - PIPE FSP-200571.A29 200571	£17.35	£20.82
79 - TOOTH RING FSP-202484.A28 202484	£2.87	£3.44
80 - WHEEL COVER FSP-200570.A122 200570	£9.49	£11.39
82 - BLANKING PLUG FSP-452899.A168 452899	£12.72	£15.27
83 - DESCRIPTION UNAVAILABLE FSP-000000.A207 000000	-
84 - HANDLE FSP-500253.A100 500253	£58.72	£70.47
85 - LOCKING LATCH FSP-200873.A136 200873	£11.92	£14.30
86 - DESCRIPTION UNAVAILABLE FSP-000000.A208 000000	-
87 - GRIP FSP-500318.A88 500318	£16.84	£20.21
88 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A24 452449	£1.75	£2.10
89 - BRACKET FSP-35000546.A51 35000546	-
90 - HOUSING FSP-500320.A88 500320	£81.14	£97.37
91 - HOUSING INSERT FSP-496238.A252 496238	£36.42	£43.71
92 - CABLE CLAMP FSP-201023.A25 201023	£11.73	£14.08
93 - CONTAINER FSP-500321.A42 500321	£34.93	£41.92
94 - CONTAINER FSP-35000553.A76 35000553	-
95 - BRACKET FSP-500314.A137 500314	£17.98	£21.57
96 - CONTAINER FSP-500315.A13 500315	£128.52	£154.22
97 - WHEEL FSP-500316.A89 500316	£36.93	£44.32
98 - PEDAL FSP-500317.A66 500317	£26.82	£32.19
99 - WARNING PLATE FSP-477177.A54 477177	£3.12	£3.75
100 - NAMEPLATE FSP-717465.A8 717465	£1.75	£2.10
101 - LOCKING LATCH FSP-200534.A62 200534	£8.99	£10.79
103 - CLOSURE SYS TL KPL- SG2-T01-002 FSP-497819.A19 497819	£14.99	£17.99
