Festool CT 26 E AC EU 220-240V / 498717 Spare Parts

Festool CT 26 E AC EU 220-240V / 498717 Spare Parts
Home Details Reviews Delivery

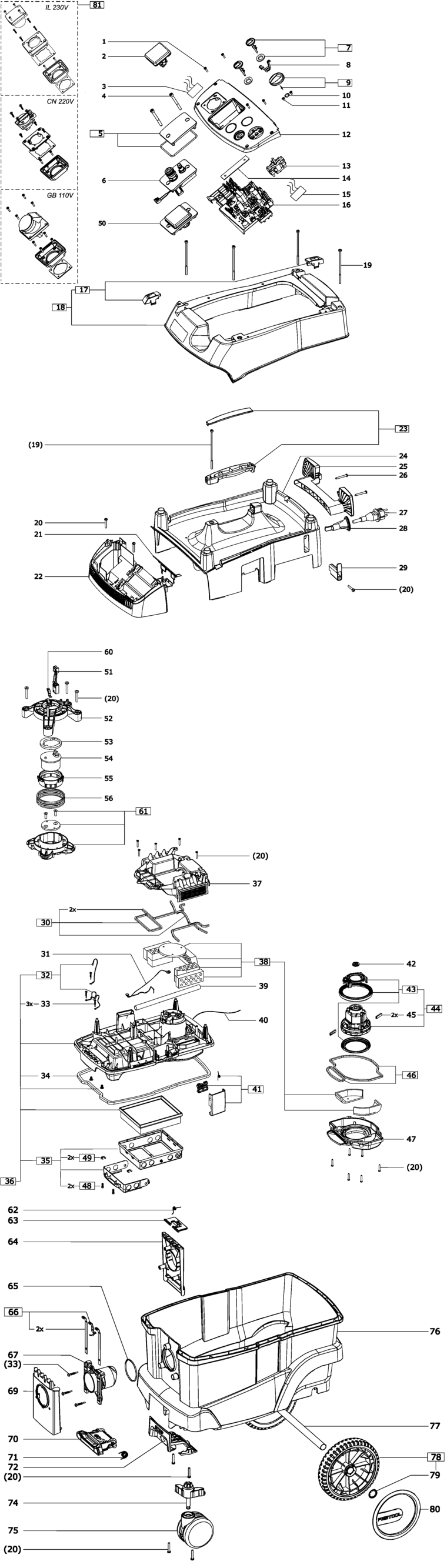

An exploded diagram and spare parts listing for the Festool CT 26 E AC EU 220-240V / 498717
Ex VAT Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A26 452450 £2.00 £2.40
2 - SOCKET FSP-200531.A46 200531 £24.33 £29.20
3 - CABLE HARNESS FSP-201717.A53 201717 £7.37 £8.84
4 - CHEESE HEAD SCREW FSP-10737236.A92 10737236 £2.00 £2.40
5 - COVER FSP-496234.A132 496234 £21.08 £25.30
7 - ROTARY KNOB CT/CTL/CTM/CTH FSP-496249.A18 496249 £20.22 £24.26
9 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A146 496247 £18.84 £22.61
10 - O-RING FSP-10737044.A67 10737044 £2.00 £2.40
11 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A25 10737121 £2.00 £2.40
12 - SCREEN CTL AC FSP-498079.A22 498079 £24.99 £29.99
13 - SWITCH AC FSP-498082.A25 498082 £21.53 £25.84
14 - BOARD SEGMENT FSP-200599.A40 200599 £4.24 £5.09
15 - CABLE HARNESS FSP-200628.A125 200628 £9.42 £11.31
16 - ELECTRONIC FSP-203974.A14 203974 £141.66 £169.99
17 - CLAMP FSP-496236.A20 496236 £21.97 £26.36
18 - HOOD FSP-204040.A139 204040 £54.32 £65.19
19 - CHEESE HEAD SCREW FSP-10737262.A49 10737262 £2.00 £2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A212 452447 £2.00 £2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A213 452447 £2.00 £2.40
22 - HOUSING INSERT FSP-496238.A121 496238 £36.42 £43.71
23 - GRIP FSP-496244.A122 496244 £21.33 £25.60
24 - HOUSING FSP-496243.A19 496243 £44.81 £53.77
25 - CABLE HOLDER FSP-203722.A110 203722 £22.96 £27.55
26 - RAISED-HEAD SCREW FSP-10737172.A33 10737172 £2.00 £2.40
27 - CABLE WITH PLUG FSP-200639.A111 200639 £64.02 £76.83
27 - NO LONGER AVAILABLE FSP-00000.A3217 00000 -
28 - INLET BUSH FSP-200590.A80 200590 £8.12 £9.74
29 - CABLE CLAMP FSP-200586.A0 200586 £3.12 £3.75
30 - SUCTION HOOD FSP-496250.A137 496250 £39.98 £47.97
32 - FLEXIBLE LEAD PACK AUS / USA FSP-496773.A55 496773 £23.08 £27.70
33 - RAISED-HEAD SCREW FSP-467456.A0 467456 £2.00 £2.40
34 - CONTAINER SEAL FSP-201007.A145 201007 £26.55 £31.86
35 - FILTER HOLDER FSP-496255.A3 496255 £27.65 £33.18
36 - FILTER HOUSING FSP-201806.A30 201806 £105.38 £126.46
37 - COVER FSP-201975.A0 201975 £45.25 £54.30
38 - NOISE INSULATION FSP-496258.A127 496258 £39.34 £47.21
39 - CABLE BUSHING FSP-200584.A149 200584 £15.60 £18.72
40 - CABLE HARNESS FSP-200890.A38 200890 £28.75 £34.50
41 - CLAMP FSP-496262.A42 496262 £20.09 £24.11
44 - TURBINE 220-240V FSP-10494016.A62 10494016 £172.12 £206.55
45 - CARBON SET 220-240V FSP-496268.A54 496268 £38.81 £46.57
46 - SEAL KIT FSP-496256.A166 496256 £22.58 £27.10
51 - CABLE HARNESS FSP-200889.A76 200889 £24.95 £29.94
52 - HOLDER FSP-200855.A69 200855 £14.72 £17.67
52 - HOLDER FSP-200887.A80 200887 £40.42 £48.50
53 - DAMPENING RING FSP-200854.A77 200854 £19.35 £23.22
54 - SOLENOID FSP-200852.A67 200852 £55.30 £66.36
55 - MAGNETIC HOLDER FSP-200853.A72 200853 £12.42 £14.90
56 - SPRING FSP-201004.A115 201004 £18.57 £22.28
60 - SPRING PLATE FSP-200528.A90 200528 £17.98 £21.57
61 - VALVE COLLAR FSP-498827.A50 498827 £32.74 £39.29
64 - HOLDER FSP-200591.A45 200591 £7.87 £9.44
65 - GASKET FSP-200574.A102 200574 £4.06 £4.87
66 - CONTACT FSP-496221.A23 496221 £24.46 £29.35
67 - SLEEVE FSP-200568.A24 200568 £12.42 £14.90
75 - ROLLER FSP-452840.A79 452840 £19.35 £23.22
79 - TOOTH RING FSP-202484.A128 202484 £2.87 £3.44
80 - WHEEL COVER FSP-200570.A65 200570 £9.49 £11.39
82 - BLANKING PLUG FSP-452899.A24 452899 £12.72 £15.27
83 - HANDLE FSP-497295.A1 497295 £122.53 £147.04
84 - HANDLE FSP-500253.A25 500253 £58.72 £70.47
85 - LOCKING LATCH FSP-200873.A57 200873 £11.92 £14.30
86 - SYS-ADAPTER FSP-768115.A30 768115 £32.72 £39.26
87 - GRIP FSP-500318.A2 500318 £16.84 £20.21
88 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A113 452449 £1.75 £2.10
89 - BRACKET FSP-35000546.A95 35000546 -
90 - HOUSING FSP-500320.A2 500320 £81.14 £97.37
91 - HOUSING INSERT FSP-496238.A145 496238 £36.42 £43.71
92 - CABLE CLAMP FSP-201023.A112 201023 £11.73 £14.08
93 - CONTAINER FSP-500321.A129 500321 £34.93 £41.92
94 - CONTAINER FSP-35000553.A32 35000553 -
95 - BRACKET FSP-500314.A1 500314 £17.98 £21.57
96 - CONTAINER FSP-500327.A2 500327 £114.03 £136.84
97 - WHEEL FSP-500316.A2 500316 £36.93 £44.32
98 - PEDAL FSP-500317.A190 500317 £26.82 £32.19
99 - WARNING PLATE FSP-10737100.A51 10737100 £2.00 £2.40
100 - NAMEPLATE FSP-476627.A4 476627 -
