Festool MX 1200/2 E EF / 768704 Spare Parts

Home Details Reviews Delivery

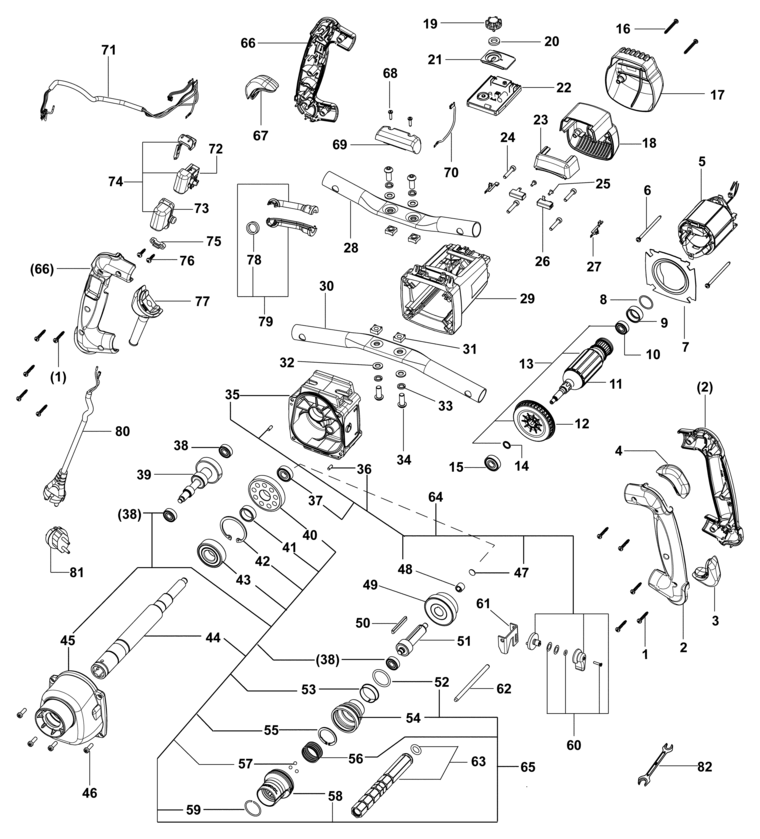

An exploded diagram and spare parts listing for the Festool MX 1200/2 E EF / 768704

	Ex VAT	Inc VAT
1 - SCREW 4.0 X 25 MM FSP-614772.A1 614772	£2.00	£2.40
2 - GRIP FSP-769777.A1 769777	£26.82	£32.19
3 - SHOCK ABSORBER FSP-768585.A2 768585	£5.99	£7.19
4 - SHOCK ABSORBER FSP-768586.A7 768586	£5.99	£7.19
5 - FIELD ASSEMBLY FSP-766497.A0 766497	£44.85	£53.82
6 - SCREW 4.0 X 60 MM FSP-614776.A0 614776	£2.00	£2.40
7 - AIR GUIDE WASHER FSP-620693.A3 620693	£2.00	£2.40
8 - O-RING FSP-614992.A2 614992	£2.00	£2.40
9 - BEARING RING FSP-438613.A70 438613	£2.00	£2.40
10 - BEARING FSP-630466.A2 630466	£7.99	£9.59
11 - ARMATURE FSP-766205.A0 766205	£120.52	£144.62
12 - FAN FSP-445205.A8 445205	£9.73	£11.68
13 - ARMATURE SET FSP-769426.A0 769426	£118.79	£142.55
14 - SPACER RING FSP-765877.A0 765877	£4.75	£5.70
15 - BEARING FSP-763543.A8 763543	£5.24	£6.29
16 - SCREW 4.0 X 35 MM FSP-614773.A3 614773	£2.00	£2.40
17 - COVER CAP FSP-768686.A3 768686	£6.42	£7.71
18 - CAP FSP-768224.A3 768224	£6.39	£7.67
19 - ADJUSTING KNOB FSP-440991.A21 440991	£5.24	£6.29
20 - SEALING RING FSP-438509.A2 438509	£2.00	£2.40
21 - LENS FSP-768873.A1 768873	£3.88	£4.65
22 - ELECTRONIC FSP-766210.A0 766210	£58.25	£69.90
23 - ENCLOSURE FSP-768223.A2 768223	£3.68	£4.42
24 - SCREW M5 X 25 FSP-614860.A0 614860	£2.00	£2.40
25 - SCREW FSP-625071.A8 625071	£2.00	£2.40
26 - CARBON BRUSH (PAIR) FSP-627004.A1 627004	£10.17	£12.20
27 - PLUG-IN BRACKET FSP-443331.A14 443331	£2.00	£2.40
28 - SIDE PANEL FSP-768632.A3 768632	£61.08	£73.29
29 - MOTOR HOUSING FSP-768230.A0 768230	£16.72	£20.06
30 - SIDE PANEL FSP-768633.A0 768633	£52.12	£62.54
31 - NUT M8 FSP-614473.A3 614473	£2.00	£2.40
32 - BRUSH HOLDER FSP-761317.A0 761317	£2.00	£2.40
33 - WASHER FSP-615028.A2 615028	£2.00	£2.40
34 - SCREW FSP-767120.A1 767120	£2.00	£2.40
35 - BEARING COVER FSP-768687.A1 768687	£62.98	£75.57
36 - PIN FSP-614988.A6 614988	£2.00	£2.40
37 - BEARING FSP-615493.A0 615493	£6.39	£7.67
38 - BEARING FSP-763547.A3 763547	£3.20	£3.84
39 - TRANSMISSION FSP-765873.A0 765873	£47.88	£57.45
40 - SPINDLE WHEEL FSP-60403582.A0 60403582	-
41 - DISTANCE TUBE FSP-765876.A3 765876	£5.43	£6.52
42 - SNAP RING FSP-614804.A11 614804	£2.00	£2.40
43 - BEARING FSP-614999.A7 614999	£10.37	£12.44
44 - OUTPUT SHAFT FSP-10003803.A3 10003803	£76.44	£91.73
45 - GEAR HOUSING FSP-768706.A1 768706	£42.69	£51.23
46 - SCREW M5 X 16 FSP-614859.A1 614859	£2.00	£2.40
47 - SUPPORTING RING FSP-592433.A2 592433	£2.00	£2.40
48 - NEEDLE BUSHING FSP-614934.A3 614934	£3.14	£3.77
49 - SPINDLE FSP-620710.A2 620710	£58.01	£69.61
50 - FEATHER KEY FSP-592443.A2 592443	£4.49	£5.39
51 - PINION FSP-620709.A1 620709	£42.78	£51.34
52 - O-RING FSP-401162.A4 401162	£2.00	£2.40
53 - SLIDING SLEEVE FSP-10001347.A7 10001347	£2.00	£2.40
54 - SEALING LIP FSP-764180.A2 764180	£4.69	£5.63
55 - SNAP RING FSP-764184.A1 764184	£3.71	£4.45
56 - SPRING FSP-10000545.A1 10000545	£2.00	£2.40
57 - BALL FSP-614486.A0 614486	£2.00	£2.40
58 - RING FSP-768594.A5 768594	£6.68	£8.01
59 - LOCK WASHER FSP-625048.A1 625048	£2.00	£2.40
60 - CONTROL GEAR. CPL. FSP-769420.A0 769420	£3.68	£4.42
61 - CONNECTING MEMBER FSP-765885.A2 765885	£7.62	£9.14
62 - TENONS FSP-620697.A2 620697	£5.31	£6.37
63 - ADAPTER FSP-769091.A3 769091	£13.56	£16.27
64 - BEARING COVER. CPL. FSP-769422.A0 769422	£70.51	£84.61
65 - GEAR HOUSING FSP-769423.A0 769423	£110.26	£132.31
66 - GRIP FSP-769778.A3 769778	£25.70	£30.84
67 - SHOCK ABSORBER FSP-768553.A3 768553	£5.99	£7.19
68 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A10 400468	£2.00	£2.40
69 - CLIP FSP-768703.A1 768703	£2.00	£2.40
70 - WIRE FSP-620376.A0 620376	£4.58	£5.49
71 - COUPLER FSP-10035758.A3 10035758	£23.34	£28.01
72 - SWITCH FSP-768875.A6 768875	£28.00	£33.60
73 - SWITCH COVER FSP-10040054.A2 10040054	£2.00	£2.40
74 - SWITCH FSP-769424.A3 769424	£24.46	£29.35
75 - CLIP FSP-619112.A10 619112	£2.00	£2.40
76 - SCREW 4 X 16 MM FSP-625697.A9 625697	£2.00	£2.40
77 - CABLE CONDUIT FSP-768207.A2 768207	£4.72	£5.66
78 - LINER MXP 1202 FSP-10002818.A0 10002818	£2.00	£2.40
79 - CONNECTING SLEEVE FSP-769425.A0 769425	£5.99	£7.19
80 - MAINS CABLE FSP-10017768.A0 10017768	£25.08	£30.09
81 - ADAPTER PLUG FSP-767469.A7 767469	-
82 - DOUBLE OPEN-ENDED WRENCH FSP-765735.A5 765735	£10.69	£12.83

Attribute Name	Value
Brand	Festool
