Festool MS 57 / 768209 Spare Parts

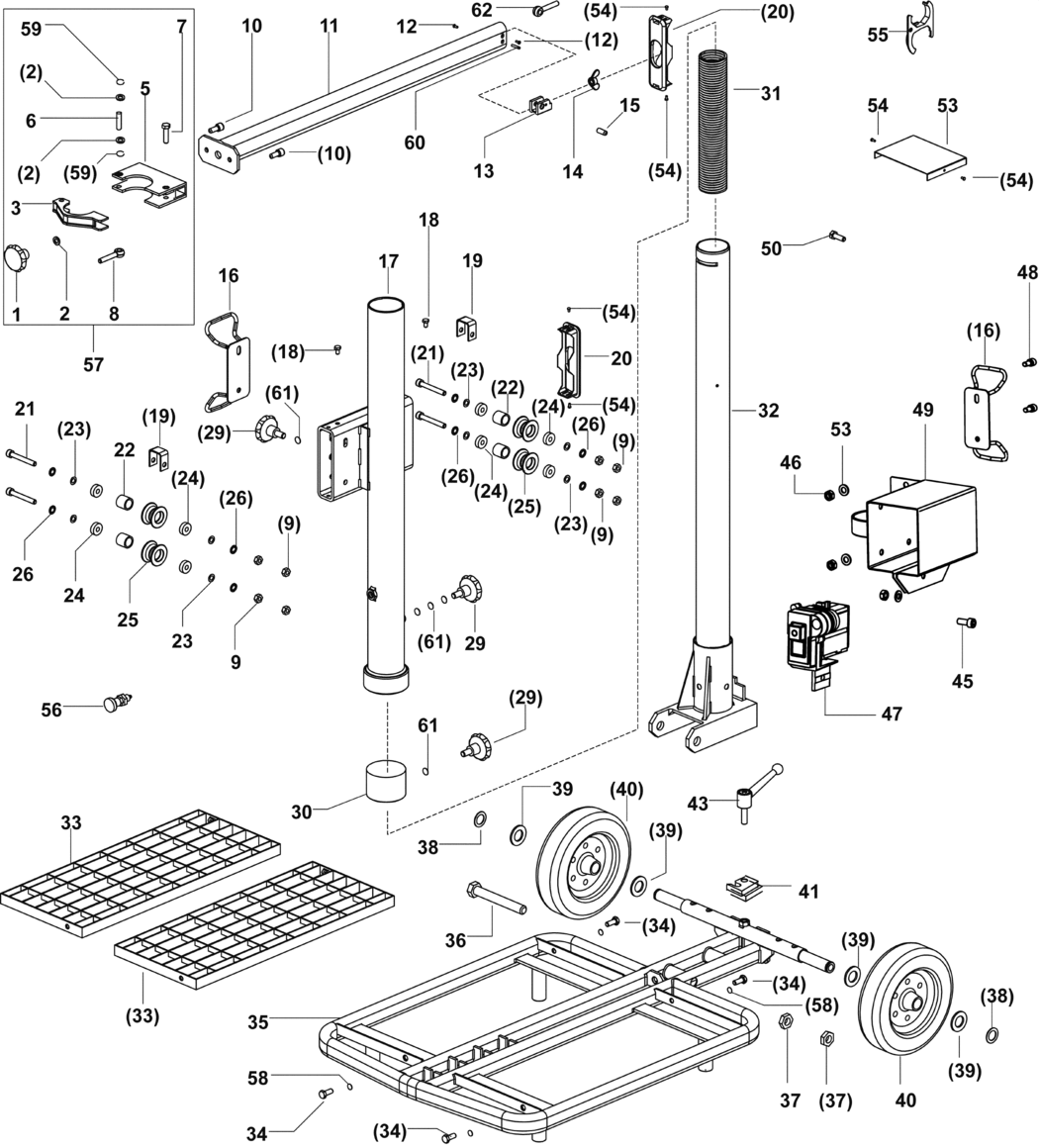

An exploded diagram and spare parts listing for the Festool MS 57 / 768209

	Ex VAT	Inc VAT
1 - KNURLED NUT FSP-624842.A0 624842	£4.25	£5.10
2 - WASHER FSP-615436.A0 615436	£2.00	£2.40
3 - CLAMP FSP-618456.A0 618456	£44.02	£52.82
5 - CLAMP FSP-618453.A0 618453	£51.32	£61.59
6 - TENONS FSP-618484.A0 618484	£5.18	£6.22
7 - HEXAGON SCREW M8 X 30 FSP-228644.A0 228644	£2.00	£2.40
8 - SCREW FSP-618449.A0 618449	£7.99	£9.59
9 - NUT M8 FSP-618497.A0 618497	£2.00	£2.40
10 - SCREW FSP-617313.A0 617313	£2.00	£2.40
11 - ARM FSP-618463.A0 618463	£27.08	£32.49
12 - SCREW FSP-619588.A0 619588	£2.00	£2.40
13 - BRACKET FSP-618477.A0 618477	£8.18	£9.81
14 - NUT FSP-618466.A0 618466	£2.00	£2.40
15 - PIN FSP-627254.A0 627254	£2.00	£2.40
16 - CABLE HOLDER FSP-618451.A0 618451	£6.93	£8.32
17 - SUPPORT FSP-618503.A0 618503	£113.61	£136.33
18 - SCREW FSP-618482.A0 618482	£2.00	£2.40
19 - BRACKET FSP-624517.A0 624517	£5.09	£6.11
20 - PLUG FSP-767808.A0 767808	£8.36	£10.03
21 - SCREW FSP-624243.A0 624243	£2.00	£2.40
22 - PIPE FSP-624620.A0 624620	£2.98	£3.58
23 - WASHER FSP-624621.A0 624621	£2.00	£2.40
24 - BEARING FSP-614958.A0 614958	£4.81	£5.77
25 - ROLLER FSP-624516.A0 624516	£12.21	£14.65
26 - WASHER FSP-624622.A0 624622	£2.00	£2.40
29 - SCREW FSP-624841.A0 624841	£4.25	£5.10
30 - SAFETY CATCH FSP-618494.A0 618494	£11.61	£13.93
31 - PRESSURE SPRING FSP-618307.A0 618307	£38.92	£46.71
32 - PIPE FSP-618523.A0 618523	£209.24	£251.09
33 - GRID FSP-618397.A0 618397	£49.30	£59.16
34 - HEXAGON SCREW FSP-761427.A0 761427	£2.00	£2.40
35 - SIDE PANEL FSP-618287.A0 618287	£136.43	£163.72
36 - SCREW FSP-618579.A0 618579	£6.93	£8.32
37 - NUT FSP-618580.A0 618580	£48.45	£58.14
38 - RING FSP-618575.A0 618575	£2.00	£2.40
39 - WASHER FSP-618574.A0 618574	£2.00	£2.40
40 - WHEEL FSP-618573.A0 618573	£45.81	£54.97
41 - CATCH FSP-624526.A0 624526	£11.38	£13.65
43 - LEVER FSP-618509.A0 618509	£53.04	£63.65
45 - CHEESE HEAD SCREW M8 X 20 FSP-200692.A5 200692	£2.00	£2.40
46 - NUT FSP-624843.A0 624843	£2.00	£2.40
47 - SWITCH ELEMENT EU 230V FSP-498891.A1 498891	£102.79	£123.35
48 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A27 200201	£2.00	£2.40
49 - COVER FSP-10226838.A0 10226838	-
50 - SCREW M8 X 25 FSP-617376.A0 617376	£2.00	£2.40
51 - WASHER FSP-615436.A1 615436	£2.00	£2.40
53 - WASHER FSP-761517.A2 761517	£2.00	£2.40
55 - NO LONGER AVAILABLE FSP-00000.A3273 00000	-
56 - TENONS FSP-618506.A0 618506	-
57 - CLAMP FSP-620059.A0 620059	£99.34	£119.21
58 - SPRING DISC FSP-623459.A0 623459	£2.00	£2.40
59 - SNAP RING FSP-200617.A40 200617	£2.00	£2.40
60 - PIN FSP-615446.A0 615446	£2.00	£2.40
61 - GASKET FSP-623460.A0 623460	£2.00	£2.40
62 - SCREW FSP-623437.A0 623437	£15.97	£19.16
