Festool TPE-RS1 / 489914 Spare Parts

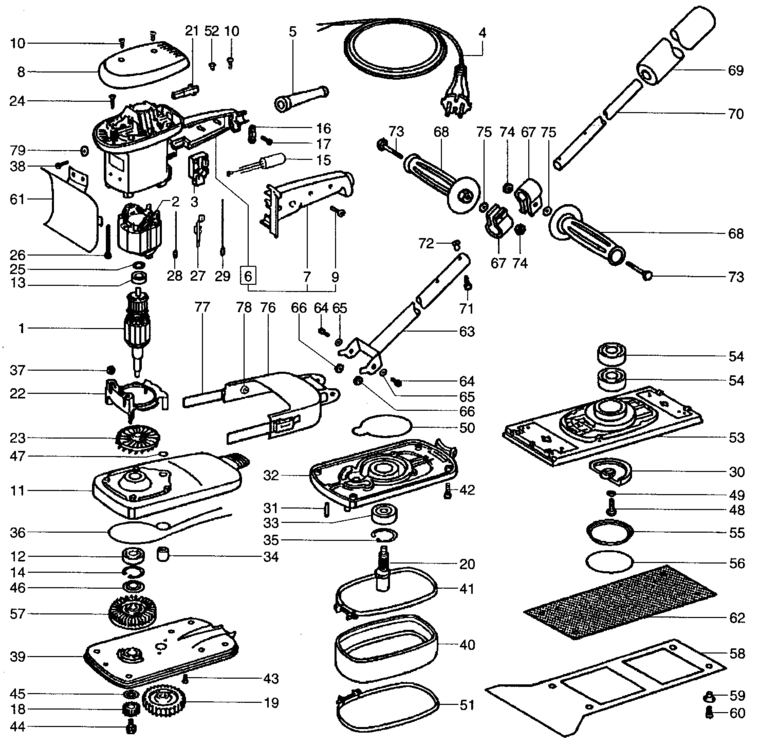

An exploded diagram and spare parts listing for the Festool TPE-RS1 / 489914

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492439.A1 492439	£71.53	£85.84
2 - FIELD ASSEMBLY 230 V FSP-492442.A8 492442	£55.39	£66.47
3 - SWITCH ATTACHMENT FSP-486317.A28 486317	£15.47	£18.56
4 - MAINS CABLE GB 240V FSP-441749.A25 441749	£25.08	£30.09
4 - CABLE EU FSP-457600.A54 457600	£25.08	£30.09
5 - CABLE CONDUIT FSP-432436.A114 432436	£2.00	£2.40
6 - MOTOR HOUSING FSP-487834.A16 487834	£38.68	£46.42
7 - COVER FSP-451402.A2 451402	£6.97	£8.36
8 - CAP RS 3 FSP-451430.A3 451430	£6.46	£7.75
9 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A57 228567	£2.00	£2.40
10 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A100 219031	£2.00	£2.40
11 - BEARING COVER FSP-439839.A0 439839	£62.14	£74.57
12 - BALL BEARING FSP-228659.A4 228659	£7.68	£9.21
13 - BALL BEARING FSP-401524.A16 401524	£4.82	£5.78
14 - SNAP RING FSP-401246.A29 401246	£2.00	£2.40
15 - CAPACITOR FSP-436753.A17 436753	£12.76	£15.31
16 - CABLE CLAMP FSP-439288.A71 439288	£2.00	£2.40
17 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A181 228663	£2.00	£2.40
18 - PINION FSP-442267.A1 442267	£31.44	£37.73
19 - GEAR FSP-485618.A0 485618	£25.08	£30.09
20 - ECCENTRIC SHAFT FSP-441381.A2 441381	£64.02	£76.83
21 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A54 488915	£19.04	£22.85
22 - AIR GUIDE WASHER FSP-443109.A2 443109	£2.00	£2.40
23 - FAN FSP-436451.A10 436451	£2.00	£2.40
24 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A2 228569	£2.00	£2.40
25 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A18 203777	£2.00	£2.40
26 - RAISED-HEAD SCREW 4.0 X 40 MM FSP-219080.A11 219080	£2.00	£2.40
27 - PLUG-IN BRACKET FSP-443331.A59 443331	£2.00	£2.40
28 - FLEXIBLE LEAD FSP-434527.A8 434527	£2.00	£2.40
29 - FLEXIBLE LEAD FSP-434865.A7 434865	£2.00	£2.40
30 - WEIGHT FSP-441059.A4 441059	£31.50	£37.80
31 - CYLINDER PIN FSP-773881.A2 773881	£2.00	£2.40
32 - GEAR HOUSING FSP-435509.A1 435509	£63.85	£76.62
33 - BALL BEARING FSP-228524.A6 228524	£12.38	£14.86
34 - NEEDLE BEARING FSP-410226.A1 410226	£17.57	£21.08
35 - SNAP RING FSP-401251.A6 401251	£2.00	£2.40
36 - PACKING CORD FSP-437499.A5 437499	£3.45	£4.14
37 - HEXAGON NUT M4 FSP-200715.A2 200715	£2.00	£2.40
38 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A11 445566	£2.00	£2.40
39 - PLATE FSP-482524.A2 482524	£44.81	£53.77
40 - COLLAR FSP-435475.A1 435475	£13.86	£16.63
41 - CLIP FSP-410423.A7 410423	£6.88	£8.25
42 - RAISED-HEAD SCREW M5 X 25 FSP-228516.A8 228516	£2.00	£2.40
43 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A23 228582	£2.00	£2.40
44 - HEXAGON SCREW M6 X 15 FSP-228517.A2 228517	£2.00	£2.40
45 - CENTRIFUGAL WASHER FSP-437064.A1 437064	£2.00	£2.40
46 - CENTRIFUGAL WASHER FSP-437086.A6 437086	£2.00	£2.40
47 - ISOLATING DISC FSP-437102.A1 437102	£2.00	£2.40
48 - CHEESE HEAD SCREW M6 X 18 FSP-223541.A17 223541	£2.00	£2.40
49 - SPRING DISC FSP-200765.A11 200765	£2.00	£2.40
50 - PACKING CORD FSP-437292.A5 437292	£2.00	£2.40
51 - TERMINAL FSP-437884.A1 437884	£6.80	£8.16
52 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A101 219031	£2.00	£2.40
53 - PLATE FSP-440469.A6 440469	£67.91	£81.49
54 - BALL BEARING FSP-228523.A1 228523	£9.62	£11.55
55 - CAP FSP-435510.A4 435510	£11.65	£13.98
56 - O-RING FSP-228551.A4 228551	£2.00	£2.40
57 - FAN FSP-435496.A5 435496	£24.47	£29.36
58 - CARPET REMOVER-BLADE FSP-486374.A1 486374	-
59 - INSERT FSP-442664.A1 442664	£3.32	£3.98
60 - FLAT HEAD SCREW M4 X 12 FSP-445148.A1 445148	£2.00	£2.40
61 - DEFLECTOR FSP-442662.A1 442662	£29.23	£35.08
62 - FILTER FSP-444486.A0 444486	£36.87	£44.24
63 - FORK PIECE FSP-442676.A0 442676	£42.65	£51.18
64 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A9 774346	£2.00	£2.40
65 - WASHER 8.4 MM FSP-219049.A37 219049	£2.00	£2.40
66 - HEXAGON NUT M8 FSP-200719.A17 200719	£2.00	£2.40
67 - CLAMPING ELEMENT FSP-442961.A2 442961	£18.84	£22.61
68 - HANDLE FSP-444511.A1 444511	£7.38	£8.86
69 - CUSHION FSP-443621.A2 443621	£34.19	£41.03
70 - HANDLE FSP-444453.A2 444453	£45.28	£54.34
71 - CHEESE HEAD SCREW M6 X 20 FSP-402875.A2 402875	£2.00	£2.40
72 - SLEEVE NUT FSP-444452.A0 444452	£3.50	£4.20
73 - HEXAGON SCREW M10 X 60 FSP-772638.A1 772638	£2.00	£2.40
74 - HEXAGON NUT M10 FSP-772975.A4 772975	£2.00	£2.40
75 - WASHER FSP-207804.A0 207804	£2.00	£2.40
76 - CLAMPING ELEMENT FSP-487090.A0 487090	£69.83	£83.80
77 - CLOSURE FSP-443228.A1 443228	£19.03	£22.84
78 - RIVET FSP-400016.A0 400016	£2.00	£2.40
79 - WASHER 4.3 MM FSP-228542.A35 228542	£2.00	£2.40
