Festool DF 700 EQ 230V / 497647 Spare Parts

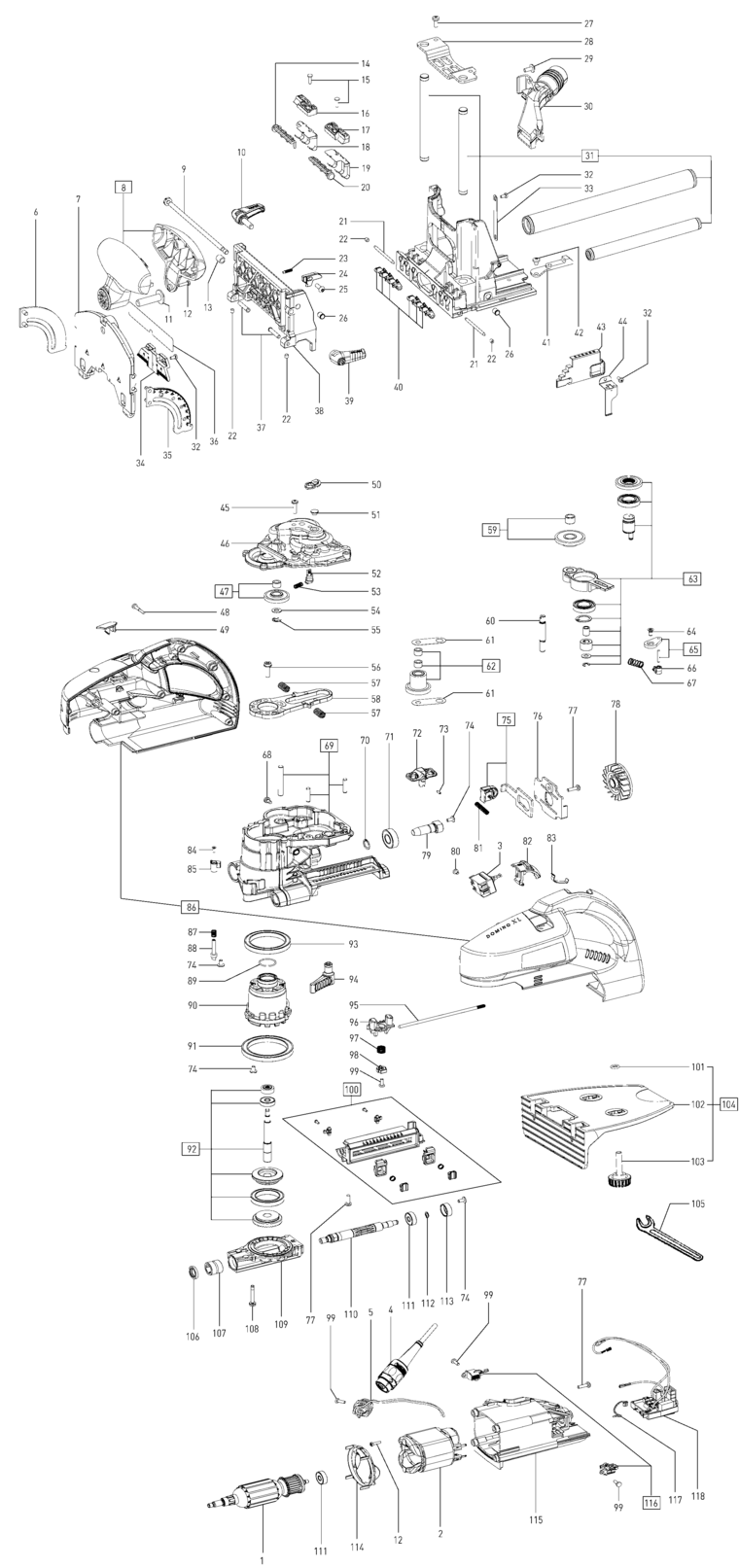

An exploded diagram and spare parts listing for the Festool DF 700 EQ 230V / 497647

	Ex VAT	Inc VAT
1 - ARMATURE FSP-498769.A2 498769	£124.63	£149.56
2 - FIELD ASSEMBLY FSP-10008028.A1 10008028	£60.78	£72.93
3 - SWITCH FSP-451383.A2 451383	£10.79	£12.95
4 - PLUG IT-CABLE FSP-203914.A81 203914	-
5 - SOCKET HOUSING FSP-700537.A2 700537	£17.24	£20.69
6 - R - SEGMENT FSP-493779.A1 493779	£12.57	£15.08
7 - BASE FSP-10001284.A4 10001284	£39.03	£46.84
8 - GRIP FSP-498695.A0 498695	£26.33	£31.60
9 - THREADED PIN FSP-478995.A0 478995	£17.07	£20.48
10 - CLAMP LEVER FSP-498316.A0 498316	£16.19	£19.43
11 - SCREW FSP-401076.A2 401076	£2.00	£2.40
12 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A30 219069	£2.00	£2.40
13 - THREADED INSERT FSP-401111.A0 401111	£2.00	£2.40
14 - LOCK-OUT MECHANISM FSP-478981.A0 478981	£2.00	£2.40
15 - RAISED-HEAD SCREW FSP-401107.A3 401107	£2.00	£2.40
16 - COVER FSP-700563.A0 700563	£2.00	£2.40
17 - COVER FSP-700564.A2 700564	£2.00	£2.40
18 - SPRING PLATE FSP-478982.A2 478982	£4.58	£5.49
19 - SPRING PLATE FSP-478979.A2 478979	£4.58	£5.49
20 - LOCK-OUT MECHANISM FSP-478978.A0 478978	£2.00	£2.40
21 - CYLINDER PIN FSP-479264.A2 479264	£2.00	£2.40
22 - THREADED PIN FSP-401104.A0 401104	£2.00	£2.40
23 - THREADED PIN M4 X 12 FSP-203387.A17 203387	£2.00	£2.40
24 - INDICATOR FSP-10000925.A2 10000925	£2.00	£2.40
25 - RAISED-HEAD SCREW M4 X 12 FSP-470216.A1 470216	£2.00	£2.40
26 - PRESSURE CLAMPING ELEMENT FSP-400286.A5 400286	£4.56	£5.47
27 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A21 228582	£2.00	£2.40
28 - COVER FSP-478973.A2 478973	£3.80	£4.56
29 - ROUND-HEAD SCREW FSP-401117.A2 401117	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-10027826.A0 10027826	£6.61	£7.93
31 - BASE FSP-498696.A1 498696	£163.75	£196.50
32 - RAISED-HEAD SCREW FSP-400983.A2 400983	£2.00	£2.40
33 - SCALE FSP-478966.A0 478966	£2.00	£2.40
34 - SCALE FSP-701458.A4 701458	£5.03	£6.04
35 - SEGMENT FSP-10001040.A0 10001040	£12.42	£14.90
36 - LABEL FSP-701872.A0 701872	£2.00	£2.40
37 - PIN FSP-469141.A2 469141	£3.10	£3.72
38 - SLIDE FSP-497651.A0 497651	£56.12	£67.35
39 - CLAMP LEVER FSP-498315.A2 498315	£14.97	£17.96
40 - STOP FSP-702486.A0 702486	£2.00	£2.40
41 - BASE FSP-498696.A0 498696	£163.75	£196.50
42 - RAISED-HEAD SCREW M4 X 5 FSP-228616.A0 228616	£2.00	£2.40
43 - SLIDE FSP-478969.A2 478969	£3.20	£3.84
44 - HOLDING PLATE FSP-478970.A0 478970	£2.00	£2.40
45 - RAISED-HEAD SCREW M4 X 18 FSP-400904.A2 400904	£2.00	£2.40
46 - GEAR COVER FSP-479956.A0 479956	£29.99	£35.99
47 - CYLINDER GEAR FSP-497305.A2 497305	£13.56	£16.27
48 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-473901.A21 473901	£2.00	£2.40
49 - COVER FSP-479661.A0 479661	£2.00	£2.40
50 - INDICATOR WASHER FSP-700376.A0 700376	£3.44	£4.13
51 - PLUG FSP-10001078.A2 10001078	£2.00	£2.40
52 - SWIVEL ARM FSP-700374.A0 700374	£2.00	£2.40
53 - PRESSURE SPRING FSP-700375.A2 700375	£2.00	£2.40
54 - SHIM RING FSP-236065.A0 236065	£2.00	£2.40
55 - WASHER FSP-208623.A4 208623	£2.00	£2.40
56 - SCREW FSP-700032.A2 700032	£2.00	£2.40
57 - PRESSURE SPRING FSP-479606.A0 479606	£2.00	£2.40
58 - CONNECTING MEMBER FSP-701282.A0 701282	£26.95	£32.34
59 - CYLINDER GEAR FSP-497307.A2 497307	£17.42	£20.91
60 - AXLE FSP-479628.A2 479628	£33.57	£40.28
61 - SCREEN FSP-700178.A2 700178	£2.00	£2.40
62 - CYLINDER GEAR FSP-497306.A0 497306	£26.38	£31.66
63 - BEARING PLATE FSP-498700.A2 498700	£102.90	£123.48
64 - FLAT HEAD SCREW M4 X 10 FSP-400681.A0 400681	£2.00	£2.40
65 - SHEET METAL FSP-497344.A0 497344	£6.42	£7.71
66 - SPRING HOLDER FSP-479637.A0 479637	£2.00	£2.40
67 - PRESSURE SPRING FSP-479639.A2 479639	£2.00	£2.40
68 - CHEESE HEAD SCREW FSP-10001832.A0 10001832	£2.00	£2.40
69 - GEAR HOUSING FSP-498699.A0 498699	£101.49	£121.79
70 - SNAP RING FSP-401062.A0 401062	£2.00	£2.40
71 - BALL BEARING FSP-400048.A14 400048	£7.18	£8.62
72 - SLIDE FSP-479649.A2 479649	£2.00	£2.40
73 - THREADED PIN FSP-400882.A2 400882	£2.00	£2.40
74 - CHEESE-HEAD SCREW FSP-401063.A17 401063	£2.00	£2.40
75 - SLIDE FSP-497347.A2 497347	£7.95	£9.54
76 - COVER FSP-479610.A2 479610	£2.00	£2.40
77 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A12 445566	£2.00	£2.40
78 - FAN WHEEL FSP-700718.A0 700718	£2.00	£2.40
79 - CONICAL GEAR WHEEL FSP-205159.A3 205159	£80.53	£96.64
80 - RAISED-HEAD SCREW M3.5 X 5 FSP-455593.A9 455593	£2.00	£2.40
81 - PRESSURE SPRING FSP-479612.A0 479612	£2.00	£2.40
82 - SWITCH LEVER FSP-479674.A2 479674	£2.00	£2.40
83 - CATCH SPRING FSP-700658.A0 700658	£2.00	£2.40
84 - FLAT HEAD SCREW FSP-401127.A0 401127	£2.00	£2.40
85 - CAP FSP-479619.A0 479619	£2.00	£2.40
86 - HOUSING FSP-498698.A2 498698	£47.64	£57.17
87 - PRESSURE SPRING FSP-436528.A47 436528	£2.00	£2.40
88 - LOCK BOLT FSP-479618.A2 479618	£7.64	£9.17
89 - O-RING FSP-200942.A0 200942	£2.00	£2.40
90 - HOUSING FSP-499615.A1 499615	£61.58	£73.90
91 - BALL BEARING FSP-401073.A4 401073	£31.42	£37.71
92 - GEAR SHAFT FSP-205159.A0 205159	£80.53	£96.64
93 - BALL BEARING FSP-401072.A0 401072	£29.92	£35.91
94 - LEVER FSP-700505.A0 700505	£19.16	£22.99
95 - TAPPET FSP-479656.A2 479656	£9.08	£10.90
96 - CATCH FSP-479650.A0 479650	£2.00	£2.40
97 - PRESSURE SPRING FSP-715027.A11 715027	£2.00	£2.40
98 - SUPPORT FSP-700458.A0 700458	£2.00	£2.40
99 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A104 219031	£2.00	£2.40
100 - COVER FSP-497593.A0 497593	£20.94	£25.13
101 - O-RING FSP-200911.A6 200911	£2.00	£2.40
102 - STOP ANGLE FSP-469159.A3 469159	£7.80	£9.36
103 - CLAMPING SCREW FSP-469620.A4 469620	£2.00	£2.40
104 - STOP ANGLE FSP-498885.A2 498885	£41.55	£49.86
105 - OPEN ENDED SPANNER FSP-401081.A2 401081	£7.49	£8.99
106 - SEALING RING FSP-700027.A0 700027	£9.32	£11.19
107 - NEEDLE BEARING FSP-401057.A2 401057	£19.48	£23.38
108 - RAISED-HEAD SCREW M4 X 30 FSP-400094.A0 400094	£2.00	£2.40
109 - HOUSING FSP-499615.A0 499615	£61.58	£73.90
110 - CUTTER SPINDLE FSP-201684.A2 201684	£41.24	£49.49
111 - BALL BEARING FSP-228672.A113 228672	£4.41	£5.29
112 - SNAP RING FSP-200616.A2 200616	£2.00	£2.40
113 - COVER FSP-479644.A0 479644	£2.00	£2.40
114 - AIR GUIDE WASHER FSP-479698.A0 479698	£2.00	£2.40
115 - MOTOR HOUSING FSP-700020.A2 700020	£20.63	£24.76
116 - CARBON SET FSP-498697.A0 498697	£18.24	£21.89
117 - PTC RESISTOR FSP-10007991.A2 10007991	£8.93	£10.72
118 - ELECTRONIC FSP-497467.A2 497467	£44.10	£52.92
