Festool AG 125-14 DE / 768634 Spare Parts

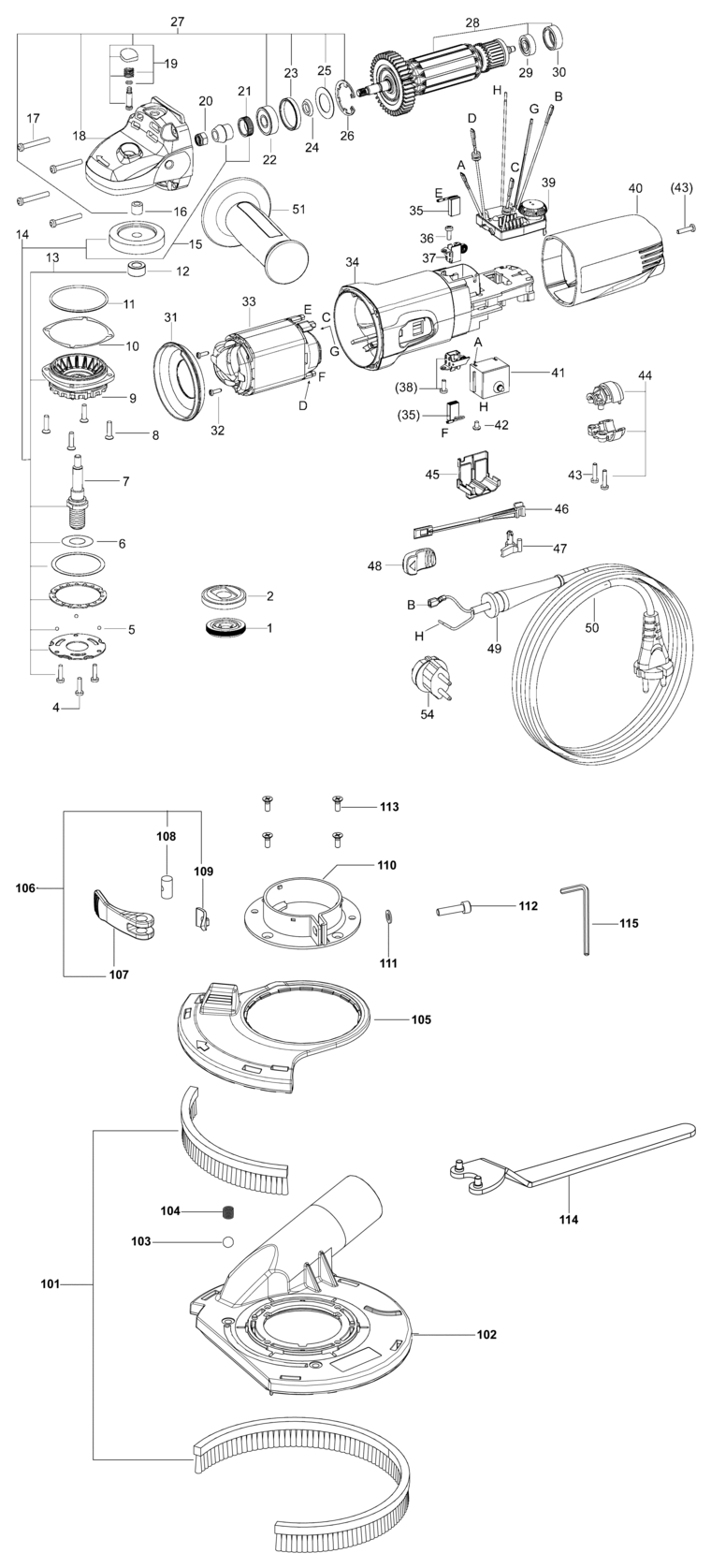

An exploded diagram and spare parts listing for the Festool AG 125-14 DE / 768634

	Ex VAT	Inc VAT
1 - CLAMPING NUT FSP-769018.A0 769018	£7.66	£9.19
2 - FLANGE FSP-10010692.A0 10010692	-
4 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A83 400468	£2.00	£2.40
5 - BALL FSP-614482.A5 614482	£2.00	£2.40
6 - SEALING RING FSP-632008.A4 632008	£2.00	£2.40
7 - SPINDLE FSP-10014551.A3 10014551	£13.98	£16.77
8 - SCREW M4 X 16 FSP-625565.A5 625565	£2.00	£2.40
9 - BEARING COVER FSP-779980.A0 779980	£11.51	£13.81
10 - WASHER FSP-624978.A1 624978	£2.00	£2.40
11 - O-RING FSP-615245.A0 615245	£2.00	£2.40
12 - SPACER RING FSP-623979.A4 623979	£2.82	£3.39
13 - NO LONGER AVAILABLE FSP-00000.A102 00000	-
14 - BEARING COVER FSP-500890.A0 500890	£63.64	£76.37
15 - GEAR. COMPL. FSP-769411.A0 769411	£31.36	£37.63
16 - NEEDLE BUSHING FSP-615247.A8 615247	£4.23	£5.08
17 - SCREW 4 X 30 MM FSP-625549.A1 625549	£2.00	£2.40
18 - GEAR HOUSING FSP-768534.A0 768534	£40.32	£48.38
19 - BLOCKING PIN FSP-769391.A0 769391	£6.42	£7.71
20 - NUT FSP-625264.A5 625264	£2.00	£2.40
21 - GASKET FSP-593960.A0 593960	£2.00	£2.40
22 - BEARING FSP-623814.A8 623814	£5.43	£6.52
23 - BEARING SLEEVE FSP-628208.A3 628208	£2.00	£2.40
24 - SPACER RING FSP-634503.A0 634503	£2.00	£2.40
25 - WASHER FSP-633983.A6 633983	£2.00	£2.40
26 - SNAP RING FSP-625263.A2 625263	£2.69	£3.23
27 - GEAR HOUSING FSP-769402.A1 769402	£55.82	£66.99
28 - ARMATURE FSP-769801.A1 769801	£65.15	£78.18
29 - BALL BEARING FSP-400680.A16 400680	£5.24	£6.29
30 - BEARING SLEEVE FSP-10010954.A0 10010954	£2.00	£2.40
31 - AIR GUIDE WASHER FSP-623987.A2 623987	£2.00	£2.40
32 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A40 219069	£2.00	£2.40
33 - FIELD ASSEMBLY FSP-618903.A0 618903	£40.17	£48.20
34 - MOTOR HOUSING FSP-768353.A0 768353	£16.10	£19.32
35 - CARBON BRUSH (PAIR) FSP-627036.A1 627036	£10.17	£12.20
36 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A57 219031	£2.00	£2.40
37 - BRUSH HOLDER FSP-626025.A1 626025	£8.18	£9.81
39 - ELECTRONIC FSP-769336.A0 769336	£61.08	£73.29
40 - HOOD FSP-768384.A1 768384	£14.10	£16.92
41 - SWITCH FSP-707454.A6 707454	£13.51	£16.21
42 - SCREW FSP-625274.A0 625274	£2.00	£2.40
43 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A104 228663	£2.00	£2.40
44 - CLAMPING FSP-769370.A3 769370	£3.68	£4.42
45 - COVER FSP-632489.A2 632489	£2.00	£2.40
46 - PULL ROD FSP-623984.A2 623984	£2.00	£2.40
47 - LEVER FSP-623985.A5 623985	£2.00	£2.40
48 - LEVER FSP-768473.A4 768473	£2.00	£2.40
49 - CABLE GROMMET FSP-450353.A1 450353	£2.00	£2.40
50 - MAINS CABLE FSP-10014479.A4 10014479	£25.08	£30.09
51 - AUXILIARY HANDLE FSP-769620.A3 769620	£10.61	£12.73
54 - ADAPTER PLUG FSP-767469.A1 767469	-
101 - BRUSH RING FSP-769081.A0 769081	£17.58	£21.10
102 - DUST EXTRACTION ATTACHMENT FSP-60403774.A0 60403774	-
103 - BALL FSP-614489.A0 614489	£2.00	£2.40
104 - PRESSURE SPRING FSP-761577.A0 761577	£2.00	£2.40
105 - PENDULUM GUARD FSP-768894.A0 768894	£19.18	£23.01
106 - LEVER. COMPLETE FSP-769373.A0 769373	£19.35	£23.22
107 - ROCKER FSP-634011.A0 634011	£13.86	£16.63
108 - TENONS FSP-634013.A1 634013	£6.30	£7.56
109 - WASHER FSP-636135.A0 636135	£2.00	£2.40
110 - SLEEVE FSP-60403777.A0 60403777	-
111 - WASHER FSP-615433.A2 615433	£2.00	£2.40
112 - CHEESE HEAD SCREW M5 X 20 FSP-761440.A1 761440	£2.00	£2.40
113 - SCREW FSP-617302.A0 617302	£2.00	£2.40
114 - SPANNER FSP-769040.A4 769040	£12.72	£15.27
115 - KEY FSP-616047.A1 616047	£2.00	£2.40
