Festool AG 125-14 D / 768567 Spare Parts

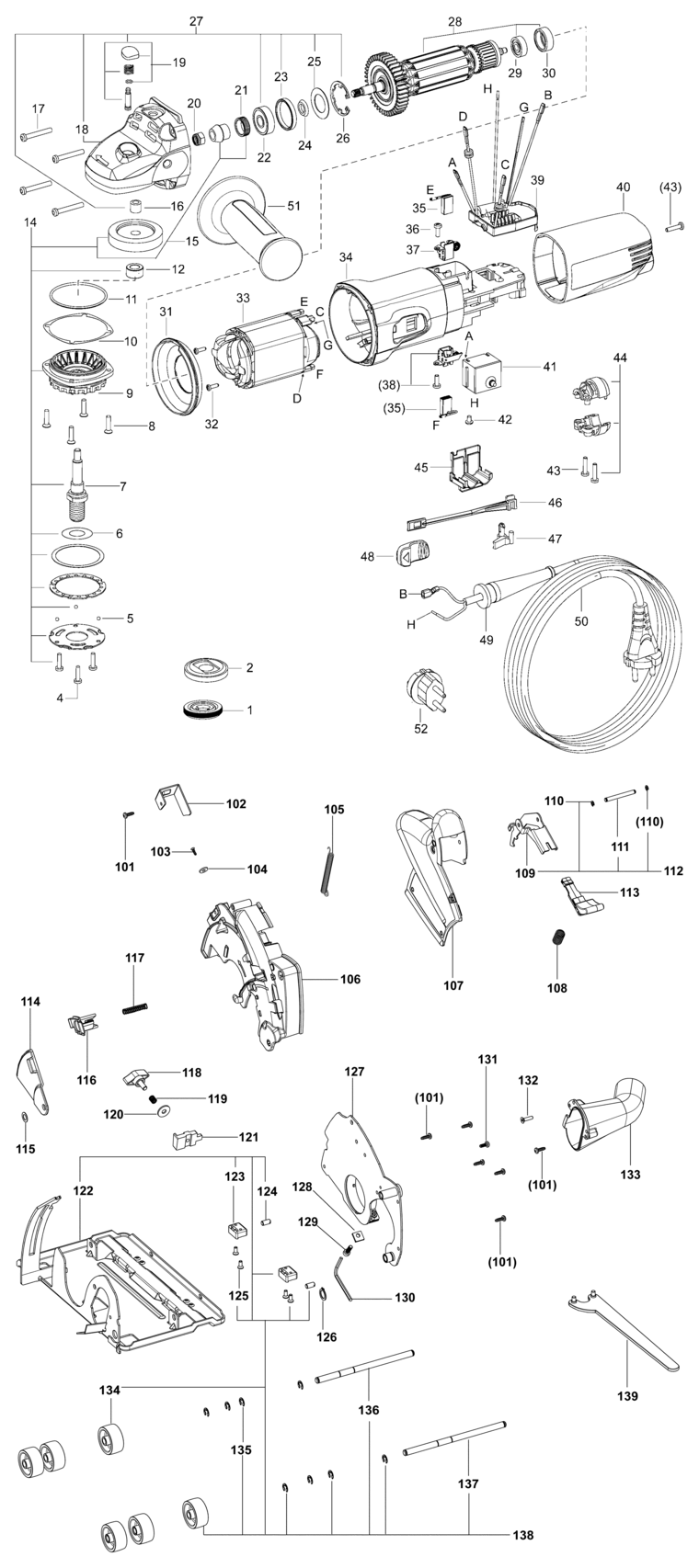

An exploded diagram and spare parts listing for the Festool AG 125-14 D / 768567

	Ex VAT	Inc VAT
1 - CLAMPING NUT FSP-769018.A2 769018	£7.66	£9.19
4 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A79 400468	£2.00	£2.40
5 - BALL FSP-614482.A4 614482	£2.00	£2.40
6 - SEALING RING FSP-632008.A6 632008	£2.00	£2.40
7 - SPINDLE FSP-10014551.A6 10014551	£13.98	£16.77
8 - SCREW M4 X 16 FSP-625565.A6 625565	£2.00	£2.40
9 - BEARING COVER FSP-779980.A3 779980	£11.51	£13.81
10 - WASHER FSP-624978.A0 624978	£2.00	£2.40
11 - O-RING FSP-615245.A3 615245	£2.00	£2.40
12 - SPACER RING FSP-623979.A3 623979	£2.82	£3.39
14 - BEARING COVER FSP-500890.A1 500890	£63.64	£76.37
15 - GEAR. COMPL. FSP-769411.A3 769411	£31.36	£37.63
16 - NEEDLE BUSHING FSP-615247.A5 615247	£4.23	£5.08
17 - SCREW 4 X 30 MM FSP-625549.A0 625549	£2.00	£2.40
18 - GEAR HOUSING FSP-768534.A1 768534	£40.32	£48.38
19 - BLOCKING PIN FSP-769391.A1 769391	£6.42	£7.71
20 - NUT FSP-625264.A4 625264	£2.00	£2.40
21 - GASKET FSP-593960.A3 593960	£2.00	£2.40
22 - BEARING FSP-623814.A9 623814	£5.43	£6.52
23 - BEARING SLEEVE FSP-628208.A2 628208	£2.00	£2.40
24 - SPACER RING FSP-634503.A3 634503	£2.00	£2.40
25 - WASHER FSP-633983.A7 633983	£2.00	£2.40
26 - SNAP RING FSP-625263.A3 625263	£2.69	£3.23
27 - GEAR HOUSING FSP-769402.A0 769402	£55.82	£66.99
28 - ARMATURE FSP-769801.A0 769801	£65.15	£78.18
29 - BALL BEARING FSP-400680.A17 400680	£5.24	£6.29
31 - AIR GUIDE WASHER FSP-623987.A3 623987	£2.00	£2.40
32 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A44 219069	£2.00	£2.40
33 - FIELD ASSEMBLY FSP-618903.A3 618903	£40.17	£48.20
34 - MOTOR HOUSING FSP-768353.A1 768353	£16.10	£19.32
35 - CARBON BRUSH (PAIR) FSP-627036.A3 627036	£10.17	£12.20
36 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A45 219031	£2.00	£2.40
37 - BRUSH HOLDER FSP-626025.A3 626025	£8.18	£9.81
39 - CONTROL ELECTRONICS FSP-769338.A1 769338	£61.08	£73.29
40 - HOOD FSP-768363.A0 768363	£10.42	£12.50
41 - SWITCH FSP-707454.A7 707454	£13.51	£16.21
42 - SCREW FSP-625274.A1 625274	£2.00	£2.40
43 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A106 228663	£2.00	£2.40
44 - CLAMPING FSP-769370.A0 769370	£3.68	£4.42
45 - COVER FSP-632489.A0 632489	£2.00	£2.40
46 - PULL ROD FSP-623984.A3 623984	£2.00	£2.40
47 - LEVER FSP-623985.A4 623985	£2.00	£2.40
48 - LEVER FSP-768473.A7 768473	£2.00	£2.40
49 - CABLE GROMMET FSP-450353.A0 450353	£2.00	£2.40
50 - MAINS CABLE FSP-10014479.A3 10014479	£25.08	£30.09
51 - AUXILIARY HANDLE FSP-769620.A4 769620	£10.61	£12.73
52 - ADAPTER PLUG FSP-767469.A2 767469	-
101 - SCREW 4 X 16 MM FSP-625697.A23 625697	£2.00	£2.40
102 - GUIDE FSP-649388.A0 649388	£2.00	£2.40
103 - SCREW M3 X 10 FSP-614334.A0 614334	£2.00	£2.40
104 - WASHER FSP-614474.A0 614474	£2.00	£2.40
105 - DRAW SPRING FSP-763868.A0 763868	£3.78	£4.53
106 - COVER FSP-768579.A0 768579	£17.34	£20.81
107 - GRIP FSP-768565.A0 768565	£15.97	£19.16
108 - PRESSURE SPRING FSP-761330.A1 761330	£2.00	£2.40
109 - CATCH FSP-649390.A0 649390	£10.52	£12.62
110 - WASHER FSP-222490.A8 222490	£2.00	£2.40
111 - TENONS FSP-779183.A0 779183	£7.54	£9.05
113 - PUSHER FSP-768843.A2 768843	£2.00	£2.40
114 - LENS FSP-768482.A0 768482	£4.92	£5.90
115 - WASHER FSP-779065.A2 779065	£2.00	£2.40
116 - PUSHER FSP-768563.A0 768563	£2.00	£2.40
117 - SPRING FSP-617843.A0 617843	£2.00	£2.40
118 - BUTTERFLY SCREW FSP-768226.A2 768226	£2.66	£3.19
119 - PRESSURE SPRING FSP-654035.A0 654035	£2.00	£2.40
120 - WASHER FSP-615331.A1 615331	£2.00	£2.40
121 - NUT FSP-763911.A0 763911	£2.00	£2.40
122 - SLIDE. COMPL. FSP-769797.A1 769797	£66.34	£79.61
123 - ADJUSTING PIECE FSP-443971.A21 443971	£2.00	£2.40
124 - THREADED PIN M6 X 12 FSP-442597.A22 442597	£2.00	£2.40
125 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A47 219102	£2.00	£2.40
126 - SNAP RING FSP-614793.A1 614793	£2.00	£2.40
127 - COVER FSP-779187.A0 779187	£47.52	£57.03
128 - SQUARE WASHER FSP-763909.A0 763909	£2.00	£2.40
129 - CHEESE HEAD SCREW M5 X 16 FSP-228643.A0 228643	£2.00	£2.40
130 - ALLEN KEY FSP-767505.A1 767505	£2.00	£2.40
131 - SCREW FSP-634640.A0 634640	£2.00	£2.40
132 - SCREW 4.0 X 16 MM FSP-614778.A8 614778	£2.00	£2.40
133 - EXTRACTOR CONNECTOR FSP-649370.A2 649370	£12.78	£15.33
134 - WHEEL FSP-779188.A0 779188	£2.00	£2.40
135 - SNAP RING FSP-615477.A2 615477	£2.00	£2.40
136 - SHAFT FSP-779185.A0 779185	£9.68	£11.62
137 - SHAFT FSP-779184.A0 779184	£9.83	£11.80
138 - SLIDE. COMPL. FSP-769797.A0 769797	£66.34	£79.61
139 - SPANNER FSP-769040.A3 769040	£12.72	£15.27
