Festool CM 150 / 10011312 Spare Parts

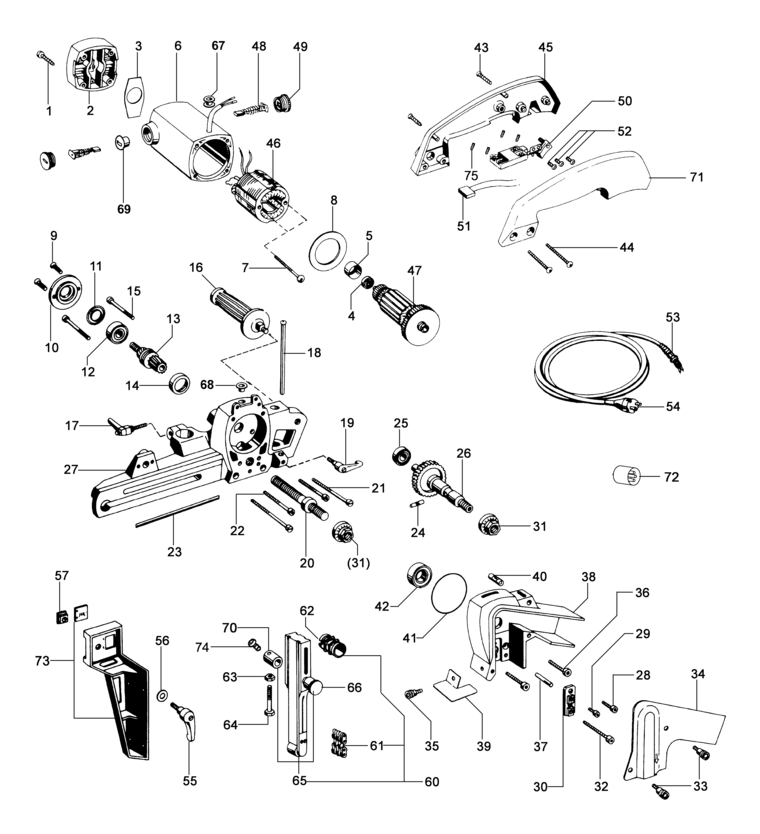

An exploded diagram and spare parts listing for the Festool CM 150 / 10011312

	Ex VAT	Inc VAT
1 - RAISED-HEAD SCREW FSP-634298.A0 634298	£2.00	£2.40
2 - CAP FSP-633109.A0 633109	£8.48	£10.18
3 - GASKET FSP-298492.A0 298492	£2.00	£2.40
4 - BALL BEARING FSP-425575.A8 425575	£11.42	£13.70
5 - RING FSP-761263.A1 761263	£9.32	£11.19
6 - MOTOR HOUSING FSP-633296.A0 633296	£127.98	£153.57
7 - RAISED-HEAD SCREW FSP-634301.A0 634301	£3.68	£4.42
8 - AIR GUIDE WASHER FSP-632904.A1 632904	£4.18	£5.02
9 - FLAT HEAD SCREW M5 X 16 FSP-414417.A4 414417	£2.00	£2.40
10 - BEARING COVER FSP-459954.A2 459954	£9.43	£11.32
11 - SEALING RING FSP-298468.A2 298468	£7.86	£9.43
12 - BEARING FSP-614869.A2 614869	£11.23	£13.48
13 - PINION FSP-632953.A0 632953	£160.62	£192.75
14 - FELT WASHER FSP-633003.A0 633003	£19.35	£23.22
15 - CHEESE HEAD SCREW FSP-761446.A2 761446	£2.00	£2.40
16 - DESCRIPTION UNAVAILABLE FSP-000000.A362 000000	-
17 - CLAMP LEVER FSP-632988.A0 632988	£31.24	£37.49
18 - DEPTH STOP FSP-631922.A0 631922	£47.05	£56.46
19 - CLAMP LEVER FSP-632961.A0 632961	£29.03	£34.84
20 - SCREW FSP-631965.A0 631965	£81.02	£97.22
21 - CHEESE HEAD SCREW FSP-761469.A0 761469	£3.00	£3.60
22 - CHEESE HEAD SCREW FSP-761446.A3 761446	£2.00	£2.40
23 - SCALE FSP-632023.A0 632023	£25.94	£31.13
24 - COUNTERSUNK GROOVED PIN FSP-433195.A0 433195	£2.00	£2.40
25 - BALL BEARING FSP-228659.A3 228659	£7.68	£9.21
26 - GEAR SHAFT FSP-631981.A0 631981	-
27 - NO LONGER AVAILABLE FSP-00000.A2114 00000	-
28 - CHEESE HEAD SCREW FSP-433136.A0 433136	£2.00	£2.40
29 - CHEESE HEAD SCREW FSP-433128.A0 433128	£2.00	£2.40
30 - CONNECTING MEMBER FSP-632120.A0 632120	£92.96	£111.55
31 - HEXAGON NUT FSP-631973.A0 631973	£13.61	£16.33
32 - CHEESE HEAD SCREW FSP-832650.A0 832650	£2.00	£2.40
33 - FLAT HEAD SCREW M5 X 12 FSP-430137.A3 430137	£2.00	£2.40
34 - COVER FSP-632112.A0 632112	£77.52	£93.03
35 - FLAT HEAD SCREW M5 X 12 FSP-430137.A2 430137	£2.00	£2.40
36 - CHEESE HEAD SCREW M5 X 20 FSP-761440.A0 761440	£2.00	£2.40
37 - COUNTERSUNK GROOVED PIN FSP-430846.A0 430846	£2.00	£2.40
38 - PROTECTIVE COVER FSP-632104.A0 632104	£476.50	£571.80
39 - COVER FSP-631957.A0 631957	£45.68	£54.81
40 - LEVEL FSP-632007.A0 632007	£22.70	£27.24
41 - O-RING FSP-433152.A0 433152	£3.20	£3.84
42 - BALL BEARING FSP-433187.A0 433187	£48.96	£58.75
43 - SLOTTED PAN HEAD SCREW FSP-428361.A0 428361	£2.00	£2.40
44 - RAISED-HEAD SCREW FSP-632031.A0 632031	£2.00	£2.40
45 - HANDLE FSP-779663.A0 779663	£13.82	£16.59
46 - FIELD ASSEMBLY FSP-633215.A0 633215	£165.41	£198.49
47 - ARMATURE FSP-632903.A0 632903	£304.81	£365.77
48 - CARBON SET FSP-627021.A0 627021	£43.07	£51.68
49 - BRUSH HOLDER CHIP GUARD FSP-298522.A0 298522	£3.32	£3.98
50 - SWITCH FSP-779767.A0 779767	£38.05	£45.66
51 - CAPACITOR FSP-761264.A0 761264	£45.05	£54.06
52 - RAISED-HEAD SCREW 4 X 12 MM FSP-430145.A0 430145	£2.00	£2.40
53 - KINK PROTECTION FSP-631949.A0 631949	£28.58	£34.29
54 - MAINS CABLE FSP-729035.A2 729035	£77.98	£93.57
55 - CLAMP LEVER M8 FSP-664014.A0 664014	-
56 - WASHER FSP-761517.A15 761517	£2.00	£2.40
57 - NUTENSTEIN FSP-433160.A0 433160	£34.93	£41.92
60 - CHAIN CUTTER FSP-769547.A0 769547	£662.33	£794.80
60 - CHAIN CUTTER FSP-769548.A0 769548	£645.54	£774.65
61 - CUTTING CHAIN FSP-769551.A0 769551	£296.32	£355.59
62 - WHEEL FOR CHAIN CUTTER FSP-633127.A4 633127	£75.14	£90.17
63 - NUT M6 FSP-614469.A7 614469	£2.00	£2.40
64 - HEXAGON SCREW FSP-830217.A0 830217	£2.00	£2.40
65 - CHAIN CUTTER RAIL FSP-633038.A0 633038	£433.33	£520.00
65 - CHAIN CUTTER RAIL FSP-633046.A1 633046	£408.26	£489.91
65 - CHAIN CUTTER RAIL FSP-838395.A1 838395	£384.82	£461.78
65 - CHAIN CUTTER RAIL FSP-838398.A0 838398	£383.67	£460.40
66 - LUBRICATOR FSP-722340.A0 722340	£34.26	£41.11
67 - SOCKET FSP-841918.A1 841918	£2.00	£2.40
68 - SOCKET FSP-624261.A0 624261	£11.61	£13.93
69 - BRUSH HOLDER FSP-298514.A1 298514	£18.09	£21.71
70 - NO LONGER AVAILABLE FSP-00000.A3396 00000	-
71 - GRIP FSP-626906.A0 626906	£22.96	£27.55
73 - PARALLEL SIDE FENCE FSP-628650.A0 628650	£217.28	£260.74
74 - FLAT HEAD SCREW M5 X 10 FSP-411256.A0 411256	£2.00	£2.40
75 - SCREW FSP-767036.A0 767036	£2.00	£2.40
