Fein RS 12-70 E (50Hz 230V) / 72211351013 Spare Parts

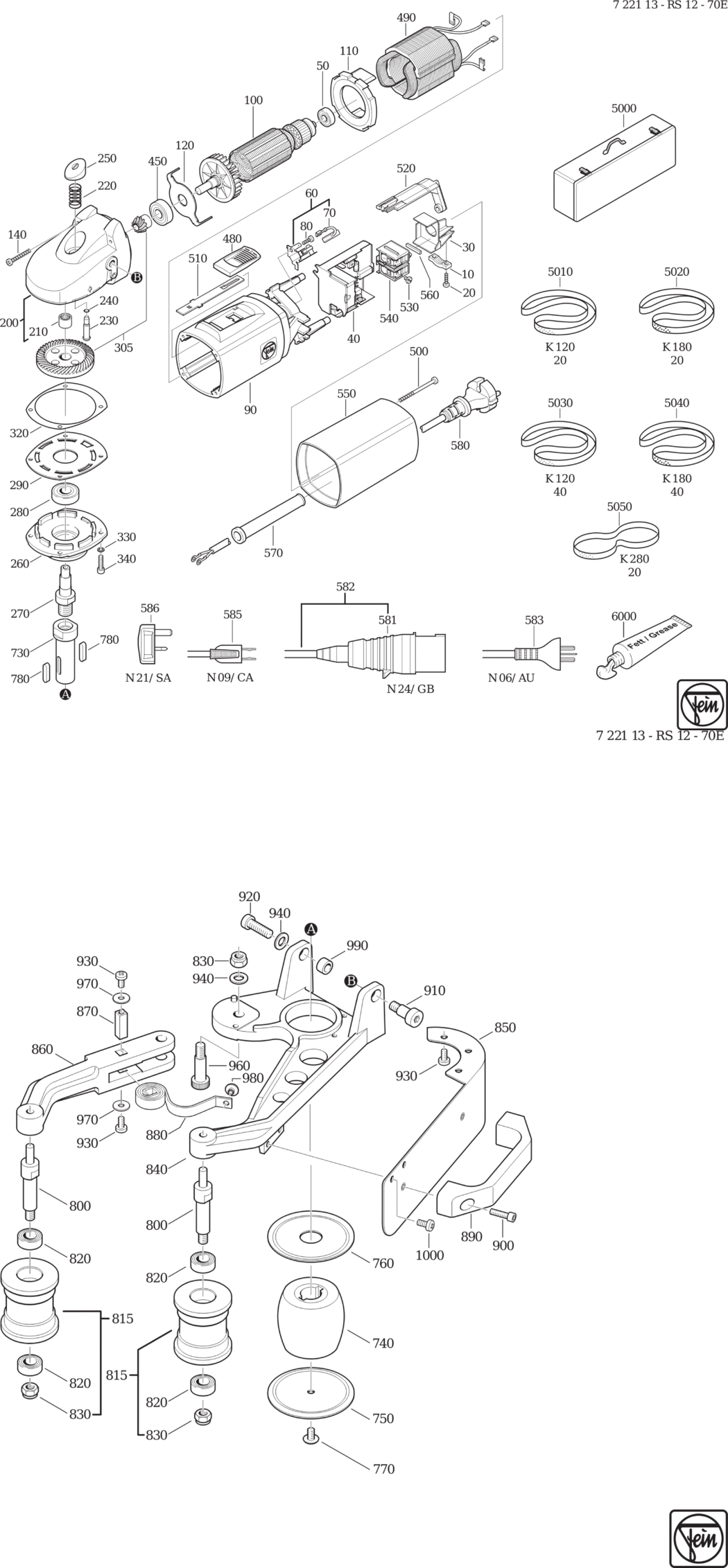

An exploded diagram and spare parts listing for the Fein RS 12-70 E (50Hz 230V) / 72211351013

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A185 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A28 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A18 32431040006	£2.78	£3.33
40 - SPEED SETTING SWITCH FEI-30762214999.A6 30762214999	£125.65	£150.78
50 - GROOVED BALL BEARING FEI-41701001172.A144 41701001172	£9.63	£11.56
60 - BRUSH HOLDER FEI-30712088013.A31 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A34 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A117 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A11 31901114014	£46.03	£55.24
100 - ARMATURE FEI-53273001233.A14 53273001233	£133.28	£159.93
110 - AIR GUIDE RING FEI-31428118007.A47 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A31 32416098005	£1.60	£1.92
140 - SCREW FEI-43070007002.A132 43070007002	£1.60	£1.92
200 - GEARBOX HOUSING FEI-31206110015.A8 31206110015	£78.98	£94.78
210 - NEEDLE SLEEVE FEI-41705019001.A97 41705019001	£9.49	£11.39
220 - SPIRAL SPRING FEI-30901032003.A26 30901032003	£3.23	£3.88
230 - BOLT FEI-30217327003.A8 30217327003	£17.44	£20.93
240 - SEALING RING FEI-40612137008.A173 40612137008	£1.60	£1.92
250 - PUSHBUTTON FEI-32805185002.A8 32805185002	£2.69	£3.23
260 - BEARING PLATE FEI-32419115006.A16 32419115006	£44.60	£53.52
270 - SHAFT FEI-33406284009.A43 33406284009	£33.58	£40.29
280 - GROOVED BALL BEARING FEI-41701010054.A50 41701010054	£8.25	£9.90
290 - PLATE FEI-32416101009.A35 32416101009	£3.11	£3.73
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A75 33809229012	£57.88	£69.46
320 - DISC FEI-32624117009.A74 32624117009	£1.60	£1.92
330 - CIRCLIP M4 FEI-42443003043.A84 42443003043	£1.60	£1.92
340 - FILLISTER HEAD SCREW FEI-43041023046.A14 43041023046	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701007266.A113 41701007266	£10.67	£12.80
480 - SLIDE SWITCH FEI-32805156008.A31 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A22 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A5 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A36 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A38 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A1 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A78 30701285000	£17.50	£21.00
550 - COVER FEI-31201101008.A15 31201101008	£17.71	£21.25
560 - PRESSURE PIECE FEI-31415082004.A51 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A87 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707336013.A11 30707336013	£19.38	£23.25
730 - SHAFT FEI-31335012009.A0 31335012009	£93.88	£112.65
740 - ROLLER FEI-31335011006.A2 31335011006	£257.77	£309.32
750 - DISC FEI-31335009005.A2 31335009005	£13.30	£15.96
760 - DISC FEI-31335010007.A0 31335010007	£13.30	£15.96
770 - FLAT HEADED SCREW FEI-31335015005.A2 31335015005	£2.60	£3.12
780 - FEATHER KEY FEI-40221056006.A2 40221056006	-
800 - SHAFT FEI-31335005006.A0 31335005006	£37.80	£45.36
815 - ROLLER FEI-31335019010.A0 31335019010	£111.16	£133.39
820 - GROOVED BALL BEARING FEI-41701004037.A0 41701004037	£20.75	£24.90
830 - NUT FEI-42019020087.A1 42019020087	£12.10	£14.52
840 - GRINDING ARM FEI-31335001007.A0 31335001007	-
850 - SAFETY HOOD FEI-31335007003.A0 31335007003	-
860 - LEVER FEI-31335002000.A2 31335002000	£281.45	£337.74
870 - BOLT FEI-31335004002.A2 31335004002	£22.16	£26.59
880 - SPRING FEI-31335003004.A0 31335003004	£36.06	£43.27
890 - HANDLE FEI-31335016008.A0 31335016008	£39.13	£46.96
900 - CYLINDER HEAD SCREW FEI-43035032065.A11 43035032065	-
910 - SCREW FEI-31335013003.A2 31335013003	£13.28	£15.94
920 - CYLINDER HEAD SCREW FEI-43035047089.A0 43035047089	£1.60	£1.92
930 - FILLISTER HEAD SCREW FEI-43041041053.A0 43041041053	£1.60	£1.92
940 - DISC FEI-42401019085.A25 42401019085	£1.60	£1.92
960 - SCREW FEI-31335014001.A0 31335014001	£27.23	£32.68
970 - DISC FEI-42402015002.A1 42402015002	£1.60	£1.92
980 - PRESSURE PIECE FEI-31335018000.A2 31335018000	£11.34	£13.61
990 - BUSH FEI-31335006009.A2 31335006009	£11.34	£13.61
1000 - FILLISTER HEAD SCREW FEI-43041034059.A1 43041034059	-
5000 - METAL TOOL CASES FEI-33901022036.A1 33901022036	-
5010 - GRINDING BELTS FEI-63714050015.A0 63714050015	£52.91	£63.49
5020 - GRINDING BELTS FEI-63714051014.A1 63714051014	£52.91	£63.49
5030 - GRINDING BELTS FEI-63714054019.A0 63714054019	£83.25	£99.90
5040 - GRINDING BELTS FEI-63714055013.A1 63714055013	£83.25	£99.90
5050 - FLEECE STRIPS FEI-63714058018.A0 63714058018	£68.62	£82.34
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A115 32160003014	-
