Fein RS 10-70 E (50Hz 110V) / 72216624110 Spare Parts

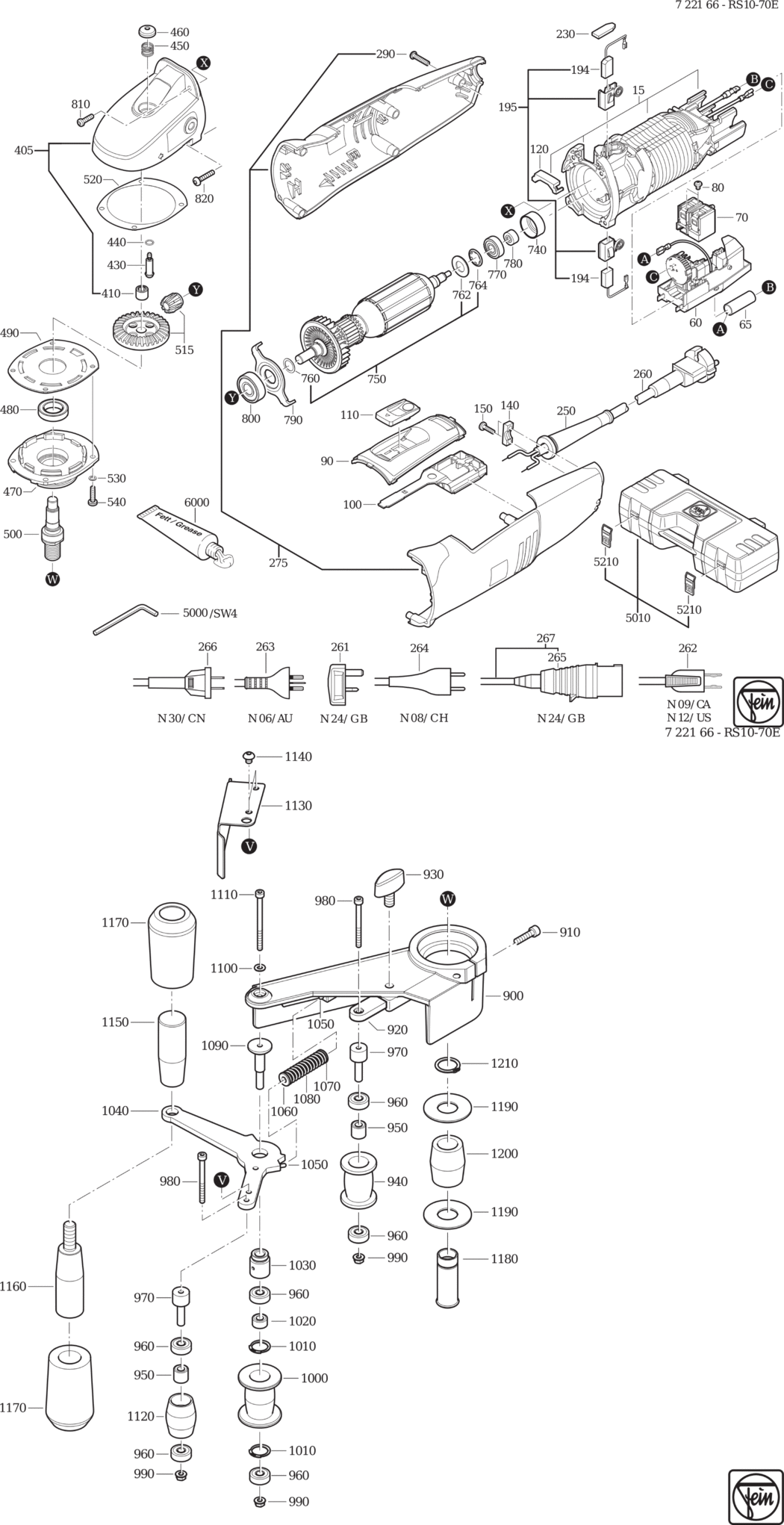

An exploded diagram and spare parts listing for the Fein RS 10-70 E (50Hz 110V) / 72216624110

	Ex VAT	Inc VAT
15 - STATOR UNIT 110-120V 50/60HZ FEI-52277030110.A2 52277030110	£98.04	£117.65
60 - SPEED SETTING SWITCH 110V-120V 50/60HZ FEI-30762393990.A1 30762393990	£122.30	£146.76
65 - INSULATING HOSE FEI-31413232000.A9 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A76 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A2 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A0 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A4 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A27 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A17 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A28 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A0 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A8 30711168000	-
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A0 30712093080	£29.78	£35.73
230 - COVER FEI-31420124000.A5 31420124000	£1.60	£1.92
250 - PROTECTIVE HOSE FEI-31413237000.A84 31413237000	£2.74	£3.29
265 - PLUG CEE 16A/110V FEI-30728288004.A75 30728288004	£14.25	£17.10
267 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A5 30707491010	£30.05	£36.06
275 - MOTOR HOUSING FEI-31912097010.A15 31912097010	-
290 - SCREW FEI-43074008000.A18 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206142020.A25 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A98 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A128 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A176 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A22 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A75 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-31341001000.A1 31341001000	-
480 - GROOVED BALL BEARING FEI-41701010054.A49 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A37 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A41 33406284009	£33.58	£40.29
515 - BEVEL GEAR Z=9/44 FEI-33809229012.A77 33809229012	£57.88	£69.46
520 - DISC FEI-32624117009.A75 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A86 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A30 43064024043	-
740 - BEARING BUSH FEI-30507236000.A136 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003360.A5 53277003360	£120.28	£144.33
760 - CIRCLIP FEI-42615081002.A33 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A26 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A24 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A253 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A65 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A72 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A114 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A46 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A58 43074009000	£1.60	£1.92
900 - HOUSING FEI-31341006000.A1 31341006000	£378.90	£454.68
910 - CYLINDER HEAD SCREW FEI-43035017057.A7 43035017057	£1.60	£1.92
920 - SLIDER FEI-31341007000.A1 31341007000	-
930 - SCREW FEI-31341008000.A1 31341008000	-
940 - ROLLER FEI-31341014000.A1 31341014000	£145.58	£174.69
950 - RING FEI-31341013000.A1 31341013000	-
960 - GROOVED BALL BEARING 6/17X6 FEI-41701000005.A0 41701000005	-
970 - BOLT FEI-31341011000.A1 31341011000	-
980 - CYLINDER HEAD SCREW FEI-43035096049.A1 43035096049	£1.60	£1.92
990 - HEX NUT FEI-31341015000.A1 31341015000	-
1000 - ROLLER FEI-31341004000.A1 31341004000	-
1010 - CIRCLIP FEI-31341020000.A1 31341020000	-
1020 - RING FEI-31341019000.A1 31341019000	-
1030 - SLEEVE FEI-31341018000.A1 31341018000	-
1040 - GRINDING ARM FEI-31341003000.A1 31341003000	-
1050 - NEEDLE ROLLER FEI-31341021000.A1 31341021000	-
1060 - SLEEVE FEI-31341023000.A1 31341023000	£56.94	£68.33
1070 - BOLT FEI-31341022000.A1 31341022000	£46.88	£56.26
1080 - SPIRAL SPRING FEI-31341024000.A1 31341024000	£54.49	£65.39
1090 - BOLT FEI-31341017000.A1 31341017000	£82.11	£98.53
1100 - DISC FEI-42401012049.A1 42401012049	-
1110 - CYLINDER HEAD SCREW FEI-43035082041.A2 43035082041	-
1120 - ROLLER FEI-31341016000.A1 31341016000	£142.36	£170.83
1130 - PROTECTION PLATE FEI-31341032000.A1 31341032000	-
1140 - FILLISTER HEAD SCREW FEI-31341034000.A1 31341034000	-
1150 - HANDLE FEI-31341026000.A2 31341026000	-
1160 - HANDLE FEI-31341025000.A1 31341025000	-
1170 - PROTECTIVE CAP FEI-31341033000.A1 31341033000	-
1180 - SHAFT FEI-31341005000.A1 31341005000	£83.04	£99.65
1190 - DISC FEI-31341030000.A1 31341030000	£11.16	£13.39
1200 - ROLLER FEI-31341029000.A1 31341029000	£100.87	£121.04
1210 - CIRCLIP FEI-42616008009.A8 42616008009	-
5000 - ALLEN KEY SW4 FEI-62907010000.A26 62907010000	£3.35	£4.02
5010 - TOOL CASE FEI-33901130050.A0 33901130050	£118.66	£142.39
5210 - WIRE CLAMP FEI-30232050000.A214 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A118 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A578 34130054061	-
