Fein ROT 14-200 E / 72216550010 Spare Parts

Home Details Reviews Delivery

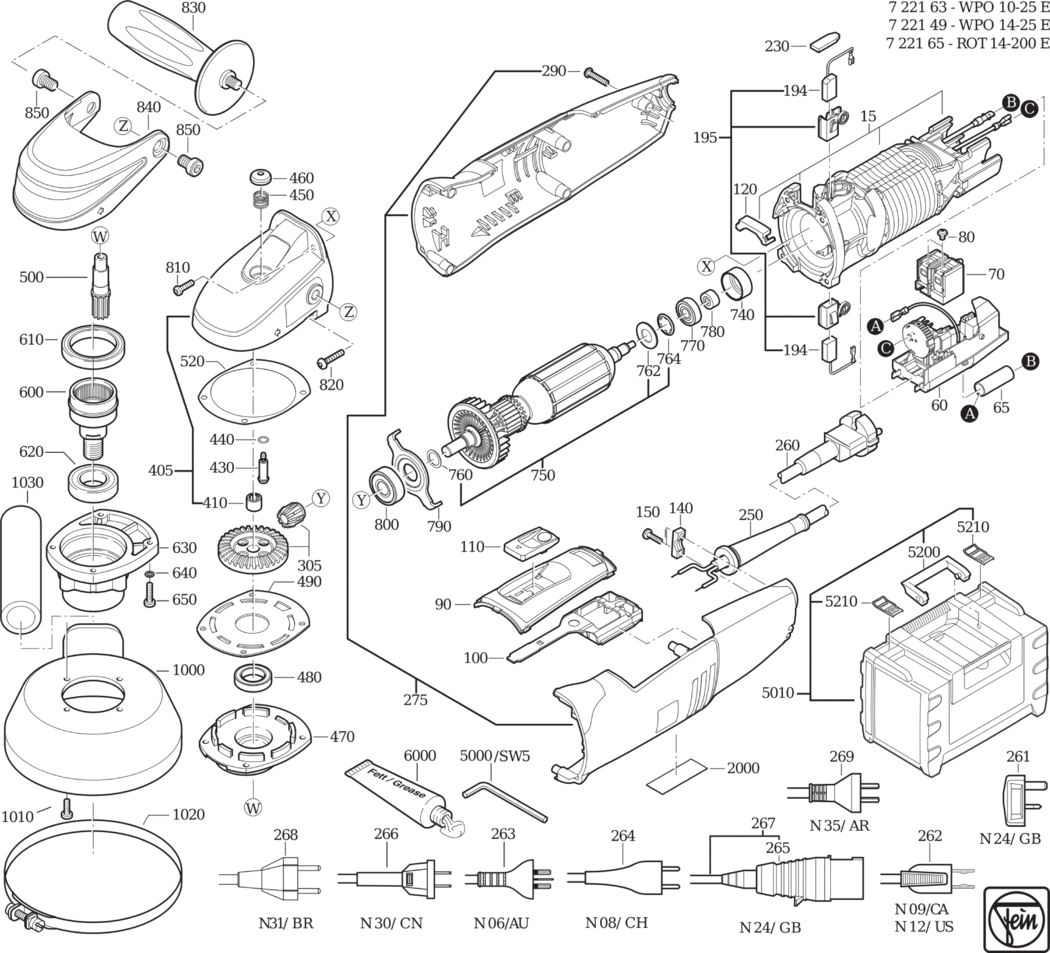

An exploded diagram and spare parts listing for the Fein ROT 14-200 E / 72216550010

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A10 52276032230	£89.51	£107.41
60 - SPEED SETTING SWITCH FEI-30762376990.A9 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A26 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A2 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A66 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427134000.A11 32427134000	£5.42	£6.50
100 - CONTROL ROD FEI-32816070000.A6 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805223000.A12 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A32 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A104 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A74 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A42 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A12 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A25 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A49 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A27 30707544010	-
275 - MOTOR HOUSING FEI-31912083010.A14 31912083010	£35.94	£43.13
290 - SCREW FEI-43074008000.A99 43074008000	£1.60	£1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A11 33809229012	£57.88	£69.46
405 - GEARBOX HOUSING FEI-31206142020.A14 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A31 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A3 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A138 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A43 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A132 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419116009.A6 32419116009	£55.68	£66.82
480 - GROOVED BALL BEARING FEI-41701010054.A138 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A74 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED FEI-33713065003.A12 33713065003	£48.38	£58.06
520 - DISC FEI-32624117009.A32 32624117009	£1.60	£1.92
600 - SHAFT TOOTHED FEI-33804023002.A2 33804023002	£125.44	£150.53
610 - GROOVED BALL BEARING FEI-41701110228.A10 41701110228	£36.28	£43.53
620 - GROOVED BALL BEARING FEI-41701109051.A15 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508241003.A17 31508241003	£61.73	£74.08
640 - CIRCLIP M4 FEI-42443003043.A206 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A2 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A129 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A6 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A60 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A43 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A47 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A11 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A4 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A25 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A6 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A15 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A27 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A73 32119124010	£17.68	£21.22
840 - HOOD FEI-31428162000.A14 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A2 43033046087	£1.60	£1.92
1000 - PROTECT.SUCTION HOOD FEI-31810240014.A2 31810240014	£42.08	£50.50
1010 - FILLISTER HEAD SCREW FEI-43064002043.A63 43064002043	£1.60	£1.92
1020 - CLAMP FITTING FEI-30234018001.A0 30234018001	£18.48	£22.18
1030 - CONNECTING PIECE FEI-31322771009.A5 31322771009	£10.15	£12.18
5000 - ALLEN KEY SW5 FEI-62907011009.A23 62907011009	£3.29	£3.95
5010 - TOOL CASE FEI-33901122010.A0 33901122010	£101.71	£122.05
5200 - HANDLE FEI-32119122000.A49 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A8 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A422 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101113060.A1 34101113060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A318 34130054061	-
