Fein MSf 636-1 (50/60Hz 220/230V) / 72207800225 Spare Parts

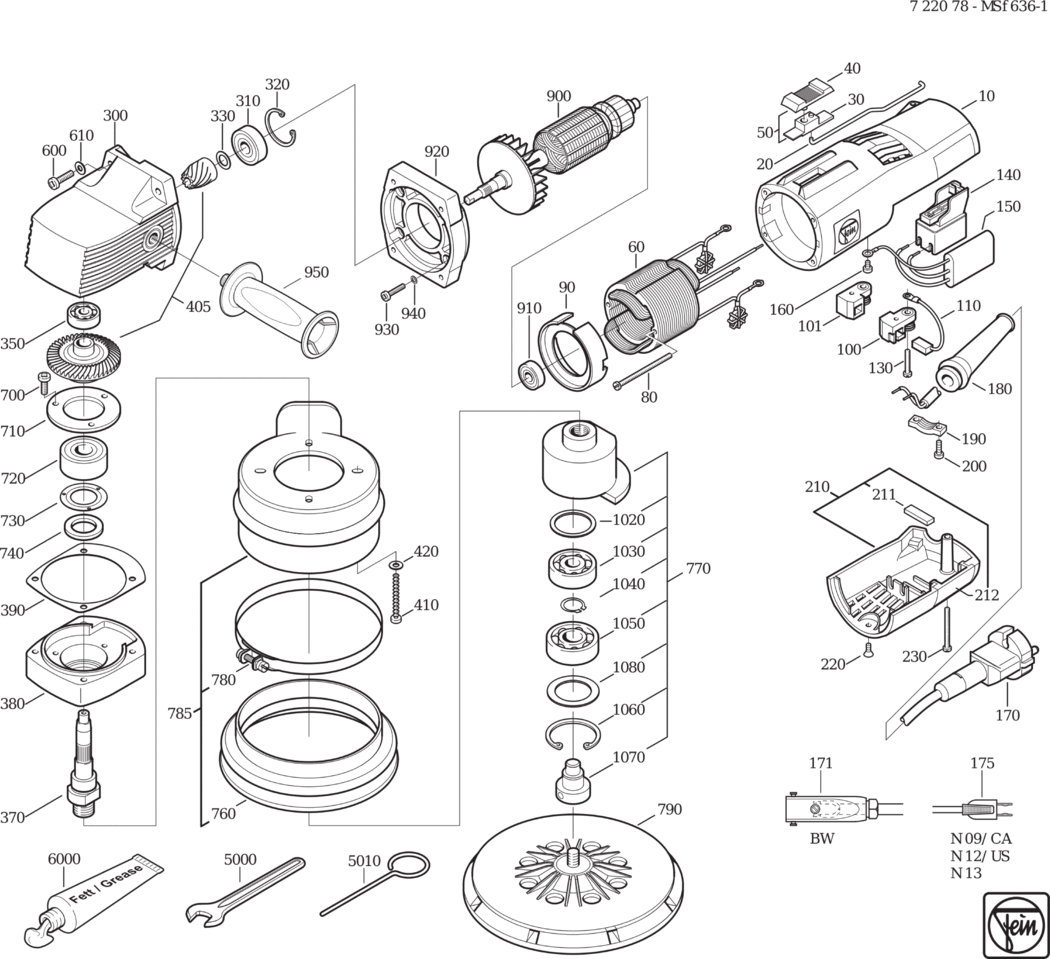

An exploded diagram and spare parts listing for the Fein MSf 636-1 (50/60Hz 220/230V) / 72207800225

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901017007.A0 31901017007	£100.68	£120.81
20 - CONTROL ROD FEI-32816025003.A5 32816025003	£2.82	£3.38
30 - SLIDER FEI-32816039001.A11 32816039001	£2.35	£2.82
40 - SLIDE SWITCH FEI-32805118004.A4 32805118004	£1.60	£1.92
50 - SLIDE SWITCH FEI-32805118013.A12 32805118013	£8.15	£9.78
60 - STATOR FEI-51203021228.A0 51203021228	£84.22	£101.06
80 - CYLINDER HEAD SCREW FEI-43002025991.A54 43002025991	£1.60	£1.92
90 - AIR GUIDE RING FEI-31428007001.A12 31428007001	£3.22	£3.86
100 - BRUSH HOLDER FEI-30712055011.A16 30712055011	£12.92	£15.51
101 - BRUSH HOLDER FEI-30712056014.A0 30712056014	£12.92	£15.51
110 - CARBON BRUSH (SOLD SINGLY) FEI-30711062001.A15 30711062001	£6.20	£7.44
130 - FILLISTER HEAD SCREW FEI-43041007990.A16 43041007990	£1.60	£1.92
140 - SWITCH FEI-30701060000.A4 30701060000	£22.32	£26.78
150 - CAPACITOR FEI-30722037004.A15 30722037004	£16.62	£19.94
160 - FLAT HEADED SCREW FEI-43003013991.A8 43003013991	£1.60	£1.92
170 - CABLE WITH PLUG FEI-30707263019.A9 30707263019	£19.80	£23.76
180 - CABLE GROMMET FEI-31413142009.A36 31413142009	£1.60	£1.92
190 - CABLE CLAMPING PIECE FEI-32431021007.A181 32431021007	£1.60	£1.92
200 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A4 43041001994	£1.60	£1.92
210 - COVER FEI-32427028006.A0 32427028006	£14.33	£17.20
211 - PRESSURE PIECE FEI-31415042008.A12 31415042008	£1.60	£1.92
212 - HOUSING INSERT FEI-32414083003.A16 32414083003	£3.29	£3.95
220 - COUNTERSUNK SCREW FEI-43066002992.A0 43066002992	£1.60	£1.92
230 - FLAT HEADED SCREW FEI-43003025992.A16 43003025992	£1.60	£1.92
300 - GEARBOX HOUSING FEI-31206095007.A3 31206095007	£93.90	£112.68
310 - GROOVED BALL BEARING FEI-41701207033.A70 41701207033	£10.15	£12.18
320 - CIRCLIP FEI-42616001005.A24 42616001005	£1.60	£1.92
330 - DISC FEI-32624053022.A7 32624053022	£1.60	£1.92
330 - DISC FEI-32624053038.A4 32624053038	£2.41	£2.89
350 - GROOVED BALL BEARING FEI-41701204010.A67 41701204010	£6.37	£7.64
370 - SHAFT FEI-33406162003.A3 33406162003	£65.56	£78.67
380 - BEARING PLATE FEI-32419079000.A3 32419079000	£67.99	£81.59
390 - DISC FEI-32624098031.A3 32624098031	£3.96	£4.75
390 - DISC FEI-32624098025.A0 32624098025	£5.97	£7.16
405 - BEVEL GEAR Z=11/41 FEI-33809183025.A3 33809183025	£134.82	£161.78
410 - SHEET METAL SCREW FEI-43046023007.A11 43046023007	£1.60	£1.92
420 - DISC FEI-42401012049.A2 42401012049	-
600 - FILLISTER HEAD SCREW FEI-43041023046.A12 43041023046	£1.60	£1.92
610 - DISC FEI-42401012049.A3 42401012049	-
700 - FILLISTER HEAD SCREW FEI-43064002043.A15 43064002043	£1.60	£1.92
710 - PLATE FEI-32416079001.A3 32416079001	£17.58	£21.10
720 - GROOVED BALL BEARING FEI-41701502007.A0 41701502007	£40.49	£48.59
730 - DISC FEI-32411059005.A10 32411059005	£1.60	£1.92
740 - FELT RING FEI-30601063007.A5 30601063007	£1.60	£1.92
760 - SEALING SLEEVE FEI-30606009002.A0 30606009002	£41.44	£49.73
770 - ECCENTRIC HEAD FEI-31207103013.A3 31207103013	£165.62	£198.74
780 - CLAMP FITTING FEI-30234017003.A0 30234017003	£13.09	£15.71
785 - PROTECT.SUCTION HOOD FEI-31810209021.A0 31810209021	-
790 - SANDING PAD FEI-63806090023.A1 63806090023	£140.58	£168.70
900 - ARMATURE FEI-53203029228.A0 53203029228	£138.63	£166.36
910 - GROOVED BALL BEARING FEI-41701001172.A132 41701001172	£9.63	£11.56
920 - INTERMEDIATE GEAR BOX FEI-32433026004.A0 32433026004	£85.43	£102.52
930 - FILLISTER HEAD SCREW FEI-43041024997.A8 43041024997	£1.60	£1.92
940 - CIRCLIP FEI-42443002992.A84 42443002992	£1.60	£1.92
950 - HANDLE FEI-32119047004.A2 32119047004	£21.48	£25.77
1020 - DISC FEI-42446003009.A54 42446003009	£1.60	£1.92
1030 - GROOVED BALL BEARING FEI-41701213011.A48 41701213011	£8.92	£10.70
1040 - CIRCLIP FEI-42616007001.A21 42616007001	£1.60	£1.92
1050 - GROOVED BALL BEARING FEI-41701218046.A3 41701218046	£15.95	£19.14
1060 - CIRCLIP FEI-42616018008.A0 42616018008	£1.60	£1.92
1070 - SHAFT FEI-33406172002.A0 33406172002	£55.72	£66.86
1080 - DISC FEI-32408277003.A1 32408277003	£5.32	£6.38
5000 - JAW SPANNER SW17 FEI-62903002009.A6 62903002009	£11.61	£13.93
5010 - RETAINING PIN FEI-62913004000.A3 62913004000	£7.50	£9.00
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A107 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A565 34130054061	-
