Fein KS 10-38 E (50/60Hz 220/230V) / 72216700230 Spare Parts

Fein KS 10-38 E ⡐/60Hz 220/230V) / 72216700230 Spare Parts

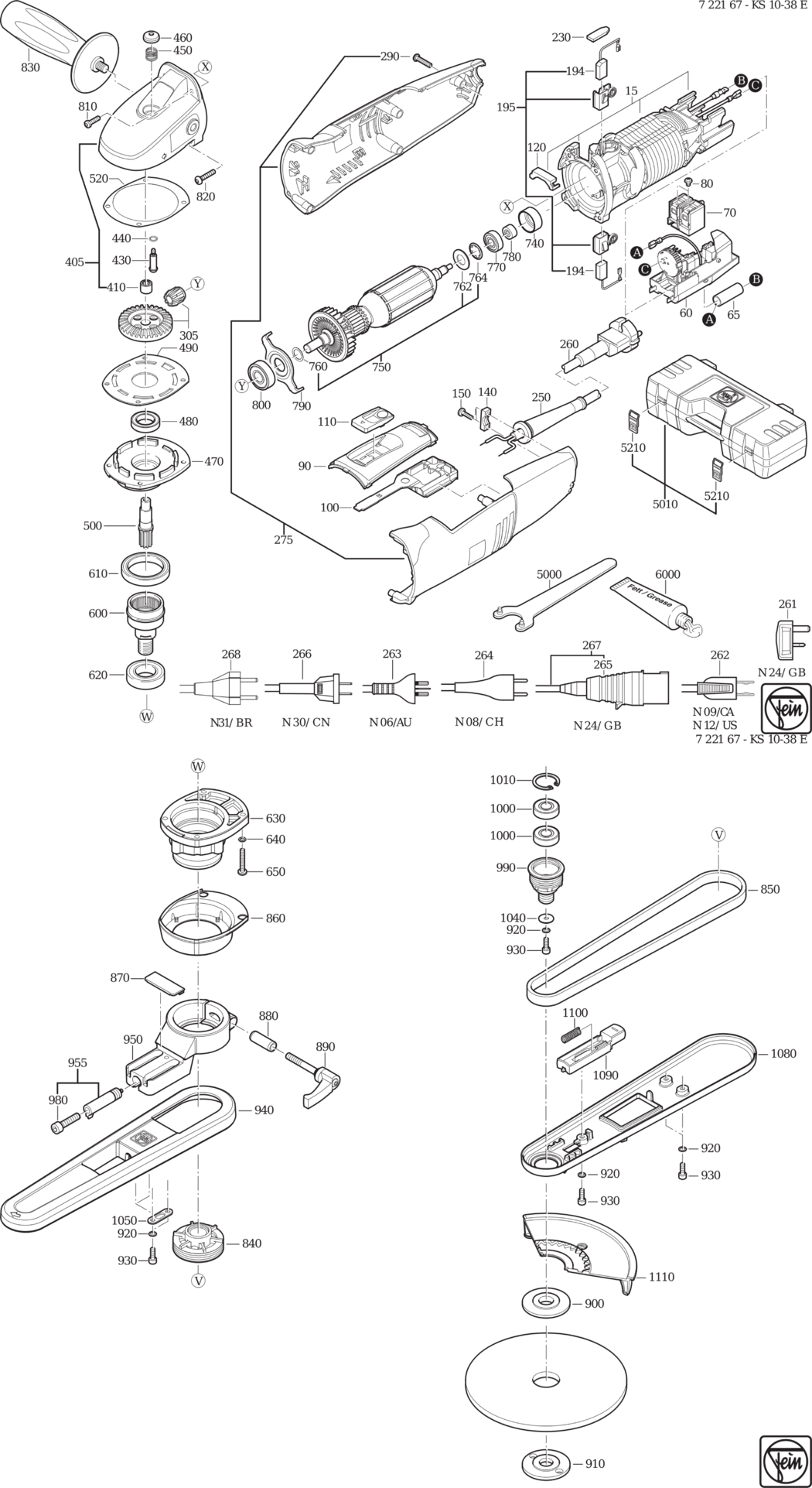

An exploded diagram and spare parts listing for the Fein KS 10-38 E (50/60Hz 220/230V) / 72216700230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A7 52277030230	£92.07	£110.48
60 - SPEED SETTING SWITCH FEI-30762376990.A3 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A14 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A80 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A8 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A2 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A5 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A28 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A16 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A38 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A7 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A0 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A54 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A0 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A169 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A53 30707544010	-
275 - MOTOR HOUSING FEI-31912097010.A17 31912097010	-
290 - SCREW FEI-43074008000.A15 43074008000	£1.60	£1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A79 33809229012	£57.88	£69.46
405 - GEARBOX HOUSING FEI-31206142020.A27 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A88 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A129 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A171 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A20 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A76 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419116009.A11 32419116009	£55.68	£66.82
480 - GROOVED BALL BEARING FEI-41701010054.A41 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A29 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED FEI-33713065003.A6 33713065003	£48.38	£58.06
520 - DISC FEI-32624117009.A77 32624117009	£1.60	£1.92
600 - SHAFT TOOTHED M14 FEI-33804029000.A0 33804029000	-
610 - GROOVED BALL BEARING FEI-41701110228.A3 41701110228	£36.28	£43.53
620 - GROOVED BALL BEARING FEI-41701109051.A28 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508275000.A0 31508275000	-
640 - CIRCLIP M4 FEI-42443003043.A76 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A12 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A140 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A2 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A34 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A20 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A20 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A258 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A61 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A79 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A121 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A49 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A61 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A121 32119124010	£17.68	£21.22
840 - DRIVE WHEEL FEI-32101099000.A0 32101099000	-
850 - V-BELT FEI-32104030000.A0 32104030000	£37.23	£44.68
860 - COVER FEI-32435051000.A0 32435051000	-
870 - COVER FEI-32429137000.A0 32429137000	-
880 - SLEEVE FEI-30501362000.A0 30501362000	-
890 - LEVER FEI-32170023000.A0 32170023000	-
900 - GRINDING DISC FLANGE I FEI-63801179000.A0 63801179000	£21.99	£26.39
910 - GRINDING DISC FLANGE A FEI-63802190000.A0 63802190000	£22.42	£26.91
920 - CIRCLIP M4 FEI-42443003043.A77 42443003043	£1.60	£1.92
930 - CYLINDER HEAD SCREW FEI-43035006048.A8 43035006048	-
940 - HOUSING OT FEI-31207281000.A0 31207281000	£74.26	£89.11
950 - HOUSING FEI-31207282000.A0 31207282000	-
955 - CLAMPING SLEEVE FEI-30502066010.A0 30502066010	-
980 - CYLINDER HEAD SCREW FEI-43035129060.A2 43035129060	-
990 - SHAFT FEI-33406310000.A0 33406310000	£61.34	£73.61
1000 - GROOVED BALL BEARING FEI-41701006034.A22 41701006034	£11.83	£14.20
1010 - CIRCLIP J24X1 2 FEI-42616079000.A0 42616079000	-
1040 - DISC FEI-32408440000.A0 32408440000	£8.11	£9.73
1050 - DISC FEI-32414124000.A0 32414124000	-
1080 - HOUSING FEI-31207280000.A0 31207280000	-
1090 - PUSHBUTTON FEI-32805303010.A0 32805303010	-
1100 - SPIRAL SPRING FEI-30901386000.A0 30901386000	-
1110 - HOOD FEI-31810285000.A0 31810285000	£38.08	£45.69
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A198 62910022002	£7.22	£8.67
5010 - TOOL CASE FEI-33901130050.A3 33901130050	£118.66	£142.39
5210 - WIRE CLAMP FEI-30232050000.A215 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A105 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A561 34130054061	-
