Fein FSS 12-27 E (50Hz 230V) / 72209200236 Spare Parts

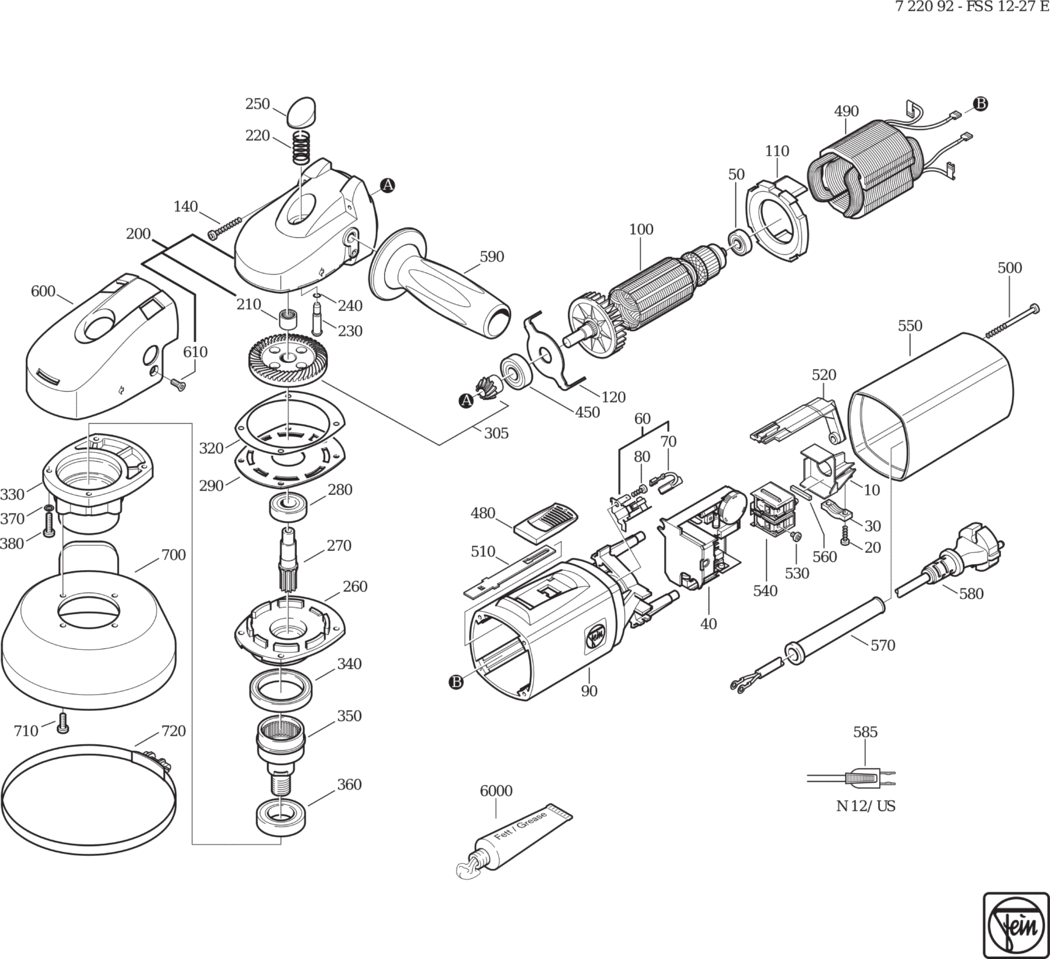

An exploded diagram and spare parts listing for the Fein FSS 12-27 E (50Hz 230V) / 72209200236

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A182 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A17 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A17 32431040006	£2.78	£3.33
40 - SPEED SETTING SWITCH FEI-30762214999.A7 30762214999	£125.65	£150.78
50 - GROOVED BALL BEARING FEI-41701001172.A133 41701001172	£9.63	£11.56
60 - BRUSH HOLDER FEI-30712088013.A32 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A35 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A116 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A14 31901114014	£46.03	£55.24
100 - ARMATURE FEI-53273001233.A13 53273001233	£133.28	£159.93
110 - AIR GUIDE RING FEI-31428118007.A49 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A35 32416098005	£1.60	£1.92
140 - SCREW FEI-43070007002.A130 43070007002	£1.60	£1.92
200 - GEARBOX HOUSING FEI-31206110015.A6 31206110015	£78.98	£94.78
210 - NEEDLE SLEEVE FEI-41705019001.A89 41705019001	£9.49	£11.39
220 - SPIRAL SPRING FEI-30901032003.A28 30901032003	£3.23	£3.88
230 - BOLT FEI-30217327003.A5 30217327003	£17.44	£20.93
240 - SEALING RING FEI-40612137008.A169 40612137008	£1.60	£1.92
250 - PUSHBUTTON FEI-32805185002.A5 32805185002	£2.69	£3.23
260 - BEARING PLATE FEI-32419116009.A13 32419116009	£55.68	£66.82
270 - SHAFT TOOTHED FEI-33713065003.A8 33713065003	£48.38	£58.06
280 - GROOVED BALL BEARING FEI-41701010054.A38 41701010054	£8.25	£9.90
290 - PLATE FEI-32416101009.A26 32416101009	£3.11	£3.73
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A80 33809229012	£57.88	£69.46
320 - DISC FEI-32624117009.A79 32624117009	£1.60	£1.92
330 - GEARBOX HOUSING FEI-31508241003.A6 31508241003	£61.73	£74.08
340 - GROOVED BALL BEARING FEI-41701110228.A0 41701110228	£36.28	£43.53
350 - SHAFT TOOTHED FEI-33804023002.A10 33804023002	£125.44	£150.53
360 - GROOVED BALL BEARING FEI-41701109051.A31 41701109051	£23.72	£28.46
370 - CIRCLIP M4 FEI-42443003043.A78 42443003043	£1.60	£1.92
380 - FILLISTER HEAD SCREW FEI-43041027045.A35 43041027045	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701007266.A124 41701007266	£10.67	£12.80
480 - SLIDE SWITCH FEI-32805156008.A34 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A21 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A6 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A33 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A41 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A6 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A82 30701285000	£17.50	£21.00
550 - COVER FEI-31201101008.A14 31201101008	£17.71	£21.25
560 - PRESSURE PIECE FEI-31415082004.A50 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A88 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707336013.A10 30707336013	£19.38	£23.25
590 - HANDLE FEI-32119107016.A2 32119107016	£10.15	£12.18
600 - HOOD FEI-31428125001.A16 31428125001	£10.52	£12.63
610 - COUNTERSUNK SCREW FEI-43064020049.A14 43064020049	£1.60	£1.92
700 - PROTECT.SUCTION HOOD FEI-31810240014.A1 31810240014	£42.08	£50.50
710 - FILLISTER HEAD SCREW FEI-43064002043.A17 43064002043	£1.60	£1.92
720 - CLAMP FITTING FEI-30234018001.A3 30234018001	£18.48	£22.18
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A109 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A567 34130054061	-

Attribute Name	Value
Brand	Fein
