Fein BGM (50/60Hz 220/230V) / 72223300230 Spare Parts

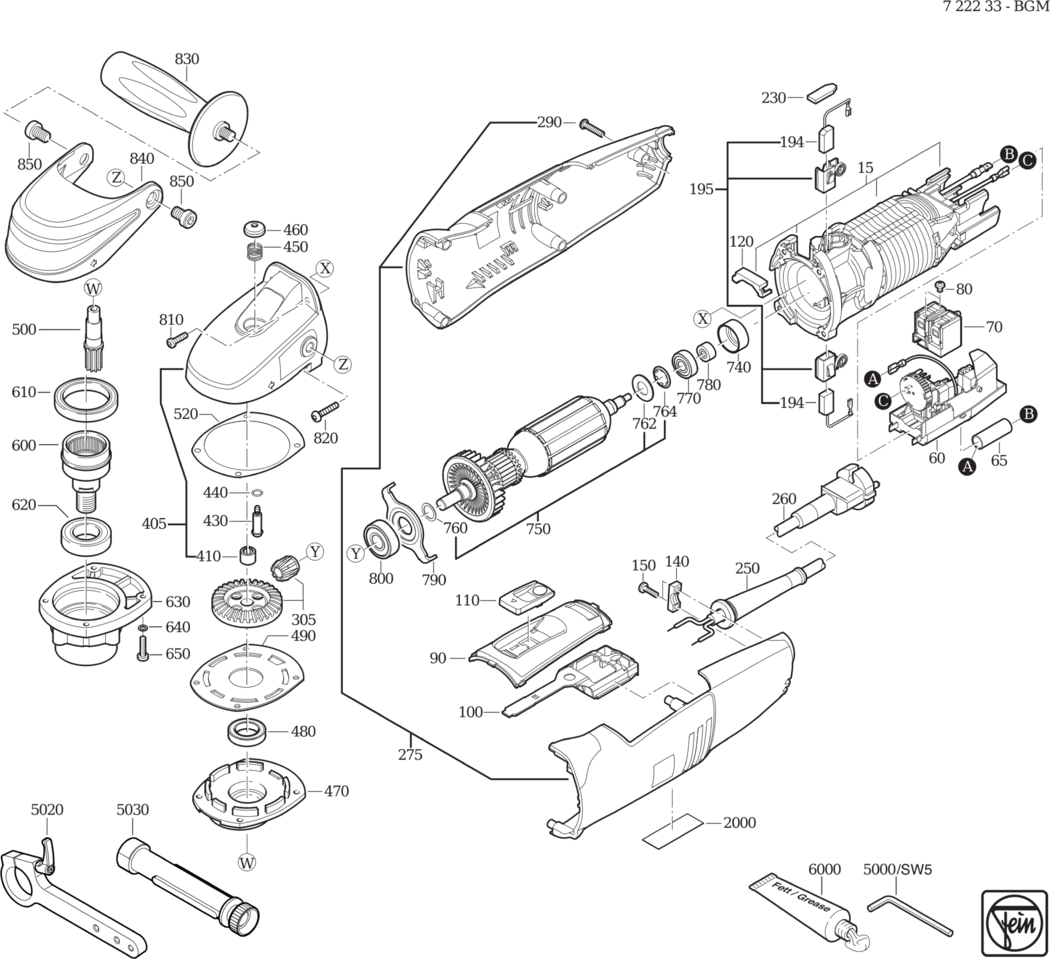

An exploded diagram and spare parts listing for the Fein BGM (50/60Hz 220/230V) / 72223300230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A9 52276032230	£89.51	£107.41
60 - ELECTRONICS FEI-30762455990.A0 30762455990	-
65 - INSULATING HOSE FEI-31413232000.A42 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A32 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A139 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427144000.A0 32427144000	£5.04	£6.05
100 - CONTROL ROD FEI-32816070000.A8 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805240000.A0 32805240000	£2.27	£2.72
120 - COVER FEI-32805224000.A45 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A139 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A117 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A39 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A30 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A39 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A57 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A1 30707544010	-
275 - MOTOR HOUSING FEI-31912130010.A0 31912130010	£35.38	£42.45
290 - SCREW FEI-43074008000.A160 43074008000	£1.60	£1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A39 33809229012	£57.88	£69.46
405 - GEARBOX HOUSING FEI-31206142020.A5 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A76 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A66 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A170 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A19 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A77 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419116009.A14 32419116009	£55.68	£66.82
480 - GROOVED BALL BEARING FEI-41701010054.A39 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A27 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED FEI-33713065003.A9 33713065003	£48.38	£58.06
520 - DISC FEI-32624117009.A80 32624117009	£1.60	£1.92
600 - SHAFT TOOTHED FEI-33804023002.A9 33804023002	£125.44	£150.53
610 - GROOVED BALL BEARING FEI-41701110228.A1 41701110228	£36.28	£43.53
620 - GROOVED BALL BEARING FEI-41701109051.A30 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508241003.A7 31508241003	£61.73	£74.08
640 - CIRCLIP M4 FEI-42443003043.A79 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A13 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A141 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A16 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A35 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A21 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A21 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A257 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A62 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A80 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A123 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A48 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A62 43074009000	£1.60	£1.92
840 - HOOD FEI-31428162000.A10 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A18 43033046087	£1.60	£1.92
5000 - HANDLE FEI-32119107016.A1 32119107016	£10.15	£12.18
5010 - SAFETY GUARD FEI-30229216005.A4 30229216005	£10.81	£12.97
5020 - N.A. FEI-33021104020.A0 33021104020	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A110 32160003014	-
