Fein BF 10-280 E (50/60Hz 220/230V) / 72280500230 Spare Parts

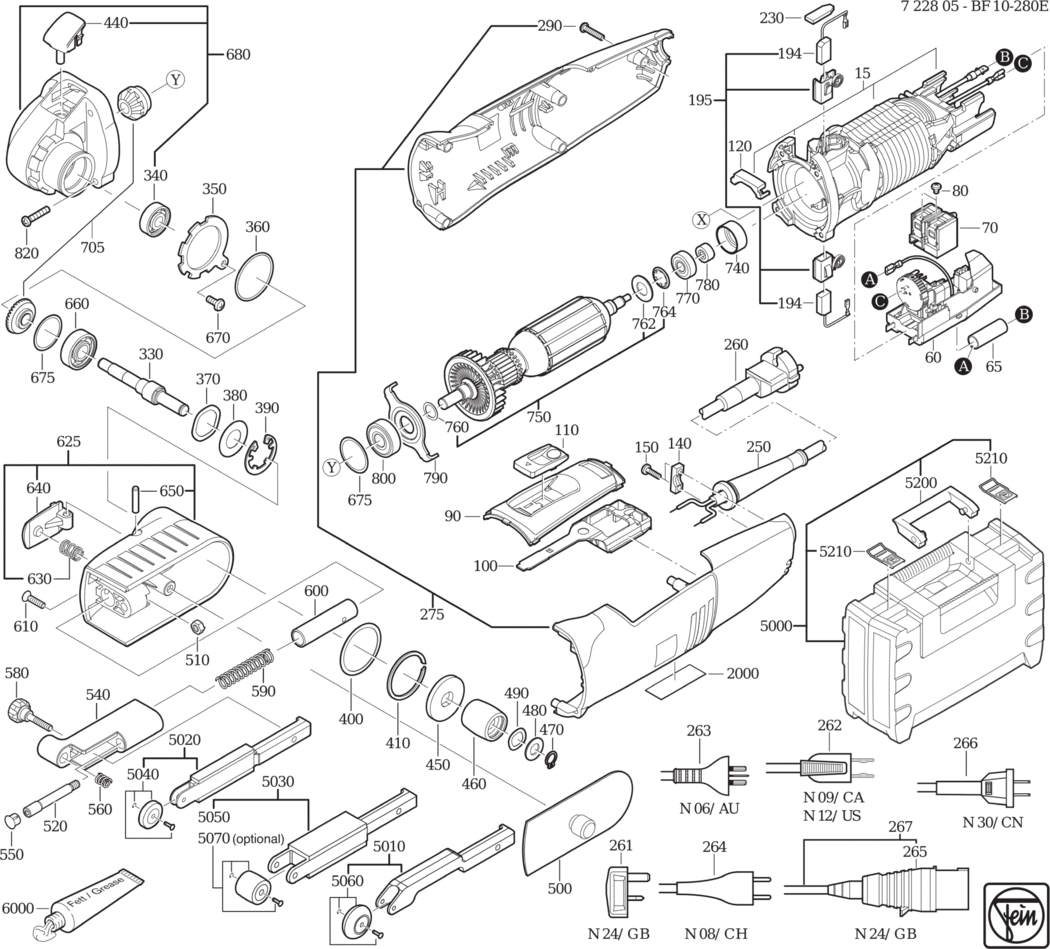

An exploded diagram and spare parts listing for the Fein BF 10-280 E (50/60Hz 220/230V) / 72280500230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A4 52277030230	£92.07	£110.48
60 - SPEED SETTING SWITCH FEI-30762376990.A13 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A43 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A26 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A145 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A3 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A9 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805300000.A0 32805300000	-
120 - COVER FEI-32805224000.A48 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A142 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A120 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A38 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A28 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A40 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A56 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A0 30707544010	-
275 - MOTOR HOUSING FEI-31912097010.A1 31912097010	-
290 - SCREW FEI-43074008000.A157 43074008000	£1.60	£1.92
330 - SHAFT FEI-33406305000.A2 33406305000	-
340 - GROOVED BALL BEARING FEI-41701204010.A14 41701204010	£6.37	£7.64
350 - DISC FEI-32414118000.A2 32414118000	-
360 - SEALING RING FEI-40612128007.A11 40612128007	£1.60	£1.92
370 - DISC FEI-42446015000.A18 42446015000	£1.60	£1.92
380 - DISC FEI-32408346008.A4 32408346008	£4.26	£5.11
390 - CIRCLIP FEI-42635003004.A4 42635003004	£1.60	£1.92
400 - DISC FEI-32408420000.A0 32408420000	-
410 - CIRCLIP FEI-42615149000.A2 42615149000	-
440 - COVER FEI-32805201016.A4 32805201016	£14.27	£17.12
450 - DISC FEI-32408421000.A3 32408421000	-
460 - ROLLER FEI-32101098000.A2 32101098000	£19.82	£23.79
470 - CIRCLIP FEI-42616037008.A6 42616037008	£1.60	£1.92
480 - DISC FEI-32408295004.A0 32408295004	£4.59	£5.51
490 - DISC FEI-42446008006.A1 42446008006	£1.60	£1.92
500 - COVER FEI-32422313000.A2 32422313000	£38.62	£46.35
510 - NUT FEI-31338011000.A1 31338011000	£2.55	£3.06
520 - SCREW FEI-31338002000.A2 31338002000	£51.28	£61.53
540 - HOUSING FEI-31338008000.A2 31338008000	£63.26	£75.91
550 - PLUG FEI-31338003000.A1 31338003000	-
560 - SPIRAL SPRING FEI-31338004000.A2 31338004000	-
580 - SCREW FEI-31338001010.A3 31338001010	-
590 - SPIRAL SPRING FEI-31338005000.A3 31338005000	-
600 - BOLT FEI-31338006000.A0 31338006000	£37.41	£44.89
610 - COUNTERSUNK SCREW FEI-31338012000.A2 31338012000	-
625 - HOUSING FEI-31207267010.A2 31207267010	£112.06	£134.47
630 - SPIRAL SPRING FEI-31338010000.A2 31338010000	-
640 - LEVER FEI-32805222000.A2 32805222000	-
650 - PIN FEI-31338009000.A1 31338009000	-
660 - GROOVED BALL BEARING FEI-41701007266.A58 41701007266	£10.67	£12.80
670 - FILLISTER HEAD SCREW FEI-43064023045.A2 43064023045	£1.60	£1.92
675 - DISC FEI-32624056027.A6 32624056027	£3.48	£4.18
680 - GEARBOX HOUSING FEI-31206139040.A0 31206139040	-
705 - BEVEL GEAR Z=16/17 FEI-33809239010.A2 33809239010	£118.82	£142.59
740 - BEARING BUSH FEI-30507236000.A60 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A6 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A96 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A31 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A62 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A128 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A31 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A47 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A57 41701007266	£10.67	£12.80
820 - SCREW FEI-43074009000.A2 43074009000	£1.60	£1.92
5000 - TOOL CASE FEI-33901118010.A24 33901118010	£68.67	£82.40
5010 - STEPPED GRINDING ARM FEI-63810026010.A3 63810026010	£103.15	£123.78
5020 - STRAIGHT GRINDING ARM FEI-63810027010.A0 63810027010	£103.15	£123.78
5030 - STRAIGHT GRINDING ARM FEI-63810030010.A3 63810030010	£134.85	£161.82
5040 - ROLLER SET 19X4 MM FEI-31338018010.A0 31338018010	£46.91	£56.29
5050 - ROLLER SET 17 5X15 5 MM FEI-31338020010.A0 31338020010	£54.10	£64.92
5060 - ROLLER SET 25X9 MM FEI-31338019010.A0 31338019010	£46.91	£56.29
5070 - STAINLESS STEEL ROLLER SET 18 7X15 5 MM FEI-31338021010.A0 31338021010	£72.79	£87.35
5200 - HANDLE FEI-32119122000.A1 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A84 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A32 32160003135	-

Attribute Name	Value
Brand	Fein
