Fein WPO 14-15 XE (50/60Hz 220/230V) / 72215000230 Spare Parts

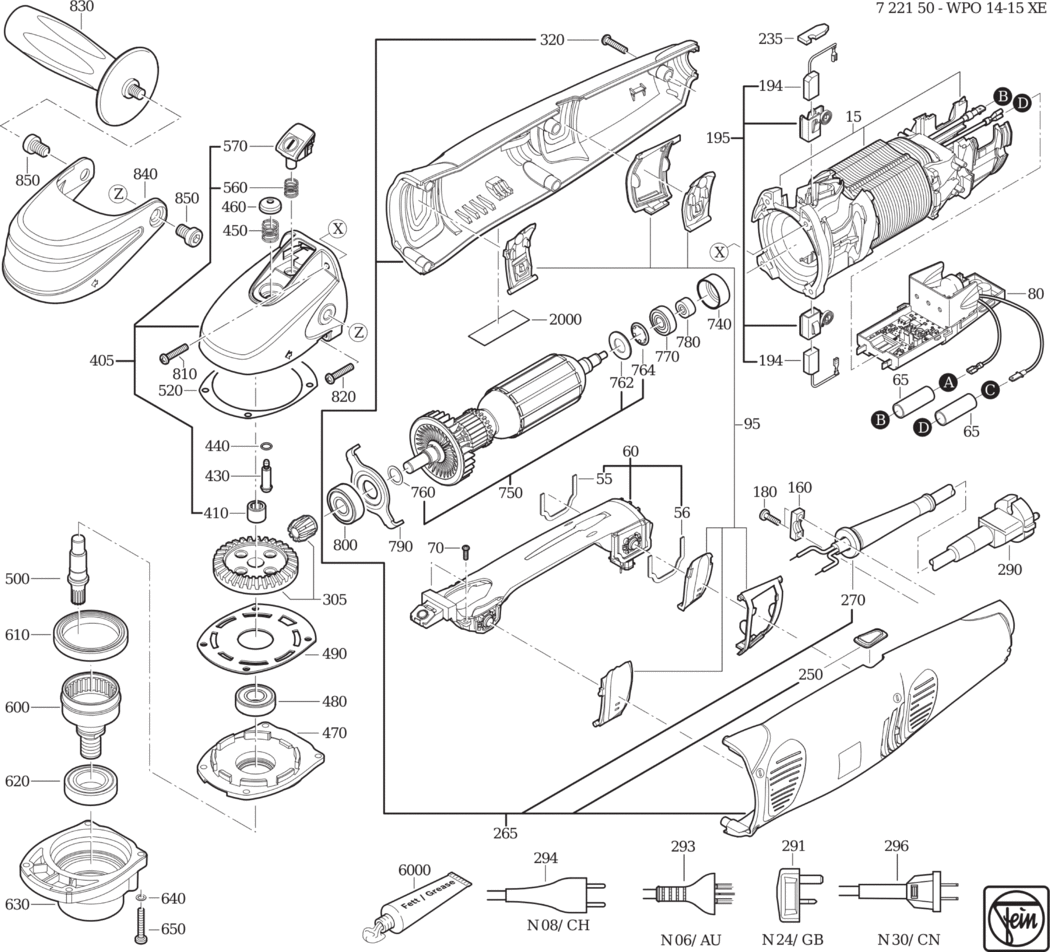

An exploded diagram and spare parts listing for the Fein WPO 14-15 XE (50/60Hz 220/230V) / 72215000230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276046230.A0 52276046230	-
55 - SEAL FEI-31415096000.A3 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A35 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS5V FEI-30701255990.A6 30701255990	£136.54	£163.85
65 - INSULATING HOSE FEI-31413234000.A4 31413234000	£4.05	£4.86
70 - SCREW FEI-43070044007.A1 43070044007	£1.60	£1.92
80 - SPEED SETTING SWITCH FEI-30762386990.A0 30762386990	£139.01	£166.81
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A23 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A27 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A3 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A2 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A50 30712093110	£30.80	£36.96
235 - COVER FEI-31420125000.A15 31420125000	£1.60	£1.92
250 - COVER FEI-32427124006.A9 32427124006	-
265 - MOTOR HOUSING FEI-31912077010.A3 31912077010	-
270 - CABLE GROMMET FEI-31413282000.A171 31413282000	£2.55	£3.06
290 - CABLE WITH PLUG FEI-30707544010.A54 30707544010	-
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A72 33809229012	£57.88	£69.46
320 - SCREW FEI-43074008000.A21 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206132050.A3 31206132050	-
410 - NEEDLE SLEEVE FEI-41705019001.A91 41705019001	£9.49	£11.39
430 - BOLT FEI-30217345004.A0 30217345004	-
440 - SEALING RING FEI-40612137008.A178 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A26 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A73 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419128000.A4 32419128000	£46.07	£55.28
480 - GROOVED BALL BEARING FEI-41701010054.A46 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A38 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED Z=9 FEI-33713069000.A2 33713069000	£33.45	£40.14
520 - DISC FEI-32624117009.A68 32624117009	£1.60	£1.92
560 - SPIRAL SPRING FEI-30901366000.A6 30901366000	-
570 - PUSHBUTTON FEI-32805215010.A2 32805215010	-
600 - SHAFT TOOTHED Z=41 FEI-33804027000.A3 33804027000	£74.75	£89.70
610 - GROOVED BALL BEARING FEI-41701114222.A3 41701114222	£39.62	£47.55
620 - GROOVED BALL BEARING FEI-41701109051.A32 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508255001.A0 31508255001	£59.15	£70.98
640 - CIRCLIP M4 FEI-42443003043.A82 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A11 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A134 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A15 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A26 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A22 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A22 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A254 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A63 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A71 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A111 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A42 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A60 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A117 32119124010	£17.68	£21.22
840 - HOOD FEI-31428162000.A4 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A12 43033046087	£1.60	£1.92
2000 - INFORMATION SIGN FEI-32217417000.A0 32217417000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A120 32160003014	-
9000 - OPERATING INSTRUCTIONS WPO14-15XE FEI-34101118060.A0 34101118060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A572 34130054061	-

Attribute Name	Value
Brand	Fein
