Fein WPO 13-15 E (50/60Hz 230V) / 72211800231 Spare Parts

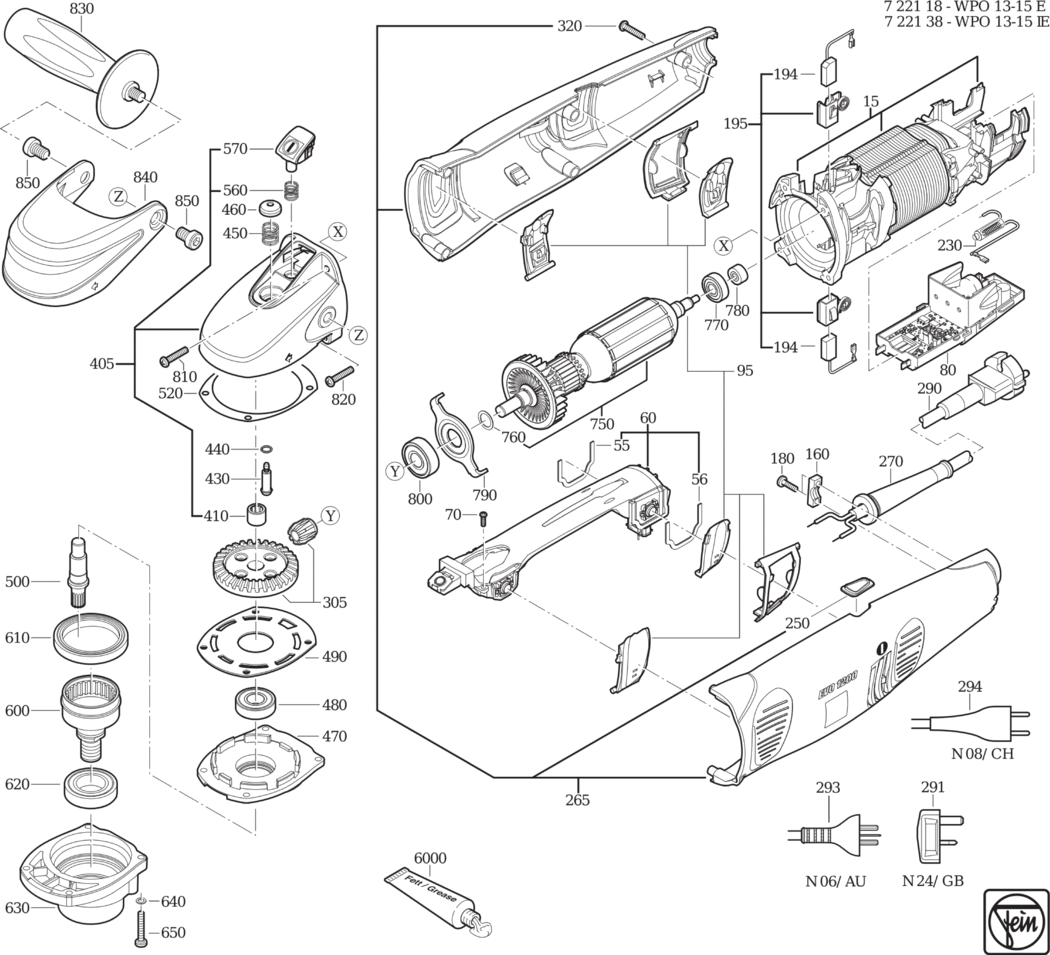

An exploded diagram and spare parts listing for the Fein WPO 13-15 E (50/60Hz 230V) / 72211800231

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276008234.A1 52276008234	-
55 - SEAL FEI-31415096000.A38 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A0 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS5V FEI-30701255990.A3 30701255990	£136.54	£163.85
70 - SCREW FEI-43070044007.A18 43070044007	£1.60	£1.92
80 - SPEED SETTING SWITCH FEI-30762282990.A1 30762282990	-
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A14 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A110 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A78 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A44 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A14 30712093110	£30.80	£36.96
230 - CHOKE FEI-30764134009.A4 30764134009	£10.95	£13.14
250 - COVER FEI-32427124006.A3 32427124006	-
265 - MOTOR HOUSING FEI-31912077010.A1 31912077010	-
270 - CABLE GROMMET FEI-31413282000.A44 31413282000	£2.55	£3.06
290 - CABLE WITH PLUG FEI-30707403017.A12 30707403017	-
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A16 33809229012	£57.88	£69.46
320 - SCREW FEI-43070045001.A10 43070045001	-
405 - GEARBOX HOUSING FEI-31206132050.A1 31206132050	-
410 - NEEDLE SLEEVE FEI-41705019001.A36 41705019001	£9.49	£11.39
430 - BOLT FEI-30217345004.A13 30217345004	-
440 - SEALING RING FEI-40612137008.A137 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A36 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A139 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419128000.A5 32419128000	£46.07	£55.28
480 - GROOVED BALL BEARING FEI-41701010054.A143 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A80 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED Z=9 FEI-33713069000.A0 33713069000	£33.45	£40.14
520 - DISC FEI-32624117009.A37 32624117009	£1.60	£1.92
560 - SPIRAL SPRING FEI-30901366000.A3 30901366000	-
570 - PUSHBUTTON FEI-32805215010.A0 32805215010	-
600 - SHAFT TOOTHED Z=41 FEI-33804027000.A0 33804027000	£74.75	£89.70
610 - GROOVED BALL BEARING FEI-41701114222.A5 41701114222	£39.62	£47.55
620 - GROOVED BALL BEARING FEI-41701109051.A10 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508255001.A5 31508255001	£59.15	£70.98
640 - CIRCLIP M4 FEI-42443003043.A213 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A3 43064025040	£1.60	£1.92
750 - ARMATURE FEI-53276001236.A0 53276001236	-
760 - CIRCLIP FEI-42615081002.A64 42615081002	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A15 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A5 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A19 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A0 41701007266	£10.67	£12.80
810 - SCREW FEI-43070043009.A11 43070043009	£1.60	£1.92
820 - SCREW FEI-43070031003.A72 43070031003	£1.60	£1.92
830 - HANDLE FEI-32119107016.A84 32119107016	£10.15	£12.18
840 - HOOD FEI-31428162000.A13 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A7 43033046087	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A417 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A329 34130054061	-
