Fein WPO 10-25 E (50Hz 110V) / 72216324110 Spare Parts

Fein WPO 10-25 E ⡐Hz 110V) / 72216324110 Spare Parts

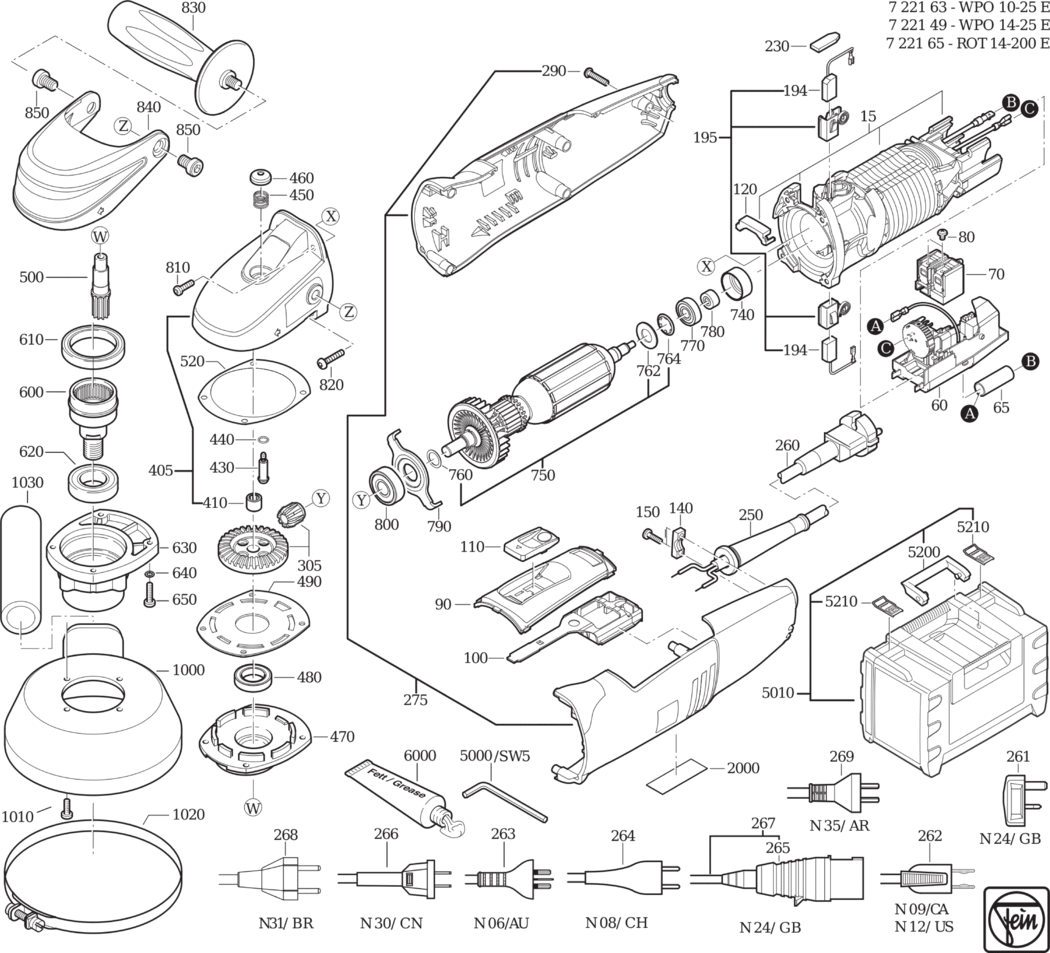

An exploded diagram and spare parts listing for the Fein WPO 10-25 E (50Hz 110V) / 72216324110

	Ex VAT	Inc VAT
15 - STATOR UNIT 110-120V 50/60HZ FEI-52277030110.A6 52277030110	£98.04	£117.65
60 - SPEED SETTING SWITCH 110V-120V 50/60HZ FEI-30762393990.A8 30762393990	£122.30	£146.76
65 - INSULATING HOSE FEI-31413232000.A25 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A0 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A70 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A9 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A15 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A8 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A36 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A108 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A80 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A30 30711168000	-
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A23 30712093080	£29.78	£35.73
230 - COVER FEI-31420124000.A27 31420124000	£1.60	£1.92
250 - PROTECTIVE HOSE FEI-31413237000.A48 31413237000	£2.74	£3.29
267 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A11 30707491010	£30.05	£36.06
275 - MOTOR HOUSING FEI-31912097010.A9 31912097010	-
290 - SCREW FEI-43074008000.A103 43074008000	£1.60	£1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A17 33809229012	£57.88	£69.46
405 - GEARBOX HOUSING FEI-31206142020.A12 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A37 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A5 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A136 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A37 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A138 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419116009.A10 32419116009	£55.68	£66.82
480 - GROOVED BALL BEARING FEI-41701010054.A142 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A79 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED FEI-33713065003.A14 33713065003	£48.38	£58.06
520 - DISC FEI-32624117009.A38 32624117009	£1.60	£1.92
600 - SHAFT TOOTHED FEI-33804023002.A0 33804023002	£125.44	£150.53
610 - GROOVED BALL BEARING FEI-41701110228.A13 41701110228	£36.28	£43.53
620 - GROOVED BALL BEARING FEI-41701109051.A12 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508241003.A18 31508241003	£61.73	£74.08
640 - CIRCLIP M4 FEI-42443003043.A211 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A5 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A124 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003360.A0 53277003360	£120.28	£144.33
760 - CIRCLIP FEI-42615081002.A65 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A47 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A46 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A16 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A7 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A20 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A2 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A10 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A17 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A76 32119124010	£17.68	£21.22
840 - HOOD FEI-31428162000.A12 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A5 43033046087	£1.60	£1.92
5000 - ALLEN KEY SW5 FEI-62907011009.A26 62907011009	£3.29	£3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A413 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101113060.A2 34101113060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A330 34130054061	-
