Fein WPO 10-25 E (50/60Hz 220/230V) / 72216300230 Spare Parts

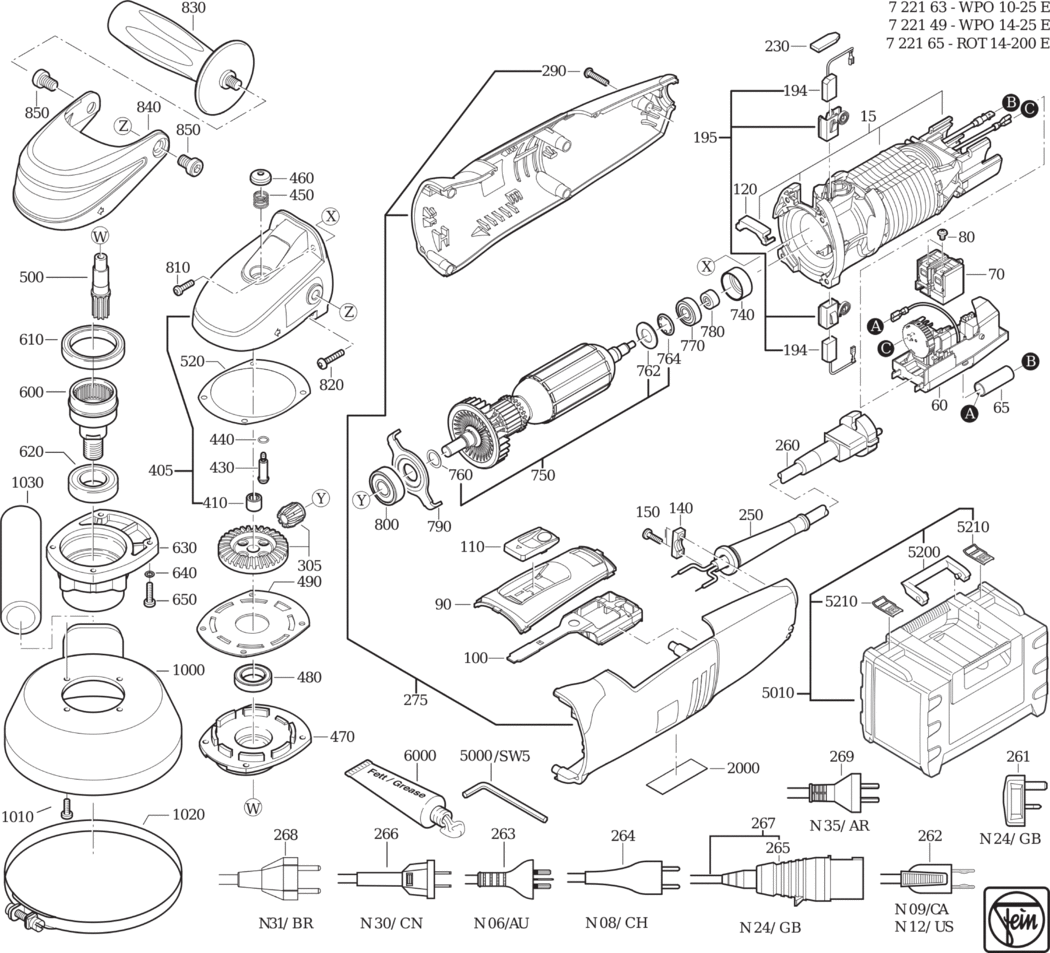

An exploded diagram and spare parts listing for the Fein WPO 10-25 E (50/60Hz 220/230V) / 72216300230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A1 52277030230	£92.07	£110.48
60 - SPEED SETTING SWITCH FEI-30762376990.A7 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A27 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A5 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A69 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427139000.A7 32427139000	£5.15	£6.18
100 - CONTROL ROD FEI-32816072000.A13 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A11 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A33 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A105 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A75 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A41 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A11 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A22 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A48 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A26 30707544010	-
275 - MOTOR HOUSING FEI-31912097010.A7 31912097010	-
290 - SCREW FEI-43074008000.A102 43074008000	£1.60	£1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A14 33809229012	£57.88	£69.46
405 - GEARBOX HOUSING FEI-31206142020.A17 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A34 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A0 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A139 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A40 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A133 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419116009.A7 32419116009	£55.68	£66.82
480 - GROOVED BALL BEARING FEI-41701010054.A139 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A75 32416101009	£3.11	£3.73
500 - SHAFT TOOTHED FEI-33713065003.A10 33713065003	£48.38	£58.06
520 - DISC FEI-32624117009.A35 32624117009	£1.60	£1.92
600 - SHAFT TOOTHED FEI-33804023002.A3 33804023002	£125.44	£150.53
610 - GROOVED BALL BEARING FEI-41701110228.A11 41701110228	£36.28	£43.53
620 - GROOVED BALL BEARING FEI-41701109051.A14 41701109051	£23.72	£28.46
630 - GEARBOX HOUSING FEI-31508241003.A15 31508241003	£61.73	£74.08
640 - CIRCLIP M4 FEI-42443003043.A209 42443003043	£1.60	£1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A1 43064025040	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A126 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A11 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A61 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A46 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A50 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A12 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A3 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A24 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A5 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A12 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A24 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A75 32119124010	£17.68	£21.22
840 - HOOD FEI-31428162000.A16 31428162000	£28.20	£33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A3 43033046087	£1.60	£1.92
5000 - ALLEN KEY SW5 FEI-62907011009.A24 62907011009	£3.29	£3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A421 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A319 34130054061	-
