Fein MSf 843-1a (200Hz 265V) / 78208100200 Spare Parts

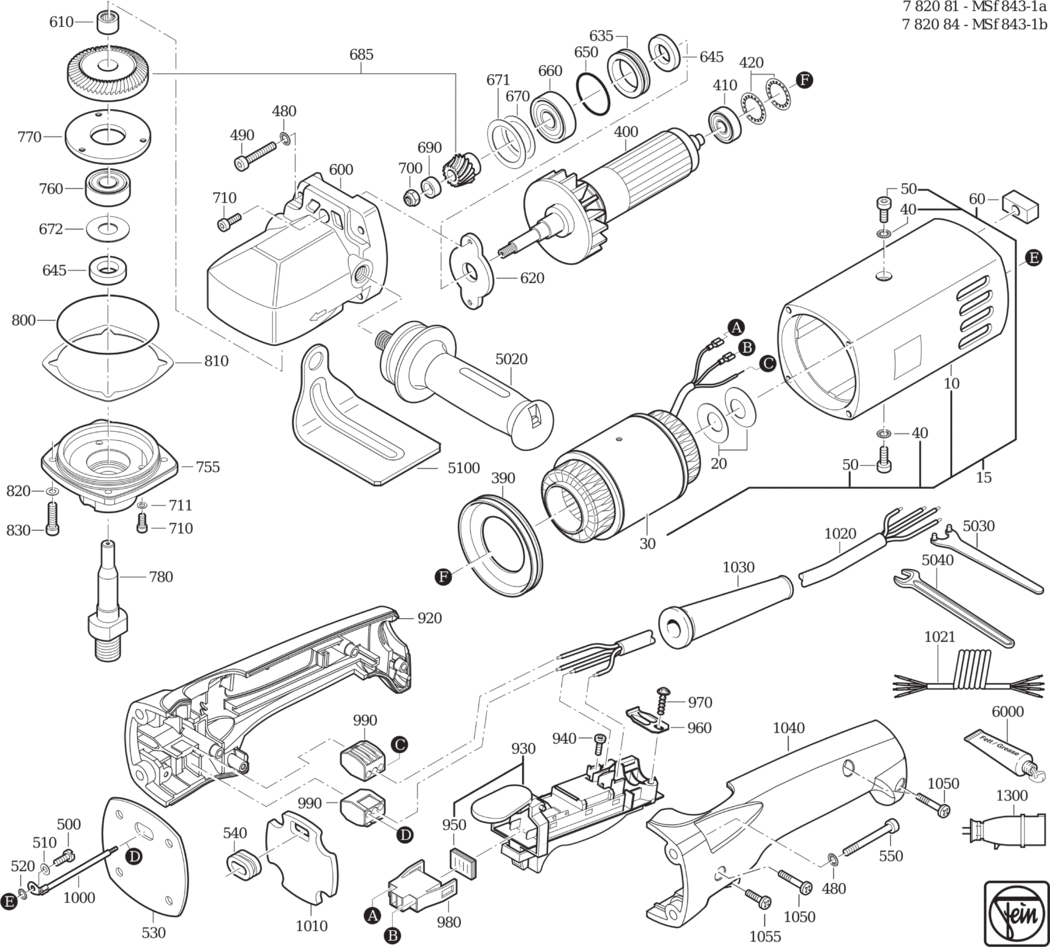

An exploded diagram and spare parts listing for the Fein MSf 843-1a (200Hz 265V) / 78208100200

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903178003.A6 31903178003	£181.17	£217.40
15 - MOTOR HOUSING WITH STAT FEI-52831004060.A2 52831004060	-
20 - SEALING RING FEI-30605076004.A0 30605076004	£3.58	£4.30
30 - STATOR FEI-51831004060.A1 51831004060	-
40 - CIRCLIP M4 FEI-42443003043.A83 42443003043	£1.60	£1.92
50 - CYLINDER HEAD SCREW FEI-43035003043.A1 43035003043	£1.60	£1.92
60 - PLUG FEI-31415032009.A15 31415032009	£6.34	£7.61
390 - AIR GUIDE RING FEI-31428065017.A7 31428065017	£30.80	£36.96
400 - ROTOR FEI-33502049015.A2 33502049015	£311.07	£373.28
410 - GROOVED BALL BEARING FEI-41701204026.A7 41701204026	£7.20	£8.64
420 - CUP SPRING FEI-30905039001.A16 30905039001	£1.60	£1.92
480 - CIRCLIP M5 FEI-42443004057.A337 42443004057	£1.60	£1.92
490 - CYLINDER HEAD SCREW FEI-43035018055.A12 43035018055	-
500 - FLAT HEADED SCREW FEI-43003029048.A1 43003029048	-
510 - DISC FEI-42404005048.A113 42404005048	£1.60	£1.92
520 - LOCK WASHER FEI-42439013046.A11 42439013046	£1.60	£1.92
530 - INSULATION BOARD FEI-31408056000.A23 31408056000	£7.32	£8.79
540 - INSULATING RING FEI-31406033009.A34 31406033009	£2.86	£3.43
550 - CYLINDER HEAD SCREW FEI-43035020051.A44 43035020051	£1.60	£1.92
600 - GEARBOX HOUSING FEI-31206094003.A0 31206094003	£176.12	£211.35
610 - NEEDLE SLEEVE FEI-41705026004.A1 41705026004	£12.35	£14.82
620 - PLATE FEI-32416086004.A7 32416086004	£9.53	£11.44
635 - RING FEI-32602090007.A2 32602090007	£48.01	£57.61
645 - SEALING RING FEI-40608071002.A0 40608071002	£39.55	£47.46
650 - SEALING RING FEI-40612038007.A32 40612038007	£10.08	£12.10
660 - GROOVED BALL BEARING FEI-41701210224.A9 41701210224	£15.09	£18.11
670 - DISC FEI-32624085021.A6 32624085021	£2.41	£2.89
671 - DISC FEI-32408019006.A7 32408019006	£7.76	£9.31
672 - DISC FEI-32624030034.A1 32624030034	£1.60	£1.92
685 - BEVEL GEAR Z=9/47 FEI-33809188016.A1 33809188016	£302.41	£362.89
690 - RING FEI-32601250002.A1 32601250002	£13.76	£16.51
700 - NUT FEI-42019009051.A13 42019009051	£1.60	£1.92
710 - CYLINDER HEAD SCREW FEI-43035004041.A16 43035004041	£1.60	£1.92
711 - SEALING RING FEI-40611007008.A14 40611007008	£4.05	£4.86
755 - PLATE FEI-32419147000.A3 32419147000	-
760 - GROOVED BALL BEARING FEI-41701010054.A233 41701010054	£8.25	£9.90
770 - PLATE FEI-32416087008.A3 32416087008	£27.65	£33.18
780 - SHAFT FEI-33406215000.A0 33406215000	£96.81	£116.17
800 - SEALING RING FEI-40612049000.A15 40612049000	£7.56	£9.07
810 - DISC FEI-32624110029.A7 32624110029	£4.09	£4.91
810 - DISC FEI-32624110035.A0 32624110035	£10.67	£12.80
820 - CIRCLIP M4 FEI-42443003043.A327 42443003043	£1.60	£1.92
830 - CYLINDER HEAD SCREW FEI-43035076041.A6 43035076041	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A13 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A56 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A51 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A65 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A108 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A110 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A88 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A18 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A84 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A69 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A12 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A39 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A89 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A29 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A112 43070038007	£1.60	£1.92
5020 - ANTI-VIBRATION HANDLE FEI-32119118013.A4 32119118013	£58.22	£69.87
5040 - JAW SPANNER SW17 FEI-62903002009.A82 62903002009	£11.61	£13.93
5100 - SAFETY GUARD FEI-30229216005.A1 30229216005	£10.81	£12.97
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A30 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A6 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A196 34130054061	-
