Fein GX 75 / 79012100403 Spare Parts

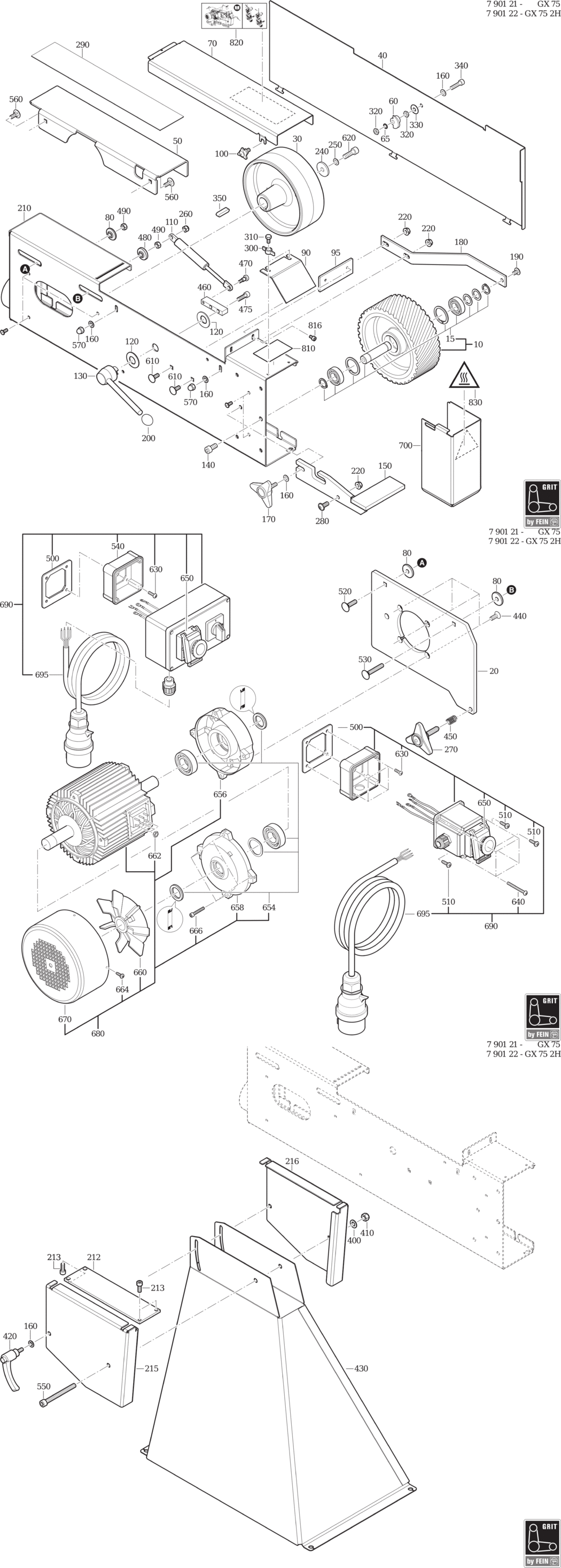

An exploded diagram and spare parts listing for the Fein GX 75 / 79012100403

	Ex VAT	Inc VAT
10 - CONTACT WHEEL FEI-39000001006.A30 39000001006	£384.33	£461.20
15 - SHAFT FEI-39000001459.A30 39000001459	£122.21	£146.65
20 - FLANGE FEI-39000000515.A2 39000000515	-
30 - DRIVE WHEEL FEI-39000001103.A3 39000001103	£284.94	£341.93
40 - COVER FEI-39000000516.A11 39000000516	-
50 - SANDING TABLE FEI-39000000517.A2 39000000517	-
60 - LOCKING BAR FEI-39000000087.A15 39000000087	-
65 - DISC FEI-39000006362.A10 39000006362	-
70 - COVER FEI-39000000518.A11 39000000518	£104.71	£125.65
80 - BUSH FEI-39000000519.A2 39000000519	£16.88	£20.26
90 - EYE GUARD FEI-39000005129.A13 39000005129	£33.62	£40.35
95 - SUPPORT FEI-39000004673.A9 39000004673	-
100 - HANDLE M8 FEI-39000000085.A1 39000000085	£17.68	£21.22
110 - GAS COMPRESSION SPRING FEI-39000000484.A16 39000000484	£67.01	£80.41
120 - CUP SPRING 20 4X2 FEI-39000000160.A8 39000000160	-
130 - LEVER FEI-39000001158.A12 39000001158	-
140 - SCREW FEI-39000000099.A46 39000000099	-
150 - WORKPIECE SUPPORT FEI-39000000521.A2 39000000521	£82.98	£99.58
160 - DISC FEI-39000000090.A90 39000000090	£1.60	£1.92
170 - HANDLE M8X30 FEI-39000000171.A78 39000000171	£20.96	£25.15
180 - HOLDER FEI-39000000522.A11 39000000522	-
190 - SCREW FEI-39000000048.A13 39000000048	-
200 - HANDLE FEI-39000000097.A21 39000000097	-
210 - HOUSING FEI-39000004657.A6 39000004657	£377.68	£453.22
212 - PLATE FEI-39000001151.A7 39000001151	-
213 - SCREW FEI-39000000083.A5 39000000083	-
215 - CLUTCH PART LINKS FEI-39000004699.A4 39000004699	-
216 - CLUTCH PART RECHTS FEI-39000004698.A6 39000004698	-
220 - NUT FEI-39000000528.A21 39000000528	£2.55	£3.06
240 - DISC FEI-39000000525.A9 39000000525	-
250 - CIRCLIP FEI-39000000198.A9 39000000198	-
260 - NUT FEI-39000000061.A14 39000000061	£2.94	£3.53
270 - HANDLE FEI-39000000498.A2 39000000498	£44.80	£53.76
280 - SCREW FEI-39000000527.A9 39000000527	£2.66	£3.19
290 - GRAPHITE COATING 80X430 MM FEI-39000005043.A6 39000005043	£41.92	£50.30
300 - HANDLE FEI-39000005826.A34 39000005826	£8.38	£10.05
310 - SCREW FEI-39000000529.A27 39000000529	£2.39	£2.87
320 - NUT FEI-39000000047.A79 39000000047	-
330 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A11 39000000089	-
340 - SCREW FEI-39000000111.A15 39000000111	-
350 - FEATHER KEY FEI-39000006310.A8 39000006310	-
400 - DISC FEI-39000000199.A43 39000000199	-
410 - NUT FEI-39000000062.A30 39000000062	-
420 - HANDLE M8X20 FEI-39000000474.A26 39000000474	£41.06	£49.27
430 - MACHINE BASE GX/GIS FEI-99001010001.A9 99001010001	£248.93	£298.72
440 - COUNTERSUNK SCREW FEI-39000000537.A11 39000000537	-
450 - SPRING FEI-39000000080.A3 39000000080	£9.31	£11.17
460 - TENSIONING ARM FEI-39000004659.A5 39000004659	£34.15	£40.98
470 - SCREW FEI-39000000241.A39 39000000241	£8.71	£10.45
475 - SCREW FEI-39000000434.A24 39000000434	-
480 - BUSH FEI-39000000539.A5 39000000539	-
490 - NUT FEI-39000000045.A56 39000000045	-
500 - SEAL FEI-39000000540.A25 39000000540	-
510 - SHEET METAL SCREW FEI-39000000541.A23 39000000541	-
520 - BOLT M8X30 FEI-39000000082.A30 39000000082	-
530 - BOLT M8X50 FEI-39000000542.A6 39000000542	-
540 - ADAPTER SCHALTER FEI-39000004756.A6 39000004756	-
550 - SCREW FEI-39000001162.A11 39000001162	-
560 - BOLT M8X16 FEI-39000000054.A5 39000000054	-
570 - NUT FEI-39000000044.A19 39000000044	-
610 - BOLT M8X45 FEI-39000000153.A53 39000000153	£3.15	£3.78
620 - SCREW FEI-39000000146.A5 39000000146	-
630 - SCREW FEI-39000001138.A38 39000001138	-
640 - SCREW FEI-39000001139.A10 39000001139	-
650 - FLAP SWITCH FEI-39000000479.A33 39000000479	£45.72	£54.86
654 - SERVICE KIT FEI-39000004494.A18 39000004494	£120.47	£144.56
656 - FLANGE B14 FEI-39000001563.A13 39000001563	£95.74	£114.89
658 - COVER 3 KW FEI-39000001699.A2 39000001699	£79.68	£95.62
660 - BLADE FEI-39000000491.A25 39000000491	£49.64	£59.57
662 - NUT FEI-39000000720.A12 39000000720	-
664 - FILLISTER HEAD SCREW FEI-43041040048.A100 43041040048	£1.60	£1.92
666 - SCREW M6X30 FEI-39000000444.A65 39000000444	-
670 - HOOD MA 90 FEI-39000000211.A25 39000000211	-
680 - MOTOR 3 0KW/3000 RPM FEI-39000001092.A4 39000001092	£590.78	£708.94
690 - SWITCH FEI-39000000480.A2 39000000480	£197.75	£237.30
700 - SPARK BOX FEI-39000004660.A11 39000004660	£126.92	£152.30
810 - SIGN FEI-39000006100.A47 39000006100	£3.17	£3.80
830 - SIGN FEI-39000006105.A29 39000006105	-

Attribute Name	Value
Brand	Fein
