Fein GRIT GXC / 79012300443 Spare Parts

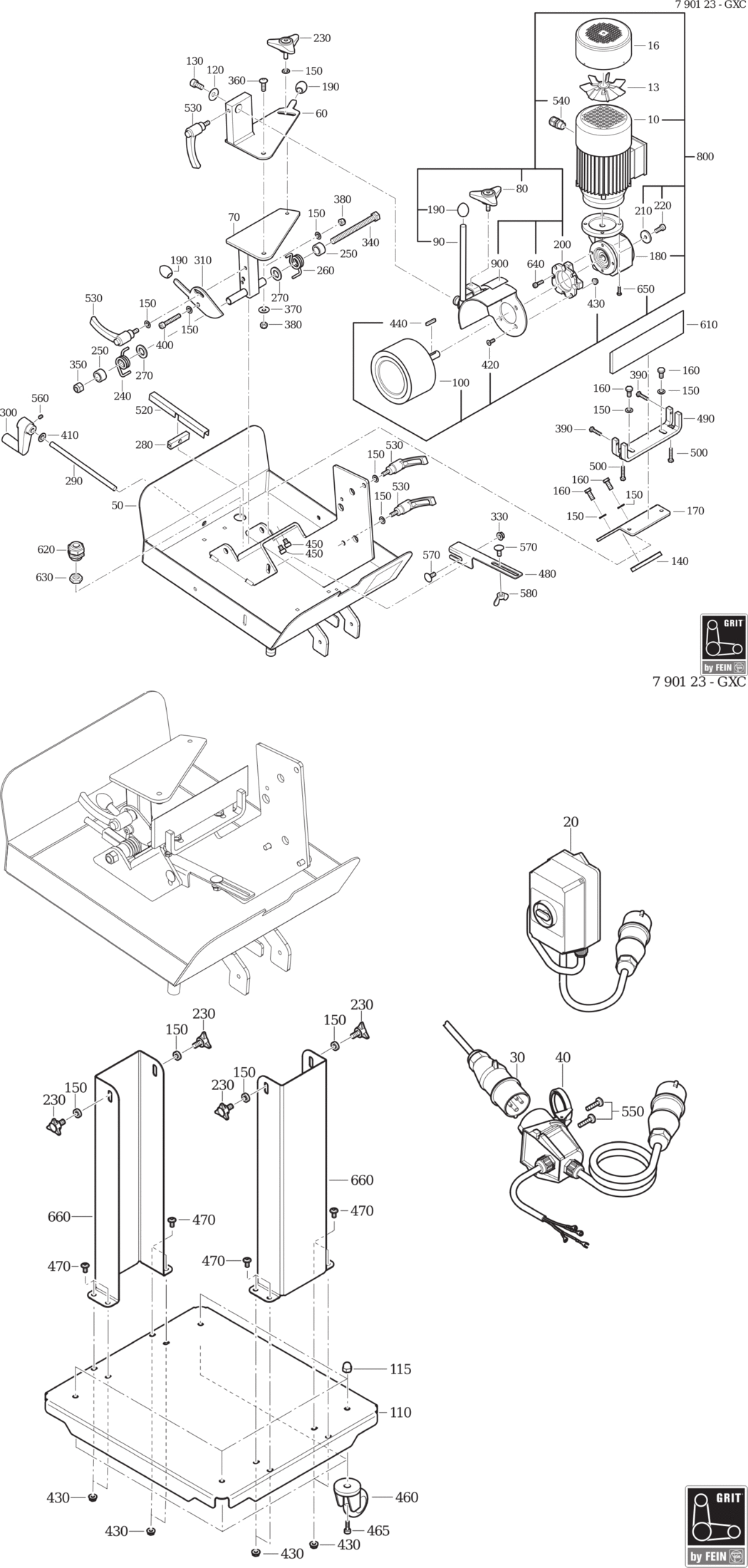

An exploded diagram and spare parts listing for the Fein GRIT GXC / 79012300443

	Ex VAT	Inc VAT
10 - MOTOR 0 18KW/1500 RPM FEI-39000001090.A9 39000001090	£344.61	£413.53
13 - BLADE FEI-39000000622.A7 39000000622	-
16 - HOOD FEI-39000000621.A1 39000000621	-
30 - SOCKET FEI-39000001209.A3 39000001209	-
40 - PLUG FEI-39000000620.A3 39000000620	-
50 - HOUSING FEI-39000004663.A0 39000004663	-
60 - PLATE FEI-39000000602.A4 39000000602	-
70 - PLATE FEI-39000000603.A1 39000000603	-
80 - HANDLE M8X30 FEI-39000000171.A90 39000000171	£20.96	£25.15
90 - HOUSING FEI-39000004769.A0 39000004769	-
100 - BRAKE WHEEL FEI-39000001002.A4 39000001002	£252.58	£303.09
110 - BASE PLATE FEI-39000004668.A0 39000004668	-
115 - NUT FEI-39000000044.A28 39000000044	-
120 - CIRCLIP FEI-39000000071.A7 39000000071	-
130 - SCREW FEI-39000000432.A13 39000000432	-
140 - FITTING FEI-39000000167.A17 39000000167	-
150 - DISC FEI-39000000090.A59 39000000090	£1.60	£1.92
160 - SCREW FEI-39000000623.A1 39000000623	-
170 - ADJUSTMENT UNIT FEI-39000000601.A1 39000000601	-
180 - GEARBOX 1/20 FEI-39000000477.A0 39000000477	-
190 - HANDLE FEI-39000000097.A3 39000000097	-
200 - FLANGE FEI-39000000606.A5 39000000606	£71.92	£86.31
210 - DISC FEI-39000004268.A19 39000004268	-
220 - SCREW FEI-39000001612.A7 39000001612	-
230 - HANDLE FEI-39000003743.A16 39000003743	-
240 - SPRING FEI-39000000608.A1 39000000608	£31.52	£37.82
250 - PIPE FEI-39000000609.A4 39000000609	-
260 - SPRING FEI-39000000610.A1 39000000610	£32.00	£38.40
270 - DISC FEI-39000000242.A0 39000000242	-
280 - ADJUSTMENT UNIT FEI-39000000611.A4 39000000611	-
290 - THREAD SPINDLE FEI-39000000502.A15 39000000502	£38.19	£45.83
300 - CRANK FEI-39000000475.A15 39000000475	£83.01	£99.61
310 - STOP FEI-39000000613.A1 39000000613	-
330 - NUT FEI-39000000528.A32 39000000528	£2.55	£3.06
340 - SCREW FEI-39000000628.A1 39000000628	-
350 - NUT FEI-39000000063.A14 39000000063	-
360 - SCREW FEI-39000000629.A4 39000000629	-
370 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A38 39000000089	-
380 - NUT FEI-39000000061.A33 39000000061	£2.94	£3.53
390 - SCREW FEI-39000000630.A18 39000000630	-
400 - SCREW FEI-39000000631.A4 39000000631	-
410 - DISC FEI-39000000199.A65 39000000199	-
420 - BOLT FEI-39000001510.A1 39000001510	-
430 - NUT FEI-39000005955.A14 39000005955	-
440 - FEATHER KEY FEI-39000000614.A4 39000000614	-
450 - SCREW FEI-39000000164.A11 39000000164	-
460 - WHEEL FEI-39000006353.A11 39000006353	-
465 - FLAT HEADED SCREW FEI-39000000040.A3 39000000040	-
470 - SCREW FEI-39000000193.A41 39000000193	-
480 - FITTING FEI-39000000615.A1 39000000615	-
490 - HOLDER FEI-39000000616.A4 39000000616	-
500 - SCREW FEI-39000000633.A1 39000000633	-
520 - COVER FEI-39000000617.A1 39000000617	-
530 - HANDLE M8X20 FEI-39000000474.A11 39000000474	£41.06	£49.27
540 - SCREW CONNECTION M16 FEI-39000000619.A1 39000000619	-
550 - SCREW FEI-39000000636.A7 39000000636	-
560 - SET SCREW FEI-39000000427.A35 39000000427	£1.60	£1.92
570 - BOLT M8X45 FEI-39000000153.A59 39000000153	£3.15	£3.78
580 - NUT FEI-39000000637.A1 39000000637	-
610 - GUIDE RAIL BRASS FEI-39000000496.A7 39000000496	£77.29	£92.75
610 - NYLON GLIDE SUPPORT FEI-39000000497.A0 39000000497	£86.21	£103.45
620 - SCREW CONNECTION M25 FEI-39000001197.A5 39000001197	-
630 - NUT FEI-39000001200.A5 39000001200	-
640 - SCREW FEI-39000000449.A21 39000000449	-
650 - SCREW FEI-39000006197.A3 39000006197	-
660 - BASE FRAME FEI-39000004664.A3 39000004664	-
800 - MOTOR SET FEI-39000004433.A2 39000004433	-
900 - SIGN FEI-39000006100.A56 39000006100	£3.17	£3.80

Attribute Name	Value
Brand	Fein
