Fein GRIT GI 100 EF / 79022300232 Spare Parts

Home Details Reviews Delivery

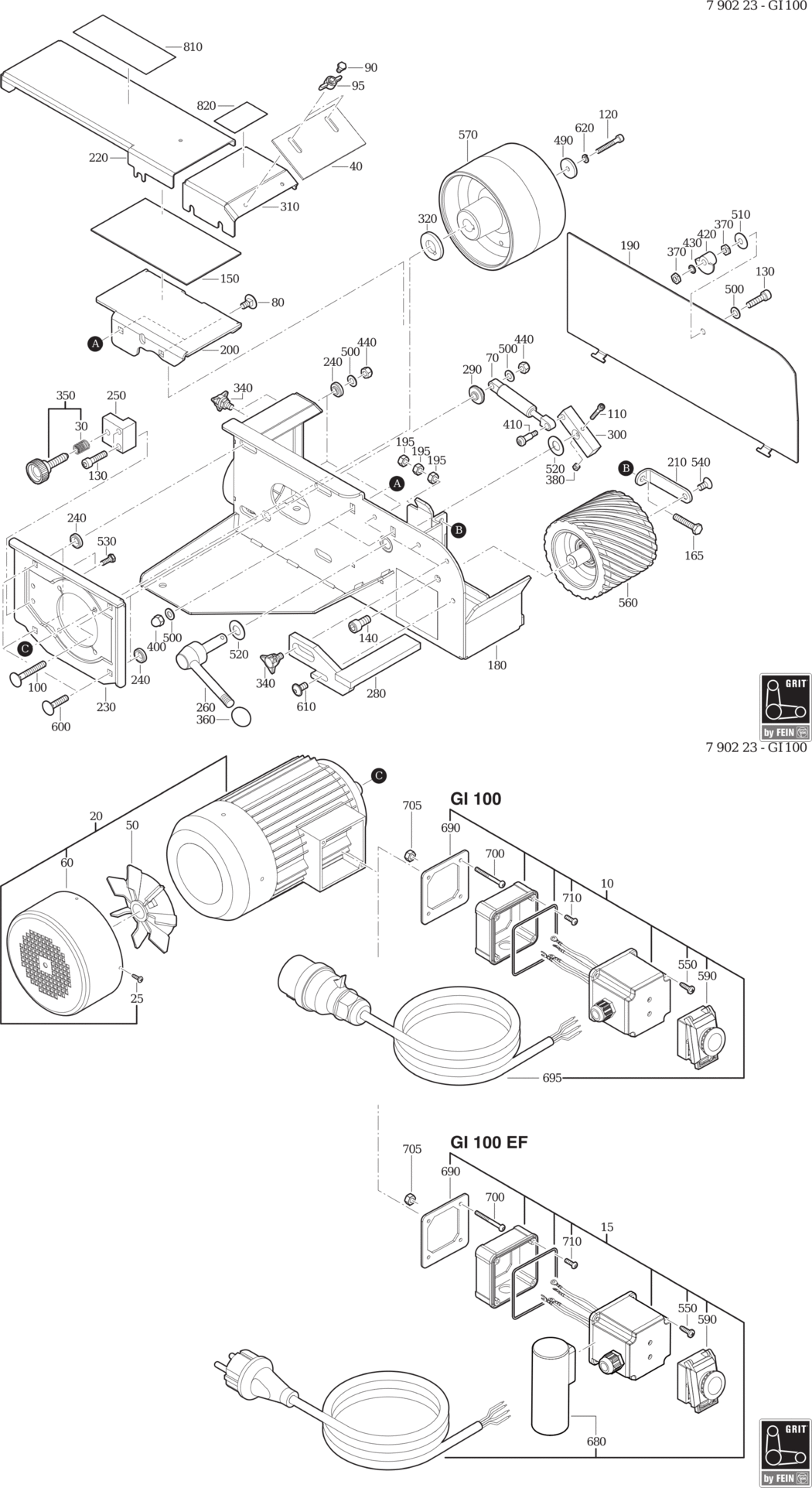

An exploded diagram and spare parts listing for the Fein GRIT GI 100 EF / 79022300232

	Ex VAT	Inc VAT
10 - SWITCH 230V50-60HZ FEI-39000000117.A0 39000000117	-
15 - SWITCH 230V50-60HZ FEI-39000000118.A0 39000000118	-
20 - MOTOR 1 1KW 3000 RPM FEI-39000000114.A0 39000000114	-
25 - FILLISTER HEAD SCREW FEI-43041040048.A112 43041040048	£1.60	£1.92
30 - SPRING FEI-39000000080.A6 39000000080	£9.31	£11.17
40 - EYE GUARD FEI-39000005130.A5 39000005130	-
50 - BLADE FEI-39000000121.A3 39000000121	-
60 - HOOD FEI-39000000122.A5 39000000122	-
70 - GAS COMPRESSION SPRING FEI-39000000055.A6 39000000055	£98.08	£117.69
80 - BOLT M8X16 FEI-39000000054.A7 39000000054	-
90 - SCREW FEI-39000000529.A15 39000000529	£2.39	£2.87
95 - HANDLE FEI-39000005826.A22 39000005826	£8.38	£10.05
100 - BOLT M8X35 FEI-39000000052.A3 39000000052	-
110 - SCREW FEI-39000000051.A2 39000000051	-
120 - SCREW FEI-39000000050.A1 39000000050	-
130 - SCREW FEI-39000000111.A2 39000000111	-
140 - SCREW FEI-39000000099.A55 39000000099	-
150 - GRAPHITE COATING 105X185 MM FEI-39000005045.A4 39000005045	-
165 - SCREW FEI-39000001161.A3 39000001161	-
180 - HOUSING FEI-39000004889.A0 39000004889	-
190 - COVER FEI-39000004890.A4 39000004890	-
200 - SANDING TABLE FEI-39000000018.A3 39000000018	-
210 - BRACKET FEI-39000004887.A0 39000004887	-
220 - COVER FEI-39000004886.A4 39000004886	-
230 - FLANGE FEI-39000000021.A3 39000000021	-
240 - BUSH FEI-39000000024.A3 39000000024	-
250 - ADJUSTMENT UNIT FEI-39000000023.A3 39000000023	-
260 - LEVER FEI-39000001208.A3 39000001208	-
280 - GRINDING ARM FEI-39000004885.A0 39000004885	-
290 - BUSH FEI-39000000032.A4 39000000032	-
300 - TENSIONING ARM FEI-39000000033.A2 39000000033	-
310 - EYE GUARD FEI-39000004888.A4 39000004888	-
320 - RING FEI-39000000037.A3 39000000037	-
340 - HANDLE FEI-39000003743.A7 39000003743	-
350 - HANDLE FEI-39000000086.A3 39000000086	-
360 - HANDLE FEI-39000000097.A9 39000000097	-
370 - NUT FEI-39000000047.A81 39000000047	-
380 - NUT FEI-39000000046.A3 39000000046	£2.52	£3.02
400 - NUT FEI-39000000044.A3 39000000044	-
410 - BOLT M6X11 FEI-39000000043.A3 39000000043	-
420 - LOCKING BAR FEI-39000000087.A3 39000000087	-
430 - DISC FEI-39000006362.A14 39000006362	-
490 - DISC FEI-39000004268.A5 39000004268	-
510 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A28 39000000089	-
530 - SCREW FEI-39000000041.A9 39000000041	-
540 - FLAT HEADED SCREW FEI-39000000040.A12 39000000040	-
550 - SHEET METAL SCREW FEI-39000000541.A17 39000000541	-
560 - CONTACT WHEEL 120X100 MM FEI-39000000311.A5 39000000311	£366.15	£439.38
570 - DRIVE WHEEL FEI-39000000292.A1 39000000292	£251.08	£301.29
590 - FLAP SWITCH FEI-39000000479.A42 39000000479	£45.72	£54.86
600 - BOLT M8X35 FEI-39000000145.A33 39000000145	-
610 - SCREW FEI-39000000048.A9 39000000048	-
620 - SPRING WASHER D6 FEI-39000001064.A6 39000001064	-
680 - MOTOR CAPASITOR FOR GI100EF FEI-39000005293.A1 39000005293	-
690 - SEAL FEI-39000000540.A35 39000000540	-
700 - SCREW FEI-39000001139.A5 39000001139	-
705 - NUT FEI-39000000720.A18 39000000720	-
710 - SCREW FEI-39000001138.A43 39000001138	-
810 - SIGN FEI-39000006110.A2 39000006110	-
820 - SIGN FEI-39000006100.A53 39000006100	£3.17	£3.80
