Fein GIS 150 / 79023000443 Spare Parts

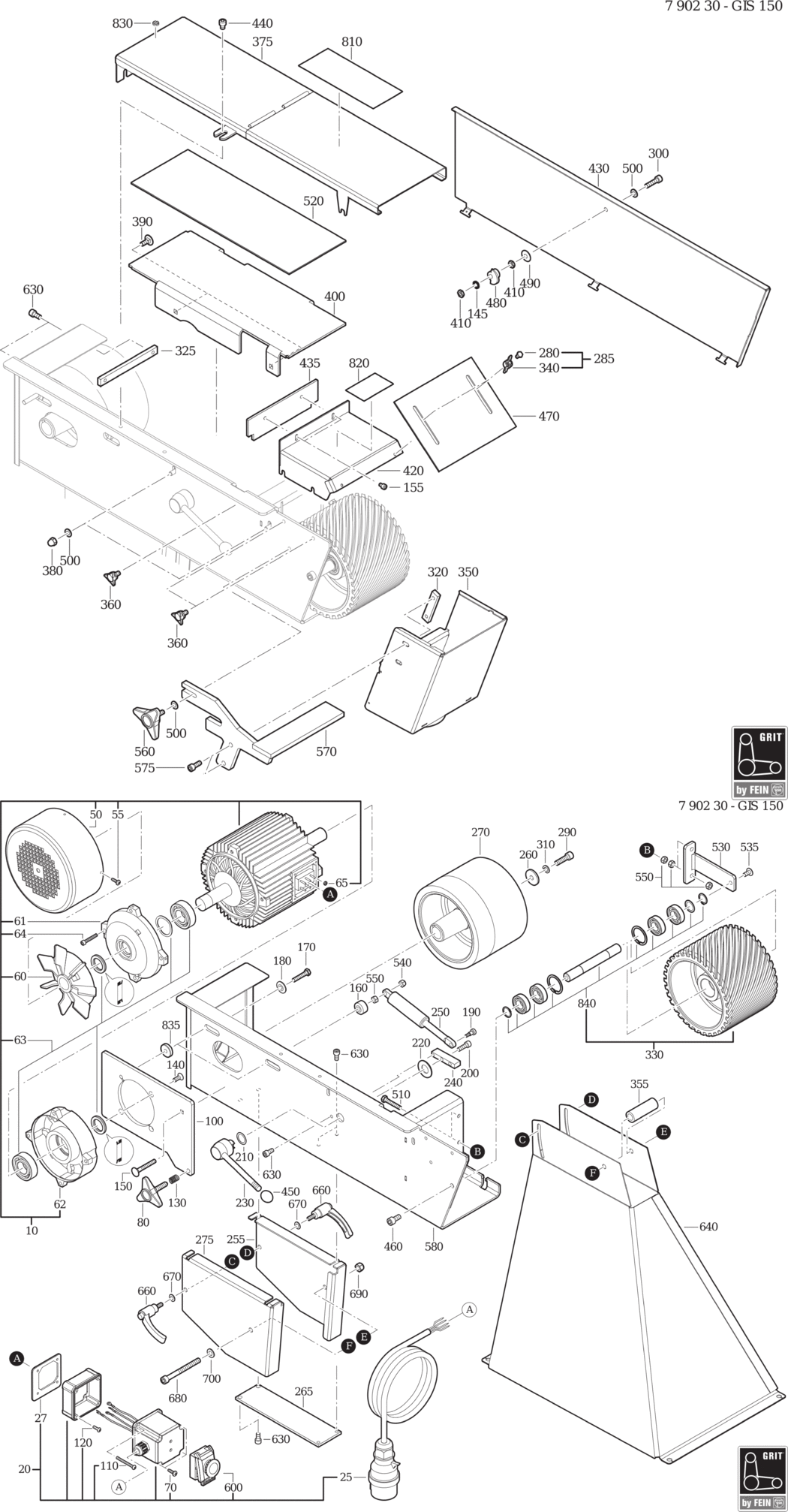

An exploded diagram and spare parts listing for the Fein GIS 150 / 79023000443

	Ex VAT	Inc VAT
10 - MOTOR 4 0KW 3000 RPM FEI-39000000156.A20 39000000156	£847.11	£1016.53
20 - SWITCH 3X400V 50 HZ/3X440V 60HZ FEI-39000001194.A3 39000001194	-
25 - CABLE WITH PLUG FEI-39000001701.A7 39000001701	-
50 - HOOD FEI-39000000219.A14 39000000219	£80.41	£96.49
55 - FILLISTER HEAD SCREW FEI-43041040048.A27 43041040048	£1.60	£1.92
60 - BLADE FEI-39000000218.A20 39000000218	£56.15	£67.38
61 - COVER 4 KW FEI-39000005290.A19 39000005290	£85.86	£103.03
62 - FLANGE B14 FEI-39000001644.A13 39000001644	£116.83	£140.20
63 - SERVICE KIT FEI-39000001656.A6 39000001656	-
64 - SCREW M6X30 FEI-39000000444.A33 39000000444	-
65 - NUT FEI-39000000720.A49 39000000720	-
70 - SCREW 4 2X13 FEI-39000006028.A8 39000006028	-
80 - HANDLE FEI-39000000498.A23 39000000498	£44.80	£53.76
100 - FLANGE FEI-39000001148.A2 39000001148	-
110 - SCREW FEI-39000001139.A40 39000001139	-
120 - SCREW FEI-39000001138.A8 39000001138	-
130 - SPRING FEI-39000000080.A20 39000000080	£9.31	£11.17
140 - COUNTERSUNK SCREW FEI-39000000537.A3 39000000537	-
145 - DISC FEI-39000006362.A48 39000006362	-
150 - BOLT M8X60 FEI-39000000143.A29 39000000143	-
155 - SCREW M6X8 FEI-39000000149.A5 39000000149	-
160 - DISC FEI-39000003331.A4 39000003331	-
170 - SCREW FEI-39000001161.A15 39000001161	-
180 - DISC FEI-39000002812.A18 39000002812	-
200 - SCREW FEI-39000000434.A11 39000000434	-
210 - SHIM FEI-39000000105.A4 39000000105	-
220 - CUP SPRING 20 4X2 FEI-39000000160.A43 39000000160	-
230 - LEVER FEI-39000001158.A8 39000001158	-
240 - TENSIONING ARM FEI-39000004659.A13 39000004659	£34.15	£40.98
250 - SPRING FEI-39000000161.A6 39000000161	£123.79	£148.55
255 - PLATE RECHTS FEI-39000004694.A7 39000004694	-
260 - DISC FEI-39000000168.A36 39000000168	£23.47	£28.16
265 - PLATE FEI-39000001151.A10 39000001151	-
270 - DRIVE WHEEL FEI-39000001102.A6 39000001102	£584.68	£701.61
275 - PLATE LINKS FEI-39000004695.A0 39000004695	-
280 - SCREW FEI-39000000529.A64 39000000529	£2.39	£2.87
285 - HANDLE M6 VE 2 FEI-39000000084.A1 39000000084	-
290 - SCREW FEI-39000000827.A16 39000000827	£3.83	£4.60
300 - SCREW FEI-39000000111.A53 39000000111	-
310 - CIRCLIP FEI-39000000724.A25 39000000724	£2.65	£3.18
320 - FITTING FEI-39000000167.A1 39000000167	-
325 - FITTING FEI-39000000185.A2 39000000185	-
330 - CONTACT WHEEL FEI-39000000288.A6 39000000288	£470.48	£564.57
340 - HANDLE FEI-39000005826.A58 39000005826	£8.38	£10.05
350 - SPARK BOX FEI-39000004709.A4 39000004709	-
355 - SPACER FEI-39000004671.A6 39000004671	-
360 - HANDLE FEI-39000003743.A0 39000003743	-
375 - COVER FEI-39000000187.A0 39000000187	-
380 - NUT FEI-39000000044.A62 39000000044	-
390 - BOLT M8X45 FEI-39000000153.A8 39000000153	£3.15	£3.78
400 - SANDING TABLE GIS150 FEI-39000001702.A0 39000001702	-
410 - NUT FEI-39000000047.A10 39000000047	-
420 - COVER FEI-39000000186.A7 39000000186	£114.65	£137.58
430 - COVER FEI-39000000130.A16 39000000130	£184.92	£221.91
435 - SUPPORT FEI-39000000181.A1 39000000181	£74.89	£89.87
440 - SCREW FEI-39000000164.A18 39000000164	-
450 - HANDLE FEI-39000000097.A32 39000000097	-
460 - SCREW FEI-39000000099.A3 39000000099	-
470 - EYE GUARD FEI-39000005624.A17 39000005624	£61.46	£73.75
480 - LOCKING BAR FEI-39000000087.A60 39000000087	-
490 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A77 39000000089	-
510 - SCREW FEI-39000000154.A35 39000000154	-
520 - GRAPHITE COATING 155X430 MM FEI-39000005048.A3 39000005048	£70.96	£85.15
530 - HOLDER FEI-39000004723.A25 39000004723	-
535 - SCREW FEI-39000000048.A64 39000000048	-
540 - NUT FEI-39000000061.A79 39000000061	£2.94	£3.53
550 - NUT FEI-39000000045.A10 39000000045	-
560 - HANDLE M8X30 FEI-39000000171.A13 39000000171	£20.96	£25.15
570 - WORKPIECE SUPPORT FEI-39000000178.A6 39000000178	-
575 - SCREW FEI-39000000083.A64 39000000083	-
580 - HOUSING FEI-39000004730.A0 39000004730	-
600 - FLAP SWITCH FEI-39000000479.A16 39000000479	£45.72	£54.86
630 - SCREW FEI-39000000165.A11 39000000165	-
640 - MACHINE BASE GISB FEI-39000004784.A6 39000004784	-
660 - HANDLE M8X20 FEI-39000001532.A1 39000001532	£40.93	£49.12
670 - DISC FEI-39000000090.A10 39000000090	£1.60	£1.92
680 - SCREW FEI-39000001162.A4 39000001162	-
690 - NUT FEI-39000000062.A2 39000000062	-
700 - DISC FEI-39000000199.A31 39000000199	-
810 - SIGN FEI-39000006142.A1 39000006142	-
820 - SIGN FEI-39000006100.A10 39000006100	£3.17	£3.80
830 - STOP FEI-39000005540.A16 39000005540	-
835 - BUSH FEI-39000003319.A1 39000003319	£36.88	£44.25
840 - SHAFT FEI-39000001521.A5 39000001521	-
1560 - SEAL FEI-39000000540.A7 39000000540	-

Attribute Name	Value
Brand	Fein
