Fein GRIT GIR / 99001007100 Spare Parts

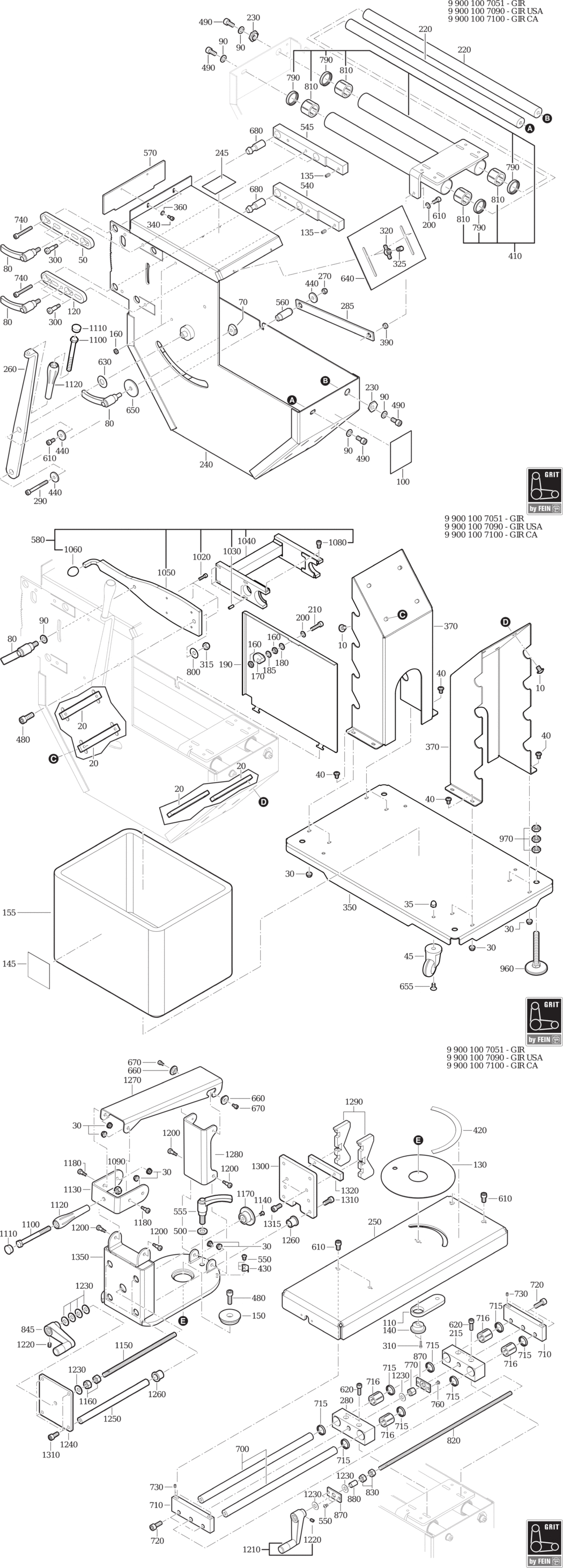

An exploded diagram and spare parts listing for the Fein GRIT GIR / 99001007100

	Ex VAT	Inc VAT
10 - SCREW FEI-39000000048.A29 39000000048	-
20 - SPACER FEI-39000000291.A0 39000000291	-
30 - NUT FEI-39000005955.A4 39000005955	-
35 - NUT FEI-39000000044.A42 39000000044	-
40 - SCREW FEI-39000000193.A10 39000000193	-
45 - WHEEL FEI-39000006353.A2 39000006353	-
50 - CLAMP FEI-39000006420.A1 39000006420	-
70 - STOP FEI-39000000285.A1 39000000285	-
80 - HANDLE M10X20 FEI-39000000428.A6 39000000428	-
90 - DISC FEI-39000000199.A18 39000000199	-
100 - SIGN FEI-39000006440.A7 39000006440	-
110 - THREAD INSERT FEI-39000006414.A0 39000006414	-
120 - CLAMP FEI-39000006407.A1 39000006407	-
130 - VICE FEI-39000006405.A1 39000006405	-
135 - SET SCREW FEI-39000006467.A2 39000006467	-
140 - HOLDER FEI-39000006413.A2 39000006413	£58.16	£69.79
145 - SIGN FEI-39000006106.A0 39000006106	-
150 - DISC FEI-39000006403.A1 39000006403	-
155 - CONTAINER FEI-39000000385.A0 39000000385	-
160 - NUT FEI-39000000047.A57 39000000047	-
170 - LOCKING BAR FEI-39000000087.A40 39000000087	-
180 - DISC FEI-39000000148.A27 39000000148	-
185 - DISC FEI-39000006362.A34 39000006362	-
190 - COVER FEI-39000006416.A0 39000006416	-
200 - DISC FEI-39000000090.A54 39000000090	£1.60	£1.92
210 - SCREW FEI-39000000111.A52 39000000111	-
215 - SLIDING BLOCK FEI-39000000297.A3 39000000297	-
220 - SHAFT FEI-39000000244.A1 39000000244	-
230 - PLATE FEI-39000000281.A1 39000000281	-
240 - HOUSING FEI-39000006400.A0 39000006400	-
245 - SIGN FEI-39000006100.A22 39000006100	£3.17	£3.80
250 - HOUSING FEI-39000006412.A0 39000006412	-
260 - HANDLE FEI-39000006406.A0 39000006406	-
270 - NUT FEI-39000000061.A60 39000000061	£2.94	£3.53
280 - SLIDING BLOCK FEI-39000000296.A1 39000000296	-
285 - TENSIONING ARM FEI-39000006423.A1 39000006423	-
290 - SCREW FEI-39000001086.A11 39000001086	£3.29	£3.95
300 - SCREW FEI-39000006495.A1 39000006495	-
310 - SCREW FEI-39000005678.A5 39000005678	-
315 - NUT FEI-39000000062.A13 39000000062	-
320 - HANDLE FEI-39000005826.A65 39000005826	£8.38	£10.05
325 - SCREW FEI-39000000529.A38 39000000529	£2.39	£2.87
340 - SCREW FEI-39000000191.A26 39000000191	-
350 - PLATE FEI-39000006417.A1 39000006417	-
360 - DISC FEI-39000000088.A5 39000000088	-
370 - BASE FRAME FEI-39000006425.A1 39000006425	-
390 - BUSH FEI-39000000295.A1 39000000295	-
410 - CARRIAGE FEI-39000000363.A1 39000000363	-
420 - SCALE FEI-39000000254.A2 39000000254	-
430 - SCALE FEI-39000006424.A1 39000006424	-
440 - DISC FEI-39000004269.A7 39000004269	-
480 - SCREW FEI-39000000425.A4 39000000425	-
490 - SCREW FEI-39000000099.A34 39000000099	-
500 - DISC D12 FEI-39000000163.A20 39000000163	-
540 - SPACER FEI-39000006421.A0 39000006421	-
545 - SPACER FEI-39000006411.A1 39000006411	-
550 - SCREW FEI-39000001190.A4 39000001190	-
555 - HANDLE M12X30 FEI-39000001085.A1 39000001085	-
560 - SPACER SLEEVE FEI-39000000279.A0 39000000279	-
570 - PLATE FEI-39000003213.A4 39000003213	-
580 - HOLDER FEI-39000006427.A2 39000006427	-
610 - SCREW FEI-39000000165.A24 39000000165	-
620 - SCREW FEI-39000001533.A1 39000001533	-
630 - CUP SPRING D34/16 3X1 5 MM FEI-39000000070.A1 39000000070	-
640 - EYE GUARD FEI-39000005624.A4 39000005624	£61.46	£73.75
650 - DISC FEI-39000003251.A0 39000003251	-
655 - FLAT HEADED SCREW FEI-39000000040.A27 39000000040	-
660 - BUSH FEI-39000006415.A2 39000006415	-
670 - SCREW FEI-39000000191.A27 39000000191	-
680 - BUSH FEI-39000006410.A1 39000006410	-
700 - SHAFT D20 H6X421 MM FEI-39000000243.A1 39000000243	-
710 - SLIDING BLOCK FEI-39000006422.A2 39000006422	-
715 - RING VE 4 FEI-39000000462.A5 39000000462	-
716 - BUSH VE 4 FEI-39000000461.A0 39000000461	-
720 - SCREW FEI-39000000460.A9 39000000460	-
730 - SET SCREW FEI-39000000427.A0 39000000427	£1.60	£1.92
740 - SCREW FEI-39000001446.A15 39000001446	-
760 - SCREW FEI-39000000464.A8 39000000464	-
770 - NUT FEI-39000000465.A0 39000000465	-
790 - RING FEI-39000000249.A0 39000000249	-
800 - CIRCLIP FEI-39000000071.A3 39000000071	-
810 - BUSH FEI-39000000248.A4 39000000248	-
820 - THREAD SPINDLE TR10X3X500 FEI-39000000458.A2 39000000458	£70.76	£84.91
830 - NUT FEI-39000000459.A0 39000000459	£23.24	£27.89
845 - CRANK FEI-39000006372.A4 39000006372	£40.92	£49.11
870 - PLATE FEI-39000000463.A0 39000000463	-
880 - BUSH FEI-39000001191.A0 39000001191	-
960 - ADJUSTABLE FOOT FEI-39000005415.A5 39000005415	-
970 - NUT FEI-39000000715.A2 39000000715	-
1020 - SCREW FEI-39000000449.A9 39000000449	-
1030 - SCREW FEI-39000000441.A3 39000000441	-
1040 - HOLDER FEI-39000006401.A2 39000006401	-
1050 - HOLDER FEI-39000006404.A1 39000006404	-
1060 - HANDLE FEI-39000000097.A24 39000000097	-
1080 - SCREW FEI-39000000705.A7 39000000705	-
1090 - NUT FEI-39000000195.A3 39000000195	-
1100 - SCREW FEI-39000006323.A5 39000006323	-
1110 - PLUG FEI-41115012001.A15 41115012001	-
1120 - HANDLE FEI-32119114005.A0 32119114005	-
1130 - SHEET METAL GURM FEI-39000004517.A4 39000004517	-
1140 - SCREW FEI-39000006315.A4 39000006315	-
1150 - THREAD SPINDLE GIR FEI-39000006316.A0 39000006316	-
1160 - NUT FEI-39000000459.A1 39000000459	£23.24	£27.89
1170 - SHAFT GIR FEI-39000006318.A4 39000006318	£84.85	£101.82
1180 - SCREW FEI-39000000241.A11 39000000241	£8.71	£10.45
1200 - SCREW FEI-39000000723.A12 39000000723	-
1210 - CRANK FEI-39000000475.A39 39000000475	£83.01	£99.61
1220 - SET SCREW FEI-39000000427.A1 39000000427	£1.60	£1.92
1230 - DISC FEI-39000000435.A39 39000000435	£3.11	£3.73
1250 - SHAFT FEI-39000004518.A0 39000004518	-
1260 - BUSH FEI-39000000448.A1 39000000448	-
1270 - BRACKET FEI-39000006419.A1 39000006419	-
1280 - VICE FEI-39000006402.A0 39000006402	-
1290 - CLAMPING JAW FEI-39000001792.A1 39000001792	-
1310 - SCREW FEI-39000000083.A26 39000000083	-
1315 - SCREW FEI-39000000434.A1 39000000434	-
1320 - CLAMPING UNIT FEI-39000000275.A4 39000000275	-
1350 - VICE FEI-39000004519.A4 39000004519	-

Attribute Name	Value
Brand	Fein
