Fein GRIT GHB 15-50 Inox / 79030200232 Spare Parts

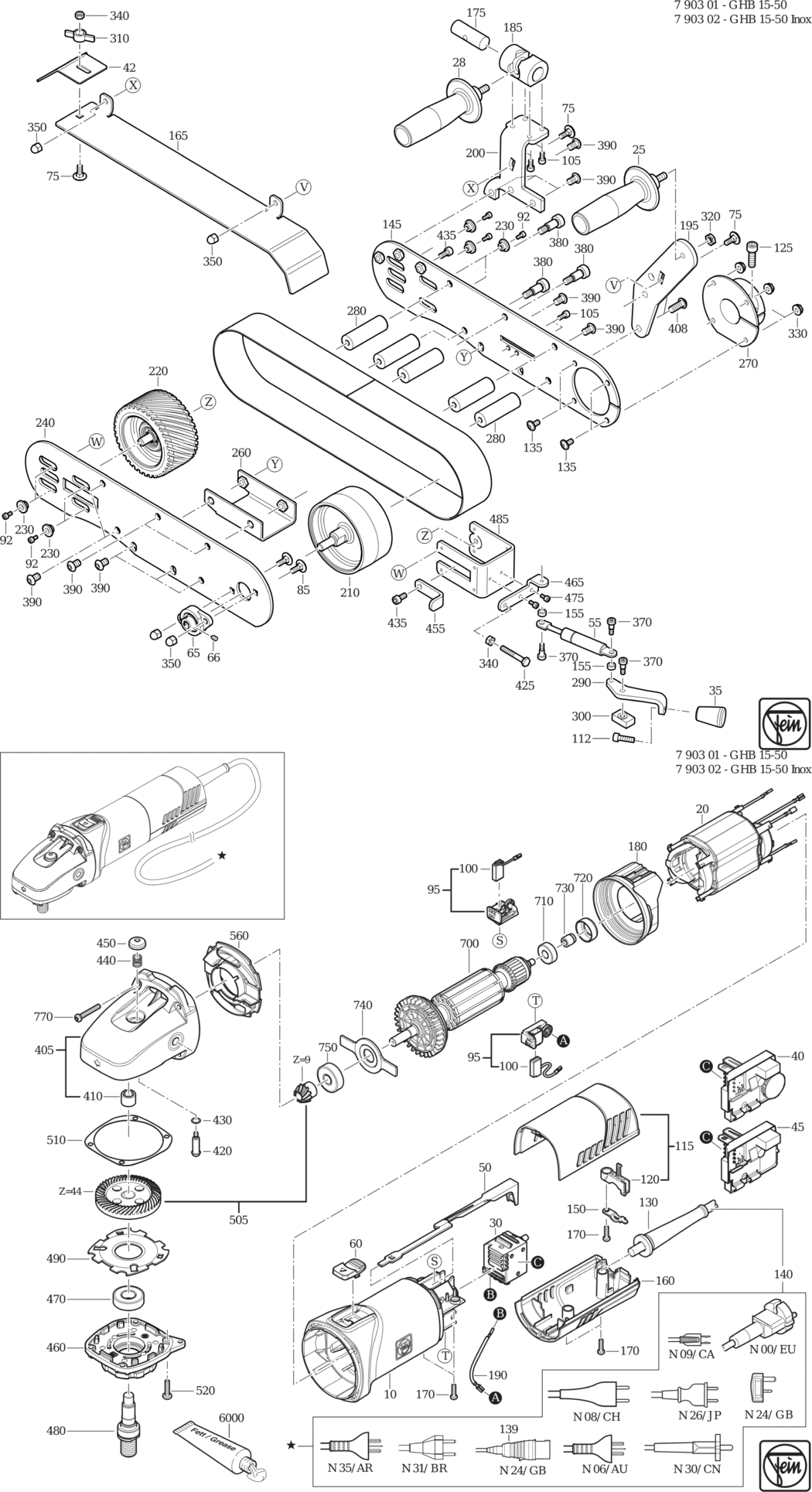

An exploded diagram and spare parts listing for the Fein GRIT GHB 15-50 Inox / 79030200232

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A67 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279004230.A20 51279004230	£57.22	£68.67
25 - ANTI-VIBRATION HANDLE FEI-32119124010.A78 32119124010	£17.68	£21.22
28 - HANDLE FEI-39000008117.A2 39000008117	£34.61	£41.53
30 - SWITCH FEI-30701299000.A81 30701299000	£28.81	£34.57
35 - HANDLE FEI-39000004750.A3 39000004750	-
40 - SPEED SETTING SWITCH 50/60H 220-230V FEI-30762533990.A2 30762533990	£74.23	£89.08
42 - EYE GUARD FEI-39000001067.A3 39000001067	-
50 - CONTROL ROD FEI-32816080000.A38 32816080000	£2.55	£3.06
55 - GAS COMPRESSION SPRING FEI-39000004758.A5 39000004758	-
60 - SLIDE SWITCH FEI-32805306000.A107 32805306000	£4.59	£5.51
65 - FLANGE FEI-39000001395.A5 39000001395	-
66 - SET SCREW M4X4 FEI-43009004049.A6 43009004049	-
75 - SCREW FEI-39000005654.A7 39000005654	-
85 - SCREW FEI-39000006396.A4 39000006396	-
92 - SCREW FEI-39000006388.A3 39000006388	-
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A60 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A31 30711158000	£8.15	£9.78
105 - SCREW FEI-39000006389.A4 39000006389	-
112 - SCREW FEI-39000000449.A6 39000000449	-
115 - COVER OT FEI-32427153010.A4 32427153010	£16.59	£19.91
120 - CABLE CLAMPING PIECE FEI-32431047000.A65 32431047000	-
125 - SCREW FEI-39000000434.A18 39000000434	-
130 - CABLE GROMMET FEI-31413282000.A51 31413282000	£2.55	£3.06
135 - SCREW FEI-39000006390.A1 39000006390	-
140 - CABLE WITH PLUG FEI-30707544010.A50 30707544010	-
145 - PLATE FEI-39000008064.A4 39000008064	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A129 32431043002	£1.60	£1.92
155 - SPACER SLEEVE FEI-39000008090.A3 39000008090	-
160 - COVER UT FEI-32427151000.A5 32427151000	£7.13	£8.56
165 - COVER FEI-39000008089.A2 39000008089	-
170 - SCREW FEI-43072000000.A63 43072000000	£1.60	£1.92
175 - BOLT FEI-39000008088.A3 39000008088	-
180 - AIR GUIDE RING FEI-31428179000.A140 31428179000	£7.46	£8.95
185 - HOLDER FEI-39000008087.A2 39000008087	-
195 - HOLDER FEI-39000008086.A3 39000008086	-
200 - HOLDER FEI-39000008085.A2 39000008085	-
210 - DRIVE WHEEL FEI-39000001075.A2 39000001075	-
220 - CONTACT WHEEL FEI-39000001071.A3 39000001071	£217.15	£260.58
230 - SPACER SLEEVE FEI-39000008084.A3 39000008084	-
240 - PLATE FEI-39000008083.A2 39000008083	-
260 - SUPPORT FEI-39000008065.A1 39000008065	-
270 - FLANGE FEI-39000008074.A1 39000008074	-
280 - SPACER SLEEVE FEI-39000008080.A3 39000008080	£10.25	£12.30
290 - TENSIONING ARM FEI-39000008079.A2 39000008079	-
300 - BLOCK FEI-39000008077.A3 39000008077	-
310 - HANDLE FEI-39000005826.A47 39000005826	£8.38	£10.05
320 - NUT FEI-39000000047.A8 39000000047	-
330 - NUT FEI-39000005955.A5 39000005955	-
340 - NUT FEI-39000000166.A20 39000000166	£1.60	£1.92
350 - NUT FEI-39000006397.A1 39000006397	-
370 - BOLT FEI-39000006391.A4 39000006391	-
380 - BOLT FEI-39000006392.A1 39000006392	-
390 - SCREW FEI-39000006393.A4 39000006393	-
405 - GEARBOX HOUSING FEI-31206147030.A28 31206147030	-
408 - SCREW FEI-39000006394.A1 39000006394	-
410 - NEEDLE SLEEVE FEI-41705019001.A39 41705019001	£9.49	£11.39
420 - BOLT FEI-30217335005.A65 30217335005	£7.39	£8.87
425 - BOLT FEI-39000006202.A5 39000006202	-
430 - SEALING RING FEI-40612137008.A144 40612137008	£1.60	£1.92
435 - SCREW FEI-39000000705.A5 39000000705	-
440 - SPIRAL SPRING FEI-30901357005.A119 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A142 32805200008	£2.58	£3.09
455 - TENSIONING ARM FEI-39000008068.A4 39000008068	-
460 - BEARING PLATE FEI-32419152000.A21 32419152000	-
465 - PLATE FEI-39000008069.A1 39000008069	-
470 - GROOVED BALL BEARING FEI-41701010054.A208 41701010054	£8.25	£9.90
475 - SCREW FEI-39000006388.A2 39000006388	-
480 - SHAFT FEI-33406325000.A4 33406325000	-
485 - HOLDER FEI-39000008070.A5 39000008070	-
490 - PLATE FEI-32416116000.A15 32416116000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A21 33809247010	-
510 - WASHER FEI-32624123020.A47 32624123020	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A93 43064024043	-
560 - AIR GUIDE RING FEI-31428180000.A0 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279001230.A12 53279001230	£89.30	£107.16
710 - GROOVED BALL BEARING FEI-41701001260.A98 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A133 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A76 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A92 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A180 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A97 43074012000	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A557 32160003014	-
