Fein BSS 2.0 (50/60Hz 220/230V) / 72302224234 Spare Parts

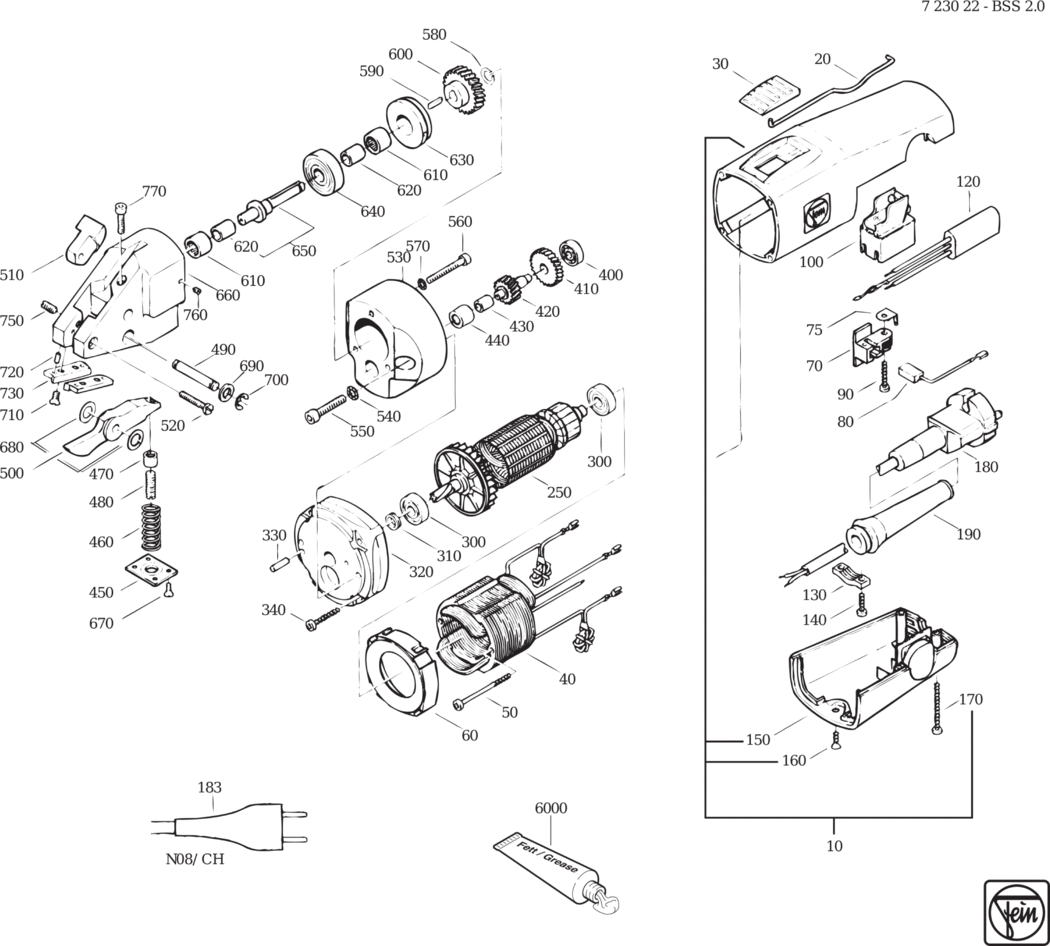

An exploded diagram and spare parts listing for the Fein BSS 2.0 (50/60Hz 220/230V) / 72302224234

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A2 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A37 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A35 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A3 51272004235	-
50 - SCREW FEI-43070014000.A10 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A34 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A79 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A5 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A6 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A39 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A40 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A32 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A136 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A120 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A33 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A1 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A5 43070016007	£1.60	£1.92
181 - CABLE WITH PLUG FEI-30707380017.A6 30707380017	-
190 - CABLE GROMMET FEI-31413164009.A22 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A3 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001172.A54 41701001172	£9.63	£11.56
310 - SEALING RING FEI-32612125000.A5 32612125000	£2.39	£2.87
320 - INTERMEDIATE GEAR BOX FEI-31506350001.A2 31506350001	£76.68	£92.02
330 - PIN FEI-40242006007.A4 40242006007	-
340 - SCREW FEI-43070026006.A3 43070026006	-
400 - GROOVED BALL BEARING FEI-41701202018.A170 41701202018	£6.92	£8.30
410 - GEAR-WHEEL FEI-33657163004.A41 33657163004	£48.54	£58.25
420 - SHAFT TOOTHED FEI-31308115001.A4 31308115001	-
430 - RING FEI-41719029003.A4 41719029003	-
440 - BUSH FEI-41705001004.A1 41705001004	-
450 - PLATE FEI-31308107009.A4 31308107009	-
460 - SPIRAL SPRING FEI-31308108007.A4 31308108007	-
470 - NUT FEI-31308119000.A4 31308119000	£7.02	£8.43
480 - PLUNGER FEI-31308109001.A4 31308109001	£9.14	£10.97
490 - BLADE PIN FEI-31308111002.A4 31308111002	£29.95	£35.94
500 - CUTTING BLADE FEI-31308110003.A4 31308110003	£148.09	£177.71
510 - HAND GUARD FEI-31308106005.A4 31308106005	-
520 - CYLINDER HEAD SCREW FEI-43002041047.A17 43002041047	£1.60	£1.92
530 - ADAPTER FEI-31308101003.A4 31308101003	-
540 - SPRING WASHER FEI-42445002053.A16 42445002053	-
550 - CYLINDER HEAD SCREW FEI-43035018055.A5 43035018055	-
560 - CYLINDER HEAD SCREW FEI-43035072042.A11 43035072042	-
570 - CIRCLIP M4 FEI-42443003043.A321 42443003043	£1.60	£1.92
580 - CIRCLIP FEI-31308116004.A4 31308116004	-
590 - FEATHER KEY FEI-31308102006.A4 31308102006	-
600 - GEAR-WHEEL FEI-31308117008.A4 31308117008	-
610 - NEEDLE SLEEVE FEI-41705007000.A12 41705007000	£5.66	£6.79
620 - RING FEI-41719030005.A4 41719030005	-
630 - COVER FEI-31308103000.A4 31308103000	-
640 - GROOVED BALL BEARING FEI-31308118006.A4 31308118006	-
650 - ECCENTRIC SHAFT FEI-31308104008.A4 31308104008	-
660 - HOUSING FEI-31308105002.A4 31308105002	-
670 - COUNTERSUNK SCREW FEI-43059040033.A3 43059040033	£1.60	£1.92
680 - DISC SET FEI-31308112005.A4 31308112005	-
690 - DISC FEI-42401018069.A16 42401018069	£1.60	£1.92
700 - CIRCLIP FEI-42634010006.A14 42634010006	£1.60	£1.92
710 - COUNTERSUNK SCREW FEI-43075000005.A8 43075000005	-
720 - STRAIGHT PIN FEI-40201022008.A11 40201022008	-
730 - CUTTING BARS FEI-31308113009.A4 31308113009	£157.88	£189.46
750 - SET SCREW M5X12 FEI-43011006054.A4 43011006054	-
760 - SET SCREW M4X4 FEI-43009004049.A10 43009004049	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A3 43035076041	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A39 32160003083	-
9000 - OPERATING INSTRUCTIONS BSS FEI-34101111060.A1 34101111060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A164 34130054061	-
