Fein BSS 1.6 E (50/60Hz 220/230V) / 72303124230 Spare Parts

Fein BSS 1.6 E ⡐/60Hz 220/230V) / 72303124230 Spare Parts

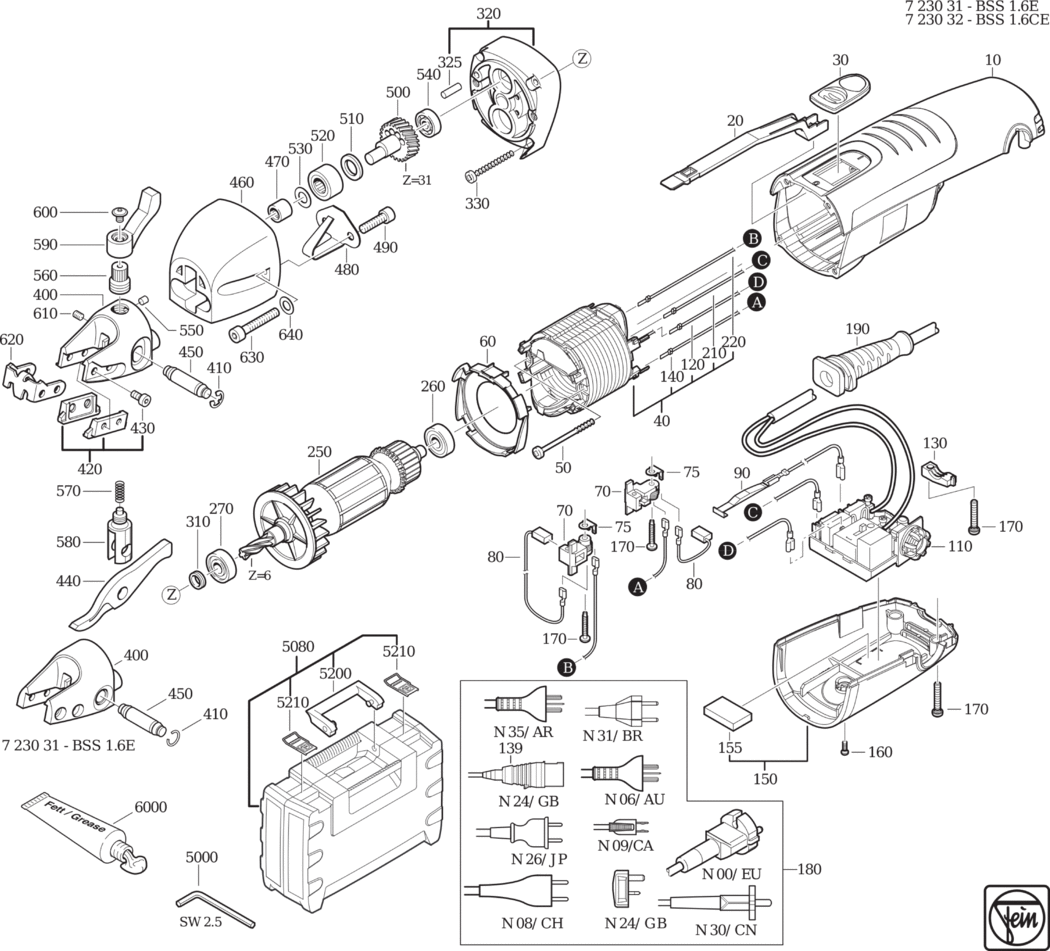

An exploded diagram and spare parts listing for the Fein BSS 1.6 E (50/60Hz 220/230V) / 72303124230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A23 31901172000	-
20 - CONTROL ROD FEI-32816066000.A36 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A30 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A9 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A2 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A12 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A98 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A28 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A4 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A10 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A44 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A37 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A26 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A13 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A44 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A44 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A6 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A72 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707380017.A11 30707380017	-
190 - PROTECTIVE HOSE FEI-31413251000.A17 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A37 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A14 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A1 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A58 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A12 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A24 32612125000	£2.39	£2.87
320 - FLANGE FEI-31506394010.A0 31506394010	-
325 - PIN FEI-40242006007.A37 40242006007	-
330 - SCREW FEI-43074004000.A43 43074004000	£1.60	£1.92
400 - TOOL HEAD FEI-31308155007.A5 31308155007	-
410 - CIRCLIP FEI-42615142008.A0 42615142008	£1.60	£1.92
420 - CUTTING BARS FEI-31308153014.A3 31308153014	£114.63	£137.56
430 - CYLINDER HEAD SCREW FEI-43033089048.A6 43033089048	-
440 - CUTTING BLADE FEI-31308150009.A3 31308150009	£106.55	£127.86
450 - BOLT FEI-31308156000.A5 31308156000	-
460 - HOUSING FEI-31308154003.A6 31308154003	-
470 - NEEDLE SLEEVE FEI-41705006006.A30 41705006006	£7.31	£8.77
480 - LEAF SPRING FEI-31308157004.A6 31308157004	£16.74	£20.09
490 - CYLINDER HEAD SCREW FEI-43035019059.A13 43035019059	-
500 - ECCENTRIC SHAFT FEI-31308158011.A5 31308158011	-
510 - SHIM FEI-32408385001.A9 32408385001	-
520 - ROLLER FEI-41724003002.A5 41724003002	-
530 - SHIM FEI-32408386004.A2 32408386004	-
540 - GROOVED BALL BEARING FEI-41701202018.A120 41701202018	£6.92	£8.30
630 - CYLINDER HEAD SCREW FEI-43035016053.A0 43035016053	-
640 - SPRING WASHER FEI-42445002053.A4 42445002053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A17 62907015008	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A29 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A60 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A32 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A52 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A352 34130054061	-
