Fein BSS 1.6 CE (50/60Hz 220/230V) / 72303200230 Spare Parts

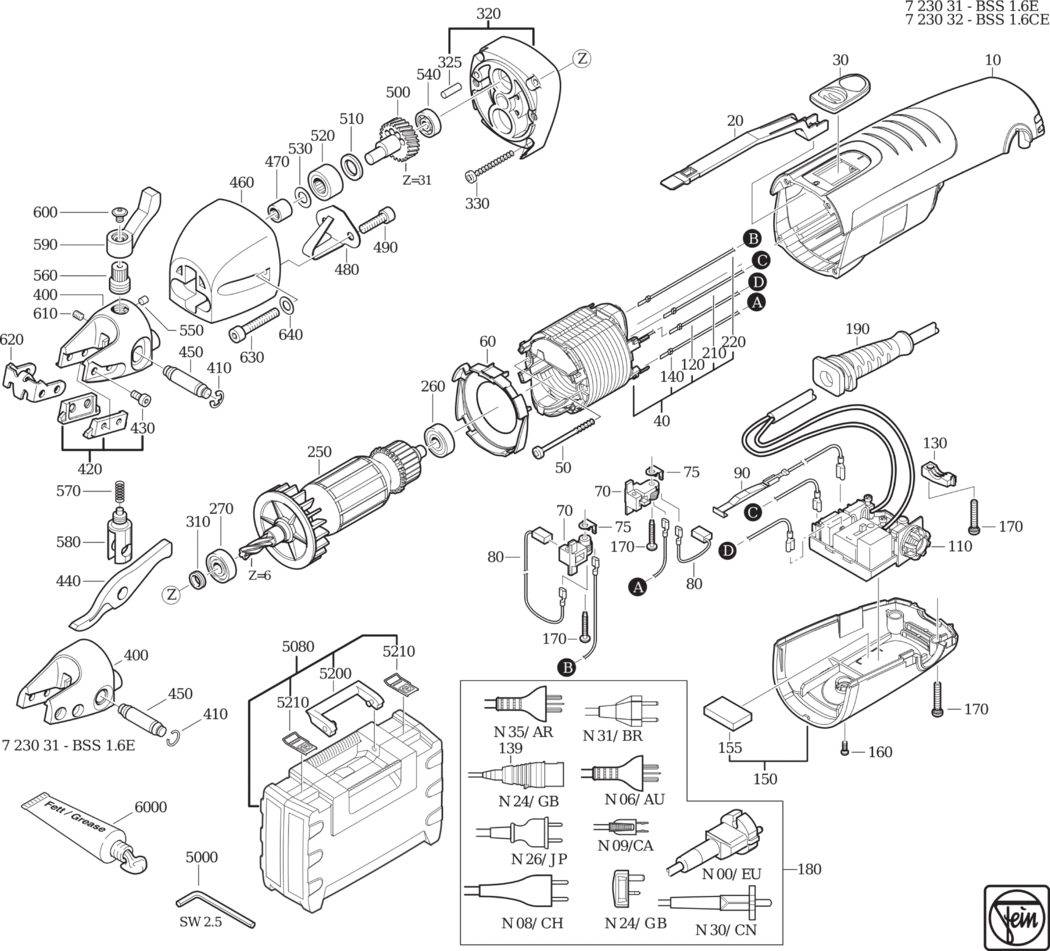

An exploded diagram and spare parts listing for the Fein BSS 1.6 CE (50/60Hz 220/230V) / 72303200230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A31 31901172000	-
20 - CONTROL ROD FEI-32816066000.A34 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A28 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A12 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A8 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A19 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A102 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A24 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A2 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A6 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A47 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A44 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A21 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A7 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A47 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A41 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A12 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A66 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A29 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A20 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A43 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A8 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A5 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A61 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A8 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A28 32612125000	£2.39	£2.87
320 - FLANGE FEI-31506394010.A4 31506394010	-
325 - PIN FEI-40242006007.A30 40242006007	-
330 - SCREW FEI-43074004000.A39 43074004000	£1.60	£1.92
400 - TOOL HEAD FEI-31308159006.A2 31308159006	-
410 - CIRCLIP FEI-42634010006.A18 42634010006	£1.60	£1.92
420 - CUTTING BARS FEI-31308153020.A2 31308153020	£114.63	£137.56
430 - CYLINDER HEAD SCREW FEI-43033090040.A4 43033090040	-
440 - CUTTING BLADE FEI-31308150009.A9 31308150009	£106.55	£127.86
450 - BOLT FEI-31308156000.A6 31308156000	-
460 - HOUSING FEI-31308154003.A2 31308154003	-
470 - NEEDLE SLEEVE FEI-41705006006.A35 41705006006	£7.31	£8.77
480 - LEAF SPRING FEI-31308157004.A5 31308157004	£16.74	£20.09
490 - CYLINDER HEAD SCREW FEI-43035019059.A9 43035019059	-
500 - ECCENTRIC SHAFT FEI-31308158011.A6 31308158011	-
510 - SHIM FEI-32408385001.A4 32408385001	-
520 - ROLLER FEI-41724003002.A3 41724003002	-
530 - SHIM FEI-32408386004.A7 32408386004	-
540 - GROOVED BALL BEARING FEI-41701202018.A115 41701202018	£6.92	£8.30
550 - PRESSURE PIECE FEI-31308160008.A2 31308160008	-
560 - KNURLED SCREW FEI-31308161007.A2 31308161007	-
570 - SPIRAL SPRING FEI-30901350000.A0 30901350000	-
580 - SHIFT FORK FEI-31308162000.A2 31308162000	-
590 - HANDLE FEI-31308163004.A2 31308163004	-
600 - FILLISTER HEAD SCREW FEI-31308164002.A2 31308164002	-
610 - SET SCREW FEI-43045028046.A7 43045028046	£1.60	£1.92
620 - HAND GUARD FEI-31308165006.A2 31308165006	£53.94	£64.73
630 - CYLINDER HEAD SCREW FEI-43035016053.A4 43035016053	-
640 - SPRING WASHER FEI-42445002053.A0 42445002053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A10 62907015008	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A37 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A53 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A39 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A49 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A341 34130054061	-
