Fein BSS 1.6 C (50/60Hz 220/230V) / 72302800235 Spare Parts

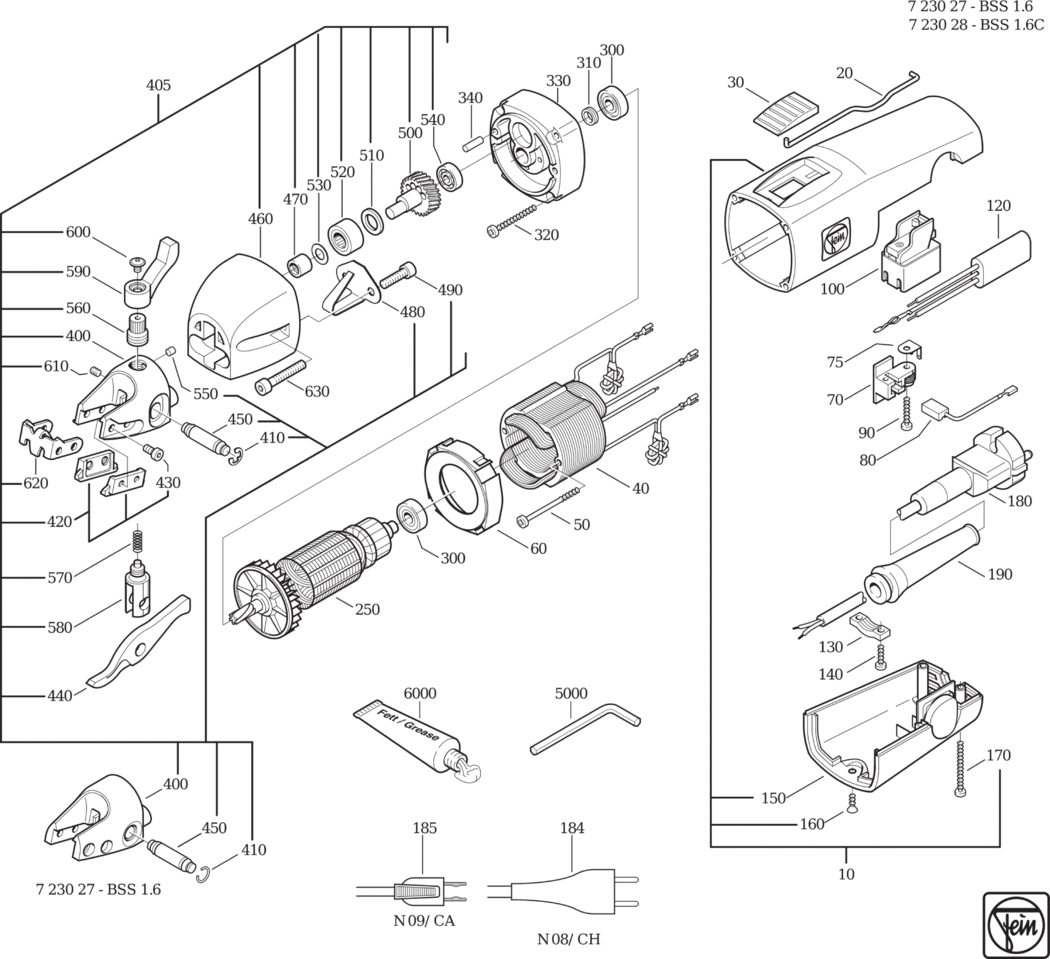

An exploded diagram and spare parts listing for the Fein BSS 1.6 C (50/60Hz 220/230V) / 72302800235

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A31 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A22 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A43 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A1 51272004235	-
50 - SCREW FEI-43070014000.A33 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A40 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A104 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A22 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A20 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A33 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A48 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A27 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A98 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A89 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A25 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A7 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A10 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A30 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A11 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A1 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001172.A29 41701001172	£9.63	£11.56
310 - SEALING RING FEI-32612125000.A30 32612125000	£2.39	£2.87
320 - SCREW FEI-43070026006.A9 43070026006	-
330 - INTERMEDIATE GEAR BOX FEI-31506351000.A6 31506351000	£107.59	£129.11
340 - PIN FEI-40242006007.A28 40242006007	-
400 - TOOL HEAD FEI-31308159006.A0 31308159006	-
405 - TOOL HEAD FEI-31308159015.A1 31308159015	-
410 - CIRCLIP FEI-42634010006.A20 42634010006	£1.60	£1.92
420 - CUTTING BARS FEI-31308153020.A4 31308153020	£114.63	£137.56
430 - CYLINDER HEAD SCREW FEI-43033090040.A2 43033090040	-
440 - CUTTING BLADE FEI-31308150009.A7 31308150009	£106.55	£127.86
450 - BOLT FEI-31308156000.A8 31308156000	-
460 - HOUSING FEI-31308154003.A0 31308154003	-
470 - NEEDLE SLEEVE FEI-41705006006.A36 41705006006	£7.31	£8.77
480 - LEAF SPRING FEI-31308157004.A3 31308157004	£16.74	£20.09
490 - CYLINDER HEAD SCREW FEI-43035019059.A7 43035019059	-
500 - ECCENTRIC SHAFT FEI-31308158011.A8 31308158011	-
510 - SHIM FEI-32408385001.A3 32408385001	-
520 - ROLLER FEI-41724003002.A2 41724003002	-
530 - SHIM FEI-32408386004.A8 32408386004	-
540 - GROOVED BALL BEARING FEI-41701202018.A114 41701202018	£6.92	£8.30
550 - PRESSURE PIECE FEI-31308160008.A0 31308160008	-
560 - KNURLED SCREW FEI-31308161007.A4 31308161007	-
570 - SPIRAL SPRING FEI-30901350000.A2 30901350000	-
580 - SHIFT FORK FEI-31308162000.A0 31308162000	-
590 - HANDLE FEI-31308163004.A4 31308163004	-
600 - FILLISTER HEAD SCREW FEI-31308164002.A0 31308164002	-
610 - SET SCREW FEI-43045028046.A6 43045028046	£1.60	£1.92
620 - HAND GUARD FEI-31308165006.A4 31308165006	£53.94	£64.73
630 - CYLINDER HEAD SCREW FEI-43035016053.A6 43035016053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A12 62907015008	£3.29	£3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A8 32160003061	-
9000 - OPERATING INSTRUCTIONS BSS FEI-34101111060.A6 34101111060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A338 34130054061	-
