Fein BLS 4.2 (50Hz 230V) / 72302424230 Spare Parts

Fein BLS 4.2 ⡐Hz 230V) / 72302424230 Spare Parts

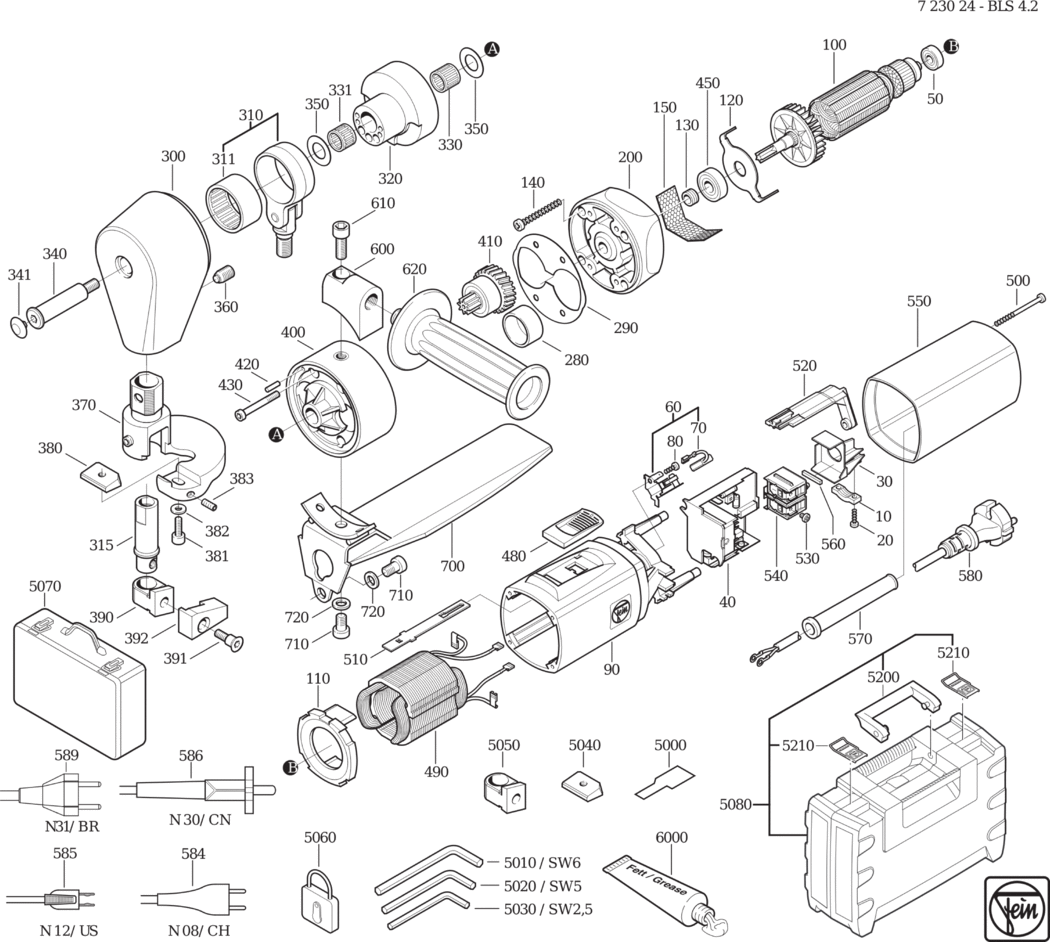

An exploded diagram and spare parts listing for the Fein BLS 4.2 (50Hz 230V) / 72302424230

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A178 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A11 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A14 32431040006	£2.78	£3.33
40 - ELECTRONICS FEI-30762206997.A3 30762206997	£103.19	£123.83
50 - GROOVED BALL BEARING FEI-41701001172.A118 41701001172	£9.63	£11.56
60 - BRUSH HOLDER FEI-30712088013.A35 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A36 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A124 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A7 31901114014	£46.03	£55.24
100 - ARMATURE 50/60HZ230V FEI-53273002236.A4 53273002236	£163.59	£196.31
110 - AIR GUIDE RING FEI-31428118007.A51 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A52 32416098005	£1.60	£1.92
130 - SEALING RING FEI-32612123008.A5 32612123008	£27.57	£33.08
140 - SCREW FEI-43070007002.A127 43070007002	£1.60	£1.92
150 - PROTECTIVE GRILLE FEI-32901046006.A12 32901046006	£7.17	£8.60
200 - INTERMEDIATE GEAR BOX FEI-31506352003.A10 31506352003	£69.88	£83.86
280 - PLUG FEI-31420110009.A3 31420110009	-
290 - SEAL FEI-30610030004.A10 30610030004	£4.88	£5.85
300 - HOUSING FEI-31309084002.A2 31309084002	£231.78	£278.13
310 - CON ROD FEI-31308088019.A0 31308088019	£308.40	£370.08
311 - NEEDLE SLEEVE FEI-41705031001.A1 41705031001	£38.51	£46.21
315 - PLUNGER FEI-31308094000.A3 31308094000	-
320 - HOLLOW WHEEL FEI-31308089004.A3 31308089004	£530.94	£637.13
330 - NEEDLE CAGE FEI-41715047005.A10 41715047005	£32.70	£39.24
331 - NEEDLE CAGE FEI-41715043006.A16 41715043006	£25.42	£30.51
340 - SHAFT FEI-31309089005.A7 31309089005	£84.76	£101.71
341 - CAP FEI-31309103001.A2 31309103001	£1.60	£1.92
350 - DISC FEI-31309090007.A6 31309090007	£1.60	£1.92
360 - BOLT FEI-31308090006.A1 31308090006	£44.09	£52.91
370 - CUTTING TABLE FEI-31308091014.A2 31308091014	£108.05	£129.66
380 - FIXED BLADE FEI-31308092008.A1 31308092008	£98.67	£118.40
381 - CYLINDER HEAD SCREW FEI-43035130062.A0 43035130062	£1.60	£1.92
382 - DISC FEI-42401018069.A42 42401018069	£1.60	£1.92
383 - SET SCREW FEI-43058005056.A10 43058005056	-
390 - PLUNGER BLADE FEI-31308096007.A0 31308096007	£157.89	£189.47
391 - SCREW FEI-33024067007.A2 33024067007	£36.28	£43.53
392 - PRESSURE PIECE FEI-32423004005.A2 32423004005	£57.27	£68.72
400 - INTERMEDIATE GEAR BOX FEI-31309085006.A0 31309085006	£260.64	£312.77
410 - GEAR-WHEEL FEI-31309086018.A10 31309086018	£283.12	£339.75
420 - PIN FEI-40242053007.A13 40242053007	£1.60	£1.92
430 - CYLINDER HEAD SCREW FEI-43064019053.A0 43064019053	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701210224.A6 41701210224	£15.09	£18.11
480 - SLIDE SWITCH FEI-32805156008.A36 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A25 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A1 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A31 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A43 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A13 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A84 30701285000	£17.50	£21.00
550 - COVER FEI-31201100009.A9 31201100009	£9.43	£11.32
560 - PRESSURE PIECE FEI-31415082004.A55 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A85 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707348014.A1 30707348014	£29.30	£35.16
600 - HOLDER FEI-30240193002.A0 30240193002	£35.46	£42.55
610 - CYLINDER HEAD SCREW M8X22 FEI-43035074085.A8 43035074085	£1.60	£1.92
700 - HAND GUARD FEI-30229300001.A0 30229300001	£151.10	£181.32
710 - CYLINDER HEAD SCREW FEI-43033046087.A10 43033046087	£1.60	£1.92
720 - DISC FEI-42401019085.A9 42401019085	£1.60	£1.92
5080 - TOOL CASE FEI-33901118010.A11 33901118010	£68.67	£82.40
6000 - LUBRICANT TUBE 0 080KG FEI-32160003182.A12 32160003182	-
