Fein BLS 3.5 (60Hz 220V) / 72302300626 Spare Parts

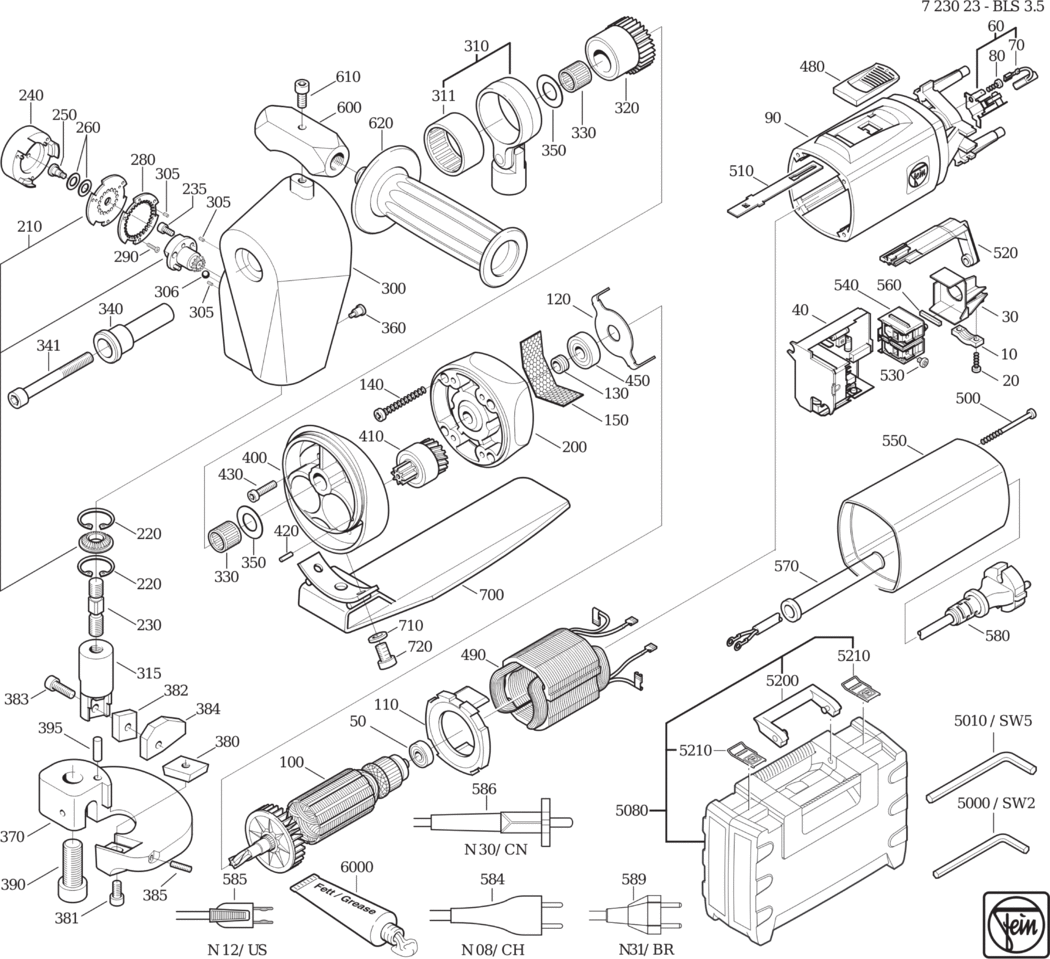

An exploded diagram and spare parts listing for the Fein BLS 3.5 (60Hz 220V) / 72302300626

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A9 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A116 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A25 32431040006	£2.78	£3.33
40 - ELECTRONICS FEI-30762224998.A3 30762224998	£106.36	£127.63
50 - GROOVED BALL BEARING FEI-41701001260.A109 41701001260	£7.11	£8.53
60 - BRUSH HOLDER FEI-30712088013.A9 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A5 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A39 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A32 31901114014	£46.03	£55.24
100 - ARMATURE 50/60HZ230V FEI-53273002236.A0 53273002236	£163.59	£196.31
110 - AIR GUIDE RING FEI-31428118007.A15 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A93 32416098005	£1.60	£1.92
130 - SEALING RING FEI-32612123008.A9 32612123008	£27.57	£33.08
140 - SCREW FEI-43070007002.A39 43070007002	£1.60	£1.92
150 - PROTECTIVE GRILLE FEI-32901046006.A2 32901046006	£7.17	£8.60
200 - INTERMEDIATE GEAR BOX FEI-31506352003.A3 31506352003	£69.88	£83.86
210 - ADJUSTING RING FEI-31308148012.A0 31308148012	-
220 - CIRCLIP FEI-42644016005.A2 42644016005	-
230 - BOLT FEI-31308133007.A2 31308133007	-
235 - CYLINDER HEAD SCREW FEI-43035004041.A3 43035004041	£1.60	£1.92
240 - ROTARY KNOB FEI-31308140000.A2 31308140000	£35.31	£42.37
250 - THREAD BOLT FEI-31308139008.A0 31308139008	-
260 - DISC FEI-31308142002.A0 31308142002	-
280 - HOLLOW WHEEL FEI-31308125000.A0 31308125000	-
290 - SCREW FEI-43070025003.A2 43070025003	-
300 - HOUSING FEI-31308131000.A2 31308131000	-
305 - CLAMPING SLEEVE FEI-40238071002.A0 40238071002	-
306 - BALL FEI-31308132003.A0 31308132003	-
310 - CON ROD FEI-31308129018.A2 31308129018	-
311 - NEEDLE SLEEVE FEI-41705031001.A12 41705031001	£38.51	£46.21
315 - PLUNGER FEI-31308135009.A0 31308135009	-
320 - SLEEVE FEI-31308128014.A0 31308128014	-
330 - NEEDLE CAGE FEI-41715048003.A0 41715048003	-
340 - SHAFT FEI-31308130001.A0 31308130001	-
341 - CYLINDER HEAD SCREW FEI-43035141082.A0 43035141082	-
350 - DISC FEI-31309090007.A1 31309090007	£1.60	£1.92
360 - NIPPLE FEI-32131001002.A18 32131001002	£2.68	£3.21
370 - CUTTING TABLE FEI-31308137006.A0 31308137006	-
380 - FIXED BLADE FEI-31308136002.A2 31308136002	£82.73	£99.28
381 - CYLINDER HEAD SCREW FEI-43035029061.A8 43035029061	£1.60	£1.92
382 - PLUNGER BLADE FEI-31308146001.A2 31308146001	£83.83	£100.60
383 - CYLINDER HEAD SCREW FEI-43035110064.A0 43035110064	-
384 - PRESSURE PIECE FEI-32423006002.A0 32423006002	£59.34	£71.21
385 - SET SCREW FEI-43058020040.A0 43058020040	-
390 - CYLINDER HEAD SCREW FEI-31308138004.A2 31308138004	-
395 - PIN FEI-40242046003.A4 40242046003	-
400 - INTERMEDIATE GEAR BOX FEI-31308124006.A2 31308124006	-
410 - GEAR-WHEEL FEI-31308127016.A2 31308127016	-
420 - PIN FEI-40242053007.A2 40242053007	£1.60	£1.92
430 - CYLINDER HEAD SCREW FEI-43064022057.A0 43064022057	-
450 - GROOVED BALL BEARING FEI-41701210224.A20 41701210224	£15.09	£18.11
480 - SLIDE SWITCH FEI-32805156008.A13 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A14 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A31 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A19 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A13 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A132 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A38 30701285000	£17.50	£21.00
550 - COVER FEI-31201100009.A19 31201100009	£9.43	£11.32
560 - PRESSURE PIECE FEI-31415082004.A14 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A4 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707386018.A7 30707386018	£24.62	£29.55
600 - HOLDER FEI-30240234002.A1 30240234002	£41.98	£50.38
610 - CYLINDER HEAD SCREW FEI-43035089065.A2 43035089065	-
620 - SIDE HANDLE FEI-32119032002.A3 32119032002	£12.89	£15.47
700 - HAND GUARD FEI-30229306002.A1 30229306002	-
710 - DISC FEI-42401018069.A10 42401018069	£1.60	£1.92
720 - CYLINDER HEAD SCREW FEI-43033083066.A3 43033083066	£1.60	£1.92
5000 - ALLEN KEY SW2 FEI-62907029006.A17 62907029006	£3.29	£3.95
5010 - ALLEN KEY SW5 FEI-62907035006.A1 62907035006	-
5080 - TOOL CASE FEI-33901118010.A19 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A4 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A91 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A267 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A160 34130054061	-
