Fein BLS 2.5 E (50/60Hz 220/230V) / 72303500230 Spare Parts

Fein BLS 2.5 E ⡐/60Hz 220/230V) / 72303500230 Spare Parts

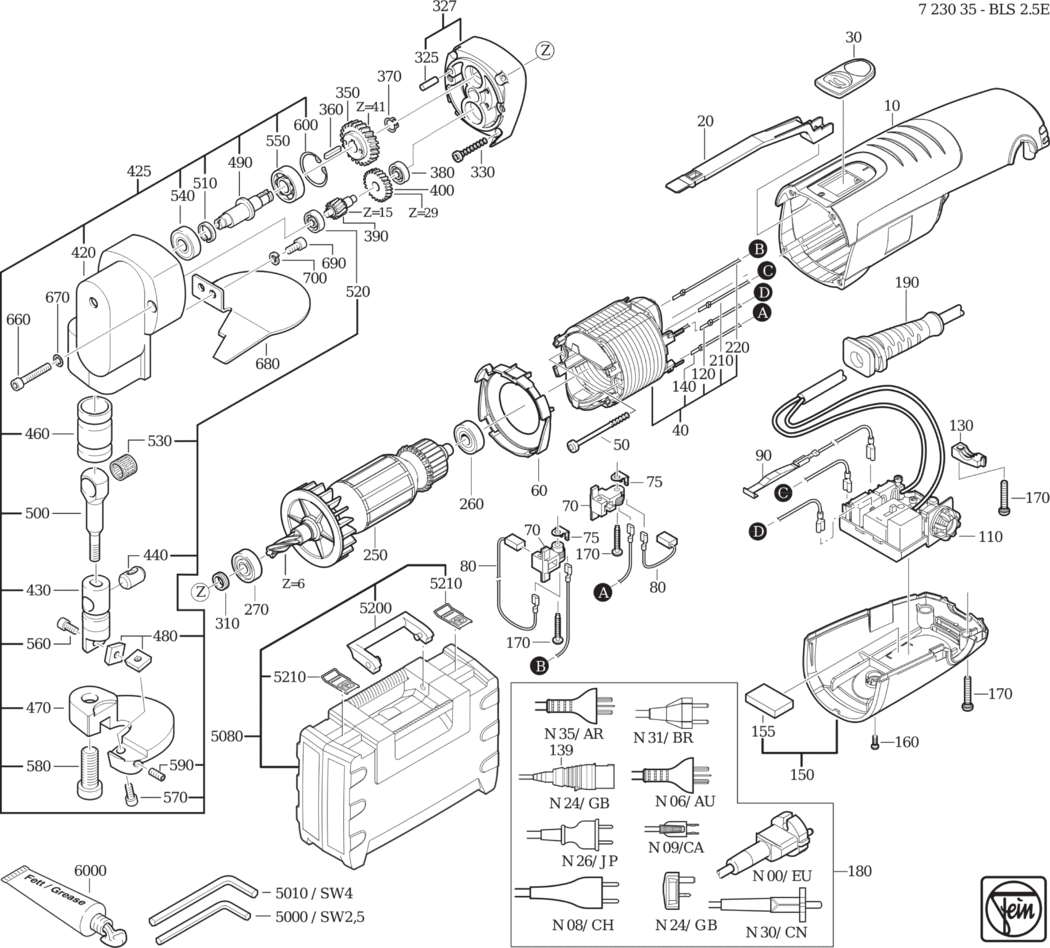

An exploded diagram and spare parts listing for the Fein BLS 2.5 E (50/60Hz 220/230V) / 72303500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A27 31901172000	-
20 - CONTROL ROD FEI-32816066000.A40 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A33 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A11 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A6 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A16 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A94 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A32 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A6 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A14 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A42 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A41 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A23 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A10 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A40 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A48 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A10 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A68 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A28 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A14 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A40 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A11 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A3 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A55 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A9 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A20 32612125000	£2.39	£2.87
325 - PIN FEI-40242006007.A33 40242006007	-
327 - FLANGE FEI-31506398010.A0 31506398010	-
330 - SCREW FEI-43074004000.A40 43074004000	£1.60	£1.92
350 - GEAR-WHEEL FEI-33657105002.A3 33657105002	£63.77	£76.52
360 - FEATHER KEY FEI-40221003006.A37 40221003006	£1.60	£1.92
370 - CIRCLIP FEI-42616034007.A5 42616034007	-
380 - GROOVED BALL BEARING FEI-41701202018.A128 41701202018	£6.92	£8.30
390 - SHAFT TOOTHED Z=15 FEI-33757014007.A1 33757014007	-
400 - GEAR-WHEEL FEI-33657167003.A5 33657167003	£37.45	£44.94
420 - HOUSING FEI-31308076009.A1 31308076009	£158.25	£189.90
425 - TOOL HEAD FEI-31308076018.A5 31308076018	£702.92	£843.51
430 - PLUNGER FEI-31308077003.A1 31308077003	£199.02	£238.83
440 - BOLT FEI-31308078001.A5 31308078001	£74.24	£89.09
460 - SLEEVE FEI-31308079005.A1 31308079005	£59.70	£71.64
470 - CUTTING TABLE FEI-30109138008.A2 30109138008	-
480 - PLUNGER BLADE AND FIXED BLADE FEI-63601101009.A3 63601101009	£39.24	£47.09
490 - ECCENTRIC SHAFT FEI-33405027006.A3 33405027006	-
500 - CON ROD FEI-31308080007.A5 31308080007	£102.50	£123.00
510 - RING FEI-32601225003.A3 32601225003	£10.12	£12.15
520 - GROOVED BALL BEARING FEI-41701202018.A127 41701202018	£6.92	£8.30
530 - NEEDLE CAGE FEI-41715032003.A4 41715032003	-
540 - GROOVED BALL BEARING FEI-41701006028.A13 41701006028	£14.07	£16.88
550 - GROOVED BALL BEARING FEI-41701007038.A8 41701007038	£10.17	£12.20
560 - CYLINDER HEAD SCREW FEI-43035013058.A9 43035013058	£1.60	£1.92
570 - CYLINDER HEAD SCREW FEI-43035014056.A9 43035014056	£1.60	£1.92
580 - CYLINDER HEAD SCREW FEI-43013042127.A6 43013042127	£11.53	£13.84
590 - SET SCREW FEI-43045044051.A5 43045044051	£1.60	£1.92
600 - CIRCLIP FEI-42616001005.A7 42616001005	£1.60	£1.92
660 - CYLINDER HEAD SCREW FEI-43033015052.A31 43033015052	£1.60	£1.92
670 - SPRING WASHER FEI-42445002053.A7 42445002053	-
680 - HAND GUARD BF29-159 FEI-30229159001.A2 30229159001	-
690 - CYLINDER HEAD SCREW FEI-43035013058.A12 43035013058	£1.60	£1.92
700 - SPRING WASHER FEI-42445002053.A6 42445002053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A15 62907015008	£3.29	£3.95
5010 - ALLEN KEY SW4 FEI-62907023005.A2 62907023005	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A33 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A55 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A37 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A57 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A348 34130054061	-
