Fein BLS 2.5 (50/60Hz 220/230V) / 72302600233 Spare Parts

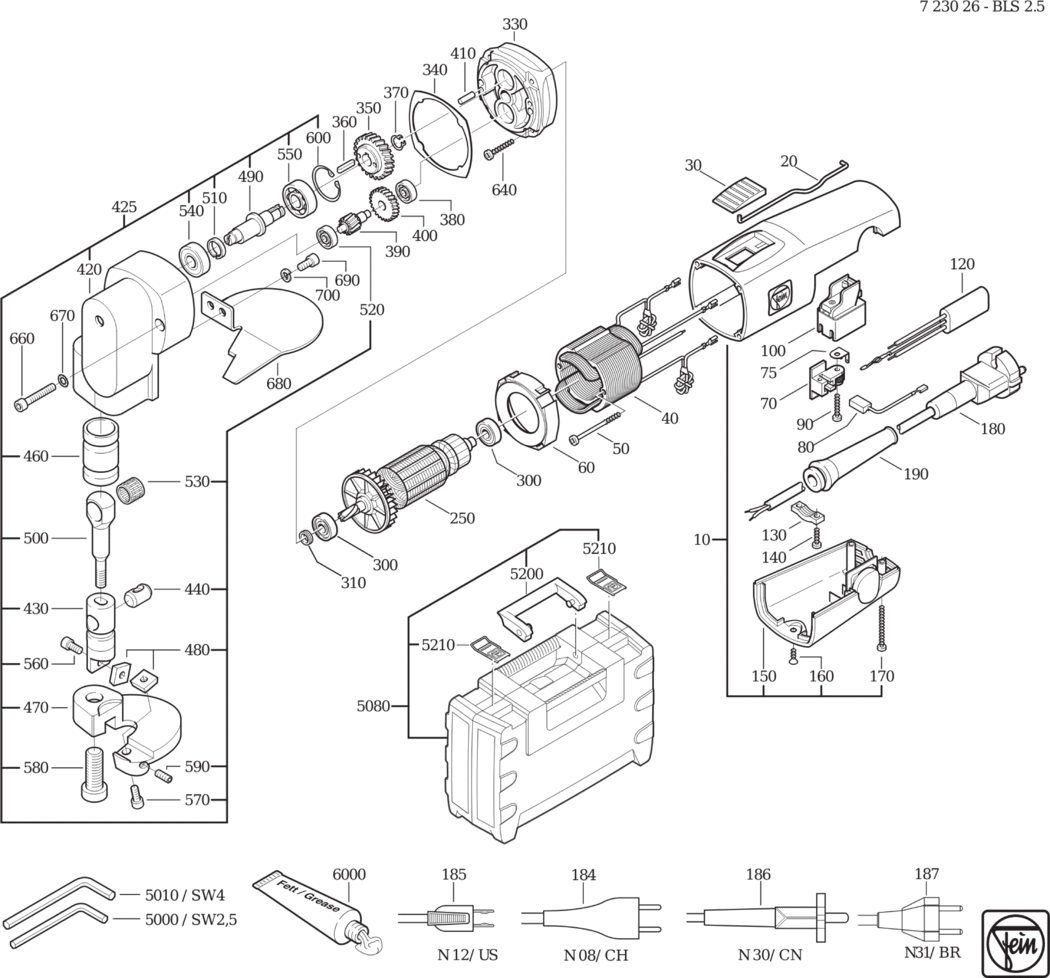

An exploded diagram and spare parts listing for the Fein BLS 2.5 (50/60Hz 220/230V) / 72302600233

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A29 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A16 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A5 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A9 51272004235	-
50 - SCREW FEI-43070014000.A70 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A28 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A26 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A92 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A39 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A13 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A20 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A5 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A54 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A48 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A11 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A20 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A31 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A10 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A32 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A11 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001172.A212 41701001172	£9.63	£11.56
310 - SEALING RING FEI-32612125000.A48 32612125000	£2.39	£2.87
330 - INTERMEDIATE GEAR BOX FEI-31506353007.A1 31506353007	£81.77	£98.13
340 - SEAL FEI-30610033000.A0 30610033000	£1.60	£1.92
350 - GEAR-WHEEL FEI-33657105002.A1 33657105002	£63.77	£76.52
360 - FEATHER KEY FEI-40221003006.A62 40221003006	£1.60	£1.92
370 - CIRCLIP FEI-42616034007.A2 42616034007	-
380 - GROOVED BALL BEARING FEI-41701202018.A51 41701202018	£6.92	£8.30
390 - SHAFT TOOTHED Z=15 FEI-33757014007.A6 33757014007	-
400 - GEAR-WHEEL FEI-33657167003.A1 33657167003	£37.45	£44.94
410 - PIN FEI-40242006007.A57 40242006007	-
420 - HOUSING FEI-31308076009.A5 31308076009	£158.25	£189.90
425 - TOOL HEAD FEI-31308076018.A1 31308076018	£702.92	£843.51
430 - PLUNGER FEI-31308077003.A5 31308077003	£199.02	£238.83
440 - BOLT FEI-31308078001.A1 31308078001	£74.24	£89.09
460 - SLEEVE FEI-31308079005.A5 31308079005	£59.70	£71.64
470 - CUTTING TABLE FEI-30109138008.A5 30109138008	-
480 - PLUNGER BLADE AND FIXED BLADE FEI-63601101009.A0 63601101009	£39.24	£47.09
490 - ECCENTRIC SHAFT FEI-33405027006.A1 33405027006	-
500 - CON ROD FEI-31308080007.A0 31308080007	£102.50	£123.00
510 - RING FEI-32601225003.A6 32601225003	£10.12	£12.15
520 - GROOVED BALL BEARING FEI-41701202018.A50 41701202018	£6.92	£8.30
530 - NEEDLE CAGE FEI-41715032003.A0 41715032003	-
540 - GROOVED BALL BEARING FEI-41701006028.A2 41701006028	£14.07	£16.88
550 - GROOVED BALL BEARING FEI-41701007038.A60 41701007038	£10.17	£12.20
560 - CYLINDER HEAD SCREW FEI-43035013058.A66 43035013058	£1.60	£1.92
570 - CYLINDER HEAD SCREW FEI-43035014056.A3 43035014056	£1.60	£1.92
580 - CYLINDER HEAD SCREW FEI-43013042127.A0 43013042127	£11.53	£13.84
590 - SET SCREW FEI-43045044051.A6 43045044051	£1.60	£1.92
600 - CIRCLIP FEI-42616001005.A33 42616001005	£1.60	£1.92
640 - SCREW FEI-43070026006.A10 43070026006	-
660 - CYLINDER HEAD SCREW FEI-43033015052.A15 43033015052	£1.60	£1.92
670 - SEALING RING FEI-40611001002.A31 40611001002	£1.60	£1.92
680 - HAND GUARD BF29-159 FEI-30229159001.A6 30229159001	-
690 - CYLINDER HEAD SCREW FEI-43035013058.A67 43035013058	£1.60	£1.92
700 - SPRING WASHER FEI-42445002053.A30 42445002053	-
5000 - ALLEN KEY SW2.5 FEI-62907015008.A2 62907015008	£3.29	£3.95
5010 - ALLEN KEY SW4 FEI-62907023005.A8 62907023005	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A4 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A78 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A155 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A8 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A545 34130054061	-
