Fein BLS 1.6 X (60Hz 220V) / 72302900629 Spare Parts

Fein BLS 1.6 X ⡠Hz 220V) / 72302900629 Spare Parts

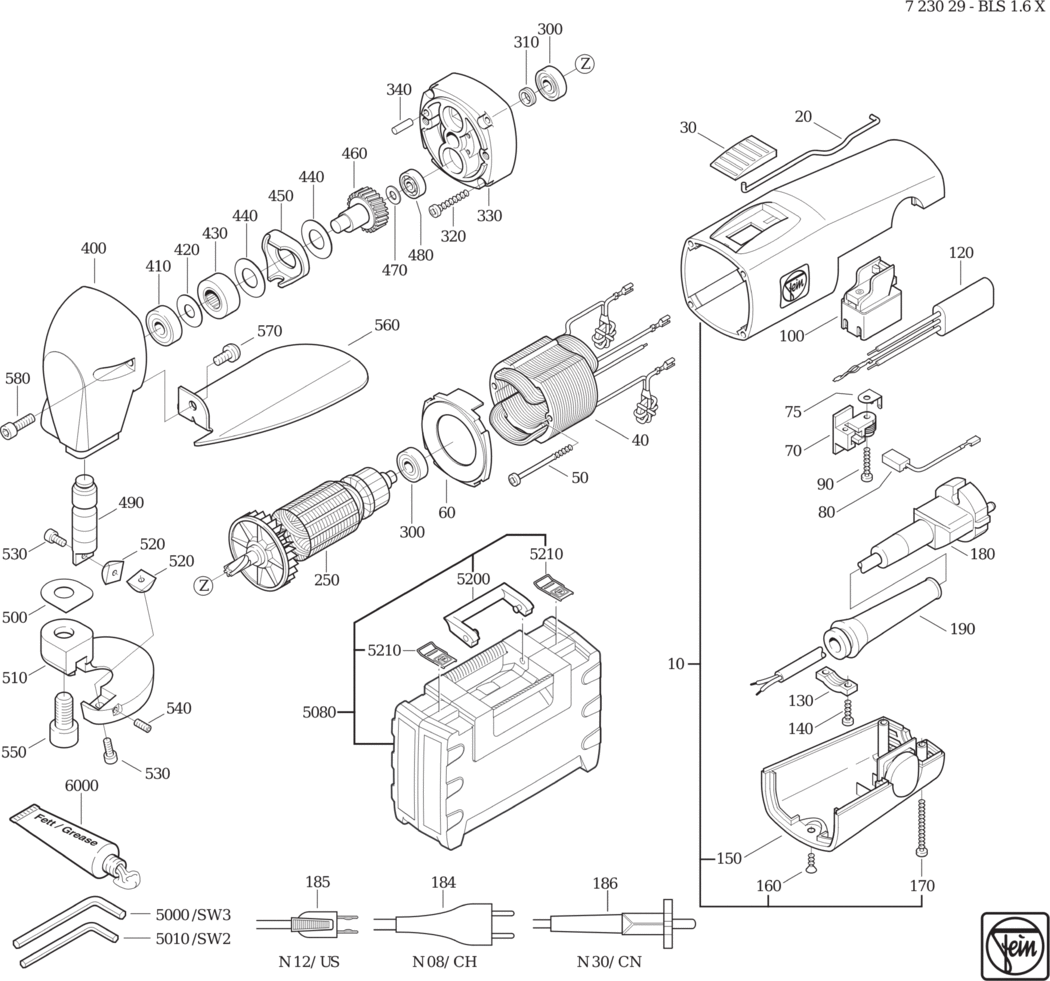

An exploded diagram and spare parts listing for the Fein BLS 1.6 X (60Hz 220V) / 72302900629

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A34 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A19 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A8 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A7 51272004235	-
50 - SCREW FEI-43070014000.A65 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A23 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A30 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A88 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A33 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A18 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A22 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A11 30722178016	£15.82	£18.98
130 - CABLE CLAMPING PIECE FEI-32431026009.A50 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A53 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A9 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A17 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A25 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A9 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A39 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A8 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001257.A6 41701001257	£11.35	£13.62
310 - SEALING RING FEI-32612125000.A54 32612125000	£2.39	£2.87
320 - SCREW FEI-43070026006.A13 43070026006	-
330 - INTERMEDIATE GEAR BOX FEI-31506351000.A1 31506351000	£107.59	£129.11
340 - PIN FEI-40242006007.A60 40242006007	-
400 - HOUSING FEI-31308167003.A6 31308167003	£188.89	£226.67
410 - GROOVED BALL BEARING FEI-41701004021.A6 41701004021	£11.73	£14.08
420 - SHIM FEI-31308177002.A6 31308177002	£1.60	£1.92
430 - ROLLER FEI-41724001005.A14 41724001005	£40.15	£48.18
440 - SHIM FEI-31308178000.A6 31308178000	£1.60	£1.92
450 - HOLDER FEI-31308168001.A2 31308168001	£18.55	£22.26
460 - ECCENTRIC SHAFT FEI-31308169014.A6 31308169014	£115.51	£138.61
470 - DISC FEI-31308170007.A2 31308170007	£1.60	£1.92
480 - GROOVED BALL BEARING FEI-41701202018.A57 41701202018	£6.92	£8.30
490 - PLUNGER FEI-31308171006.A6 31308171006	£62.25	£74.70
500 - DISC FEI-31308173003.A6 31308173003	-
500 - DISC FEI-31308172009.A2 31308172009	£2.32	£2.79
500 - DISC FEI-31308174001.A2 31308174001	£2.52	£3.02
510 - CUTTING TABLE FEI-31308175005.A6 31308175005	-
520 - PLUNGER BLADE AND FIXED BLADE FEI-31308072000.A4 31308072000	£48.11	£57.73
530 - CYLINDER HEAD SCREW FEI-43035004041.A15 43035004041	£1.60	£1.92
540 - SET SCREW FEI-43058013047.A2 43058013047	-
550 - CYLINDER HEAD SCREW FEI-43035123102.A8 43035123102	£3.11	£3.73
560 - HAND GUARD FEI-31308176008.A2 31308176008	£57.82	£69.39
570 - FILLISTER HEAD SCREW FEI-43064017051.A6 43064017051	-
580 - CYLINDER HEAD SCREW FEI-43035016053.A17 43035016053	-
5000 - ALLEN KEY SW3 FEI-62907013006.A5 62907013006	£3.29	£3.95
5010 - ALLEN KEY SW2 FEI-62907029006.A8 62907029006	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A5 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A79 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A156 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A20 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A544 34130054061	-
