Fein BLS 1.6 X (50/60Hz 220/230V) / 72302900231 Spare Parts

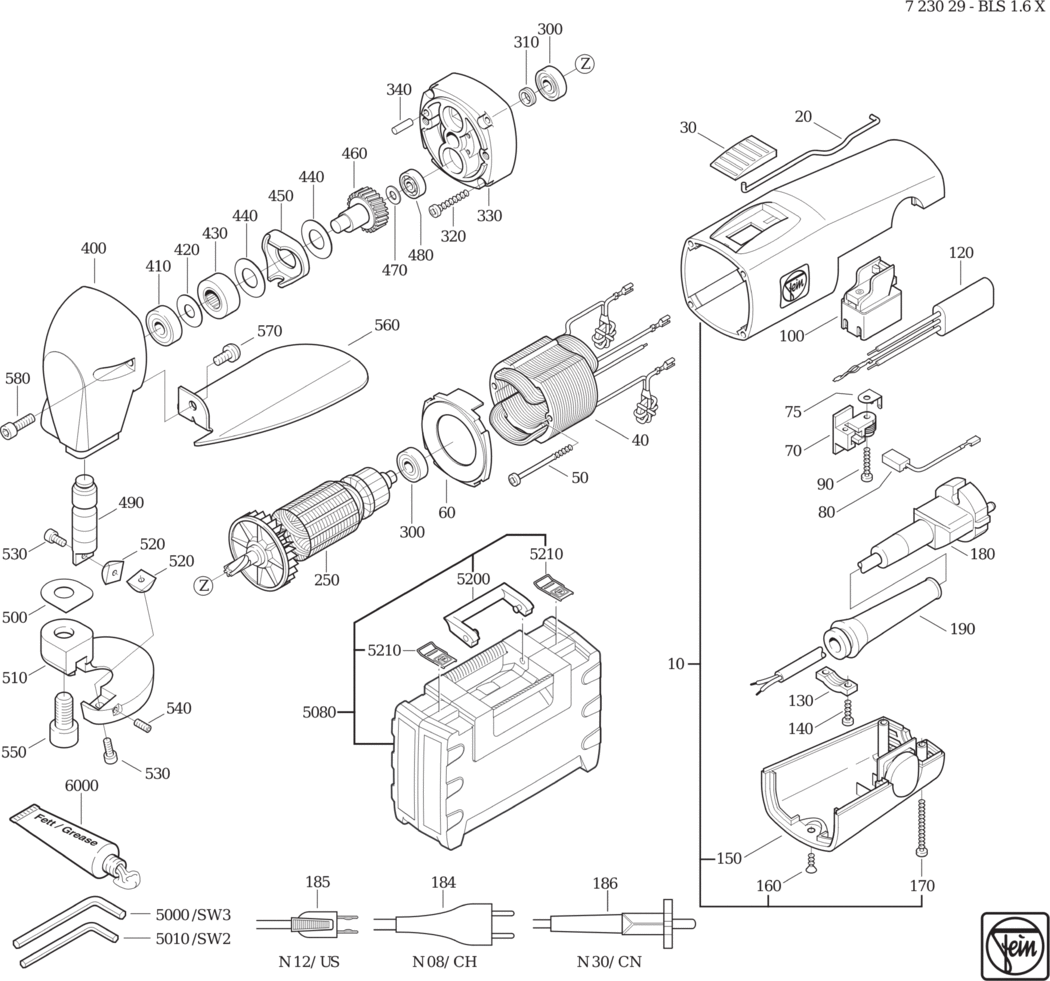

An exploded diagram and spare parts listing for the Fein BLS 1.6 X (50/60Hz 220/230V) / 72302900231

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A33 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A20 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A7 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A8 51272004235	-
50 - SCREW FEI-43070014000.A64 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A22 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A31 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A87 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A32 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A19 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A25 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A8 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A49 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A54 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A6 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A16 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A24 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A8 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A35 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A9 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001257.A5 41701001257	£11.35	£13.62
310 - SEALING RING FEI-32612125000.A56 32612125000	£2.39	£2.87
320 - SCREW FEI-43070026006.A14 43070026006	-
330 - INTERMEDIATE GEAR BOX FEI-31506351000.A3 31506351000	£107.59	£129.11
340 - PIN FEI-40242006007.A61 40242006007	-
400 - HOUSING FEI-31308167003.A3 31308167003	£188.89	£226.67
410 - GROOVED BALL BEARING FEI-41701004021.A7 41701004021	£11.73	£14.08
420 - SHIM FEI-31308177002.A2 31308177002	£1.60	£1.92
430 - ROLLER FEI-41724001005.A11 41724001005	£40.15	£48.18
440 - SHIM FEI-31308178000.A5 31308178000	£1.60	£1.92
450 - HOLDER FEI-31308168001.A5 31308168001	£18.55	£22.26
460 - ECCENTRIC SHAFT FEI-31308169014.A3 31308169014	£115.51	£138.61
470 - DISC FEI-31308170007.A5 31308170007	£1.60	£1.92
480 - GROOVED BALL BEARING FEI-41701202018.A56 41701202018	£6.92	£8.30
490 - PLUNGER FEI-31308171006.A3 31308171006	£62.25	£74.70
500 - DISC FEI-31308173003.A3 31308173003	-
500 - DISC FEI-31308172009.A5 31308172009	£2.32	£2.79
500 - DISC FEI-31308174001.A5 31308174001	£2.52	£3.02
510 - CUTTING TABLE FEI-31308175005.A3 31308175005	-
520 - PLUNGER BLADE AND FIXED BLADE FEI-31308072000.A8 31308072000	£48.11	£57.73
530 - CYLINDER HEAD SCREW FEI-43035004041.A12 43035004041	£1.60	£1.92
540 - SET SCREW FEI-43058013047.A5 43058013047	-
550 - CYLINDER HEAD SCREW FEI-43035123102.A5 43035123102	£3.11	£3.73
560 - HAND GUARD FEI-31308176008.A5 31308176008	£57.82	£69.39
570 - FILLISTER HEAD SCREW FEI-43064017051.A3 43064017051	-
580 - CYLINDER HEAD SCREW FEI-43035016053.A20 43035016053	-
5000 - ALLEN KEY SW3 FEI-62907013006.A2 62907013006	£3.29	£3.95
5010 - ALLEN KEY SW2 FEI-62907029006.A9 62907029006	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A6 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A83 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A158 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A16 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A538 34130054061	-
